Catalog Number - 9502S-02CP-K

Improve reliability and reduce bubble formation in high‑throughput workflows with a wider‑tip insert design.

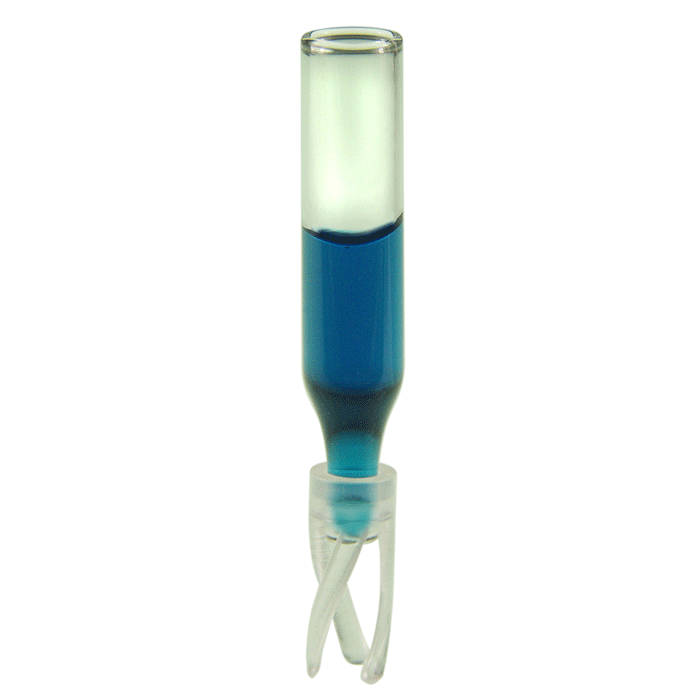

9502S‑02CP‑K inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and feature a thicker wall construction combined with a wider conical tip. This design helps minimize bubble formation at the tip, improving injection consistency and reducing variability for samples prone to gas entrapment.

The wider precision cone maintains effective sample concentration while allowing improved needle access and consistent recovery. Residual volume is approximately 2.5 µL with most autosamplers. Polypropylene springs keep the insert centered within the vial, reducing the risk of needle misalignment and insert breakage during repeated injections.

Manufactured in an ISO 9001:2015 certified facility, these inserts provide consistent quality and performance across large batches. This configuration is one of the most popular and economical borosilicate insert designs available, offering an excellent balance of durability, performance, and cost for high‑volume laboratories.

Key Benefits

• 300 µL fill volume for low‑volume workflows

• ~2.5 µL residual volume for effective recovery

• Wider conical tip minimizes bubble formation

• Thicker glass wall improves durability

• Increased injection consistency for challenging samples

• Spring‑mounted design ensures proper centering

• Reduced risk of needle damage or insert breakage

• Case format ideal for high‑throughput laboratories

Typical Applications

• HPLC and UHPLC analysis

• LC‑MS workflows

• Routine pharmaceutical testing

• Environmental and food analysis

• High‑throughput laboratories handling large sample batches

Compatibility

• Designed for 2 mL (12 × 32 mm) autosampler vials

• Compatible with:

  • 9 mm screw top caps

  • 11 mm snap top caps

Performance and Design Notes

• Wider cone geometry improves sample stability during injection

• Thicker glass enhances mechanical strength

• Comparable performance to Polyspring™ style inserts

• Consistent dimensions support automated systems

• Designed for scalable laboratory workflows

Important Notes

• Ideal for routine, high‑volume workflows

• Recommended when bubble formation is a concern

• One of the most popular and economical borosilicate insert designs

• Case format supports operational efficiency and cost savings

Additional Resources

• View Smaller Pack Quantity 9502S‑02CP Glass Inserts (100/PK) for 2 mL autosampler vials

  ---
