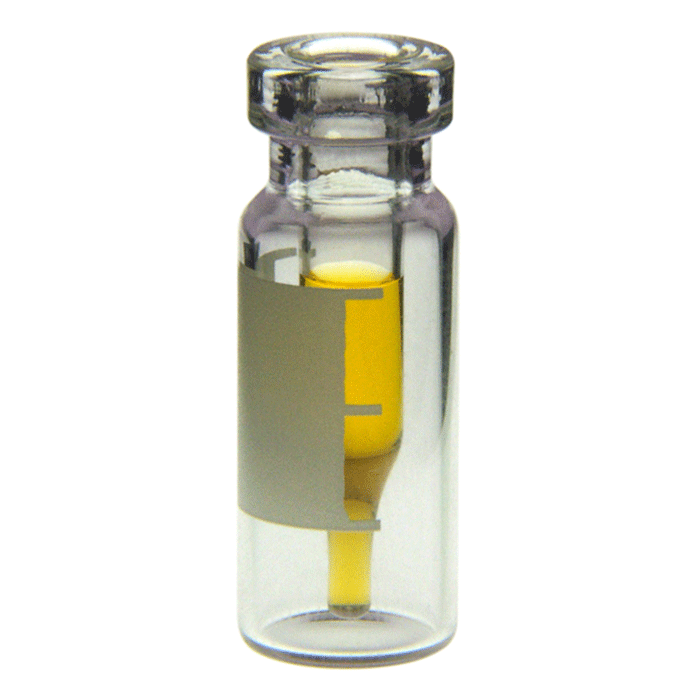

Vials, Crimp Top, Glass. Clear / Clear Insert, 300ul, with Write-On Patch and fill lines, Fused Insert Style. An 11mm Serum Finish with 12x32mm outer dimensions. For use as an autosampler vial. MICROSOLV Brand. 100/PK.
Additional Info:
Improve low‑volume sample handling and sample identification with fused insert autosampler vials designed for chromatography applications requiring excellent recovery and secure sealing. By permanently integrating the insert into the vial, these fused insert vials eliminate the need for separate inserts, reducing handling steps and helping improve workflow consistency.
9532C-0-WCV vials and inserts are manufactured from First Hydrolytic, Class A, Type N51A clear borosilicate glass for exceptional purity, chemical resistance, and durability. The fused insert provides a 300 µL total fill volume and a residual volume of approximately 3 µL for many autosampler needle configurations, helping maximize sample utilization and reduce waste. The solvent‑resistant epoxy write‑on patch and fill lines simplify sample identification, documentation, and visual volume verification while resisting smearing during normal laboratory handling and solvent exposure.
The 11 mm serum finish is designed for use with aluminum crimp caps and provides one of the most secure closure systems available for chromatography applications when properly crimped. These lower‑cost fused insert vials are ideal for HPLC, UHPLC, and LC‑MS workflows where sample recovery, convenience, and reliable sealing are critical.
Key Benefits
Integrated 300 µL fused insert eliminates separate insert handling
Approximately 3 µL residual volume for many autosampler systems
Write‑on patch improves sample identification and traceability
Fill lines provide visual volume reference
Type N51A borosilicate glass ensures purity and durability
11 mm serum finish provides secure crimp sealing
Cost‑effective alternative to separate vial and insert combinations
Typical Applications
HPLC and UHPLC analysis
LC‑MS and LC‑MS/MS workflows
Low‑volume sample testing
Pharmaceutical and bioanalytical laboratories
Routine analytical chemistry applications
Specifications
Insert Volume: 300 µL
Residual Volume: Approximately 3 µL
Closure Type: Crimp Top
Finish: 11 mm Serum Finish
Glass Type: First Hydrolytic, Class A, Type N51A Borosilicate Glass
Color: Clear vial with clear fused insert
Outer Dimensions: 12 mm × 32 mm
Write‑On Area: Solvent‑resistant epoxy patch
Fill Lines: Yes
Pack Size: 100 vials
Compatibility
Designed for 11 mm aluminum crimp caps
Compatible with standard chromatography autosamplers
Suitable for HPLC, UHPLC, and LC‑MS applications
Performance and Design Notes
Fused insert reduces sample transfer requirements
Low residual volume helps maximize sample recovery
Write‑on patch and fill lines improve laboratory organization
Secure serum finish supports reliable chromatography sealing
Important Notes
Use with 11 mm aluminum crimp caps (sold separately)
Lower‑cost fused insert design provides excellent value
Designed for low‑volume analytical applications
Ideal for laboratories seeking improved sample recovery and traceability
