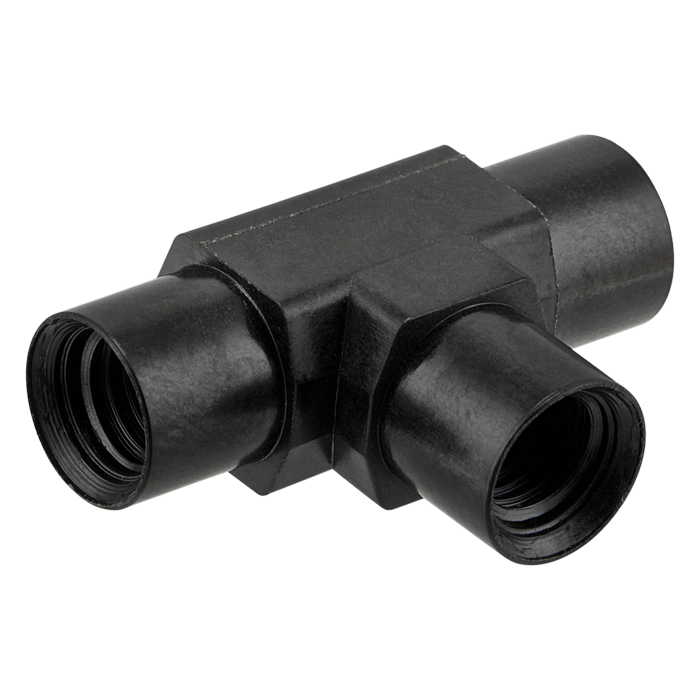

Union, Connector, Tee, low pressure, 1.0 mm / 0.040 inch through hole with 1/4-28 screw threads, Carbon PEEK Endure, Round with an Internal "T". Use with 1/16 tubing. ARE-Applied Research brand. 1 each.
Additional Info:
Low‑pressure Carbon PEEK Endure Tee unions are designed for connecting tubing in laboratory and analytical fluidic systems requiring chemically resistant, reinforced metal‑free flow path components. The 1.0 mm (0.040") through hole design and standard 1/4‑28 screw threads provide dependable tubing connections for low‑pressure applications.
The 49302‑T06 Tee union is suitable for connecting PEEK or stainless‑steel tubing with compatible fittings on all ports in low‑pressure zones of HPLC systems and related laboratory fluid handling applications.
This Tee fitting contains an internal T flow pattern commonly used to split one flow stream into two directions or combine two incoming streams into one outlet flow path.
Key Benefits
Low‑pressure Tee configuration for flow splitting or combining
Carbon PEEK Endure construction for enhanced durability
Compatible with PEEK or stainless‑steel tubing
Internal T flow pattern design
Standard 1/4‑28 screw thread compatibility
Suitable for low‑pressure HPLC applications
Ideal for laboratory flow distribution applications
Specifications
Product Type: Tee union connector
Material: Carbon PEEK Endure

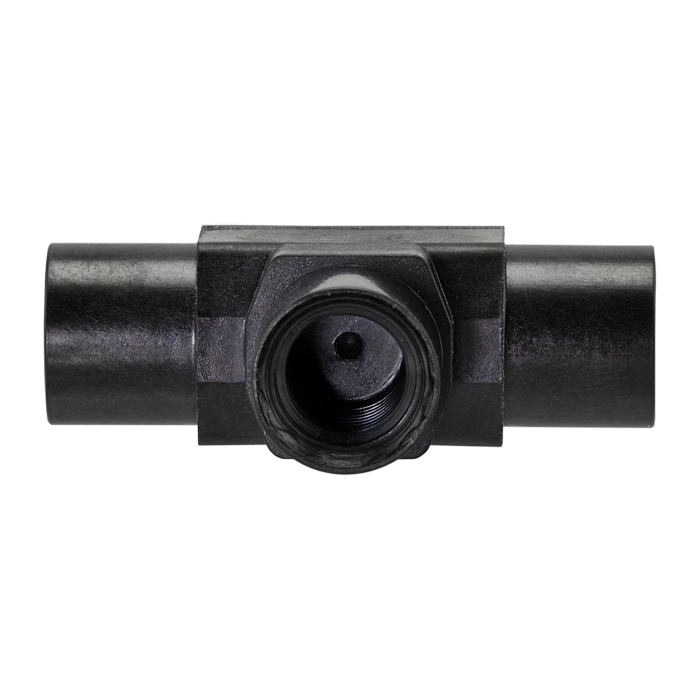

Through Hole Diameter: 1.0 mm / 0.040"

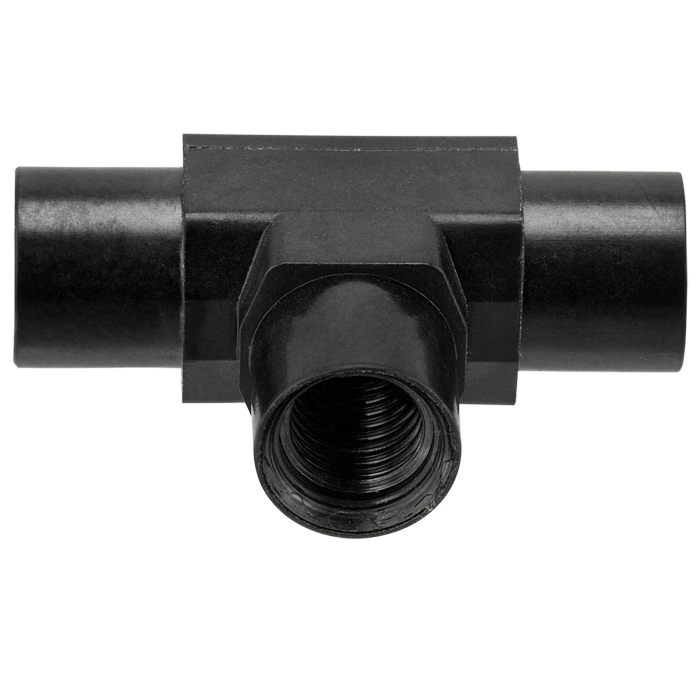

Thread: 1/4‑28
Configuration: Internal Tee (T)
Tubing Compatibility: 1/16" tubing
Dead Volume: 4.17 µL
Usage Notes
For low‑pressure fluidic applications
Designed for flow splitting or stream combining
Compatible with PEEK or stainless‑steel tubing
Suitable for laboratory HPLC systems
Not intended for high‑pressure UHPLC applications
