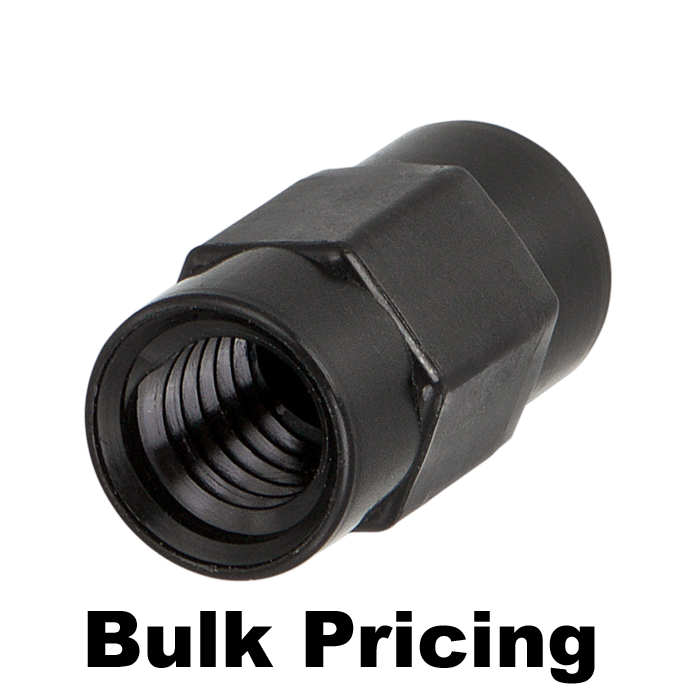

Union, Connector, low pressure, 1.0 mm / 0.040 inch through hole with M6 screw threads. Black POM Endure. Use with 1/16 inch tubing. ARE-Applied Research brand. 2/PK.
Additional Info:
Low‑pressure Black POM Endure unions are designed for connecting 1/16" tubing in laboratory fluidic systems requiring durable, chemically resistant flow path components. The 1.0 mm (0.040") through hole design and European M6 screw threads provide dependable low‑pressure tubing connections.
The 49502‑02 straight‑line connector is produced for low‑pressure fluid transfer applications and features two female M6 threaded ports for use with compatible male nuts and flangeless ferrules.
The flat sections on the union body allow the use of a wrench to stabilize the fitting while connector nuts are tightened or loosened during installation and maintenance procedures.
Key Benefits
Straight‑line low‑pressure union design
Black POM Endure construction
European M6 threaded compatibility
Suitable for 1/16" tubing
Flat surfaces for wrench stabilization
Chemically resistant fluidic connection
Suitable for laboratory fluid transfer applications
Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Low‑pressure union connector
Material: Black POM Endure
Through Hole Diameter: 1.0 mm / 0.040"
Thread: M6
Configuration: Straight line
Tubing Compatibility: 1/16" tubing
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Usage Notes
For low‑pressure fluidic applications
Designed for connecting 1/16" tubing
Requires two M6 male nuts and matching flangeless ferrules
Nuts and ferrules sold separately
Suitable for laboratory fluid transfer systems
Not intended for high‑pressure UHPLC applications
