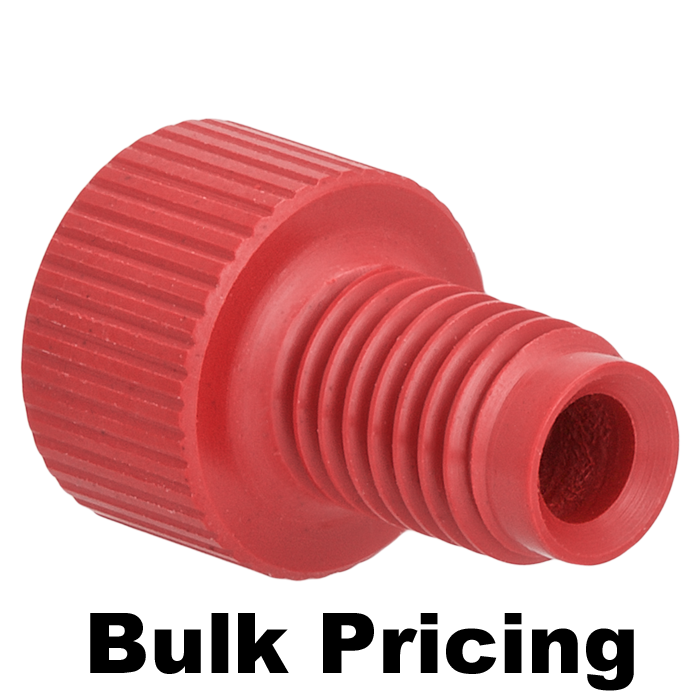

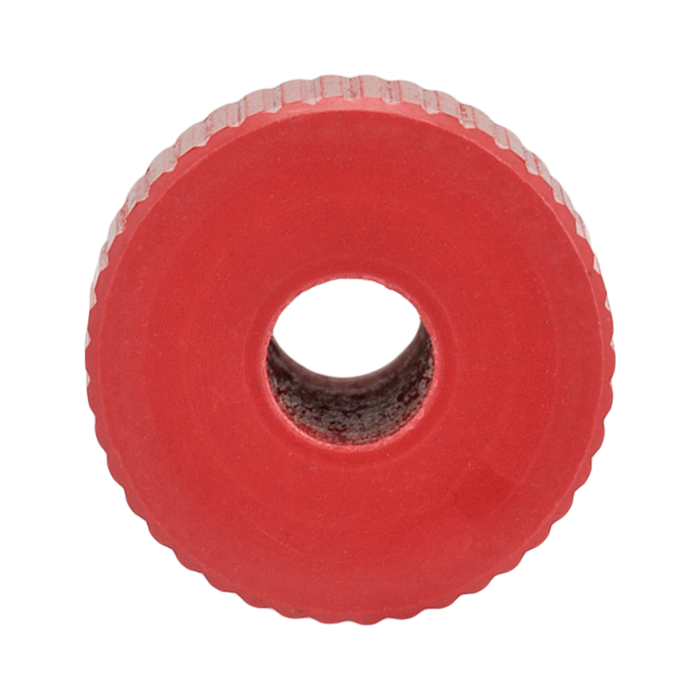

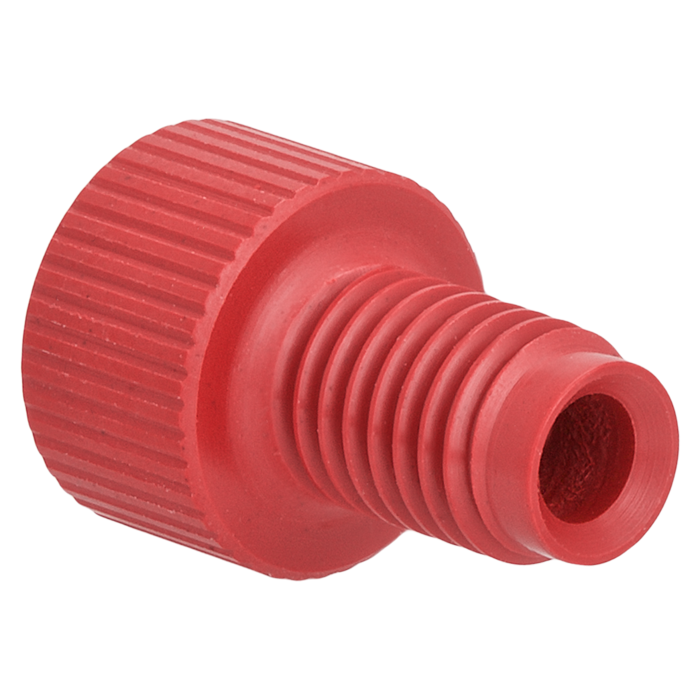

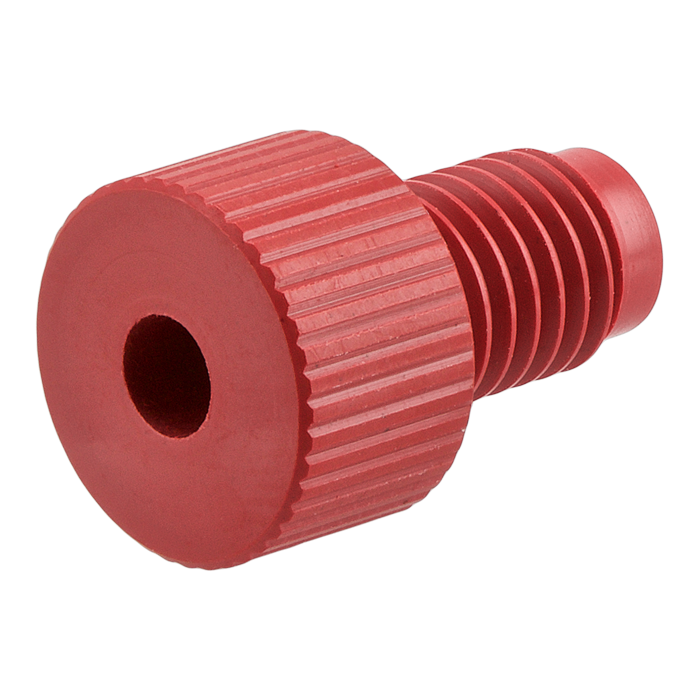

Tubing Connector Nuts, low pressure, 1/8 inch, PEEK, Red with 1/4-28 screw threads, for use with flange free, polymeric tubing. ARE-Applied Research brand. 1 EA.

Additional Info:

These tubing connector nuts are used to connect 1/8th inch (3.2 mm) OD polymeric tubing in the low pressures zones of HPLC systems and other low pressure, fluidic uses.

  • Convenient, eliminates need for flanging.

  • Compatible with 1/4 - 28 UNF fitting ports.

  • Useful up to approximately 500 psi or 34.5 bar.

  • Maximum Temperature: 100°C.

Tubing must NOT be flanged (flangeless) and ferrules are required to work properly which are sold separately. Click HERE for ETFE Ferrule Ordering Information or HERE for PTFE Ferrule Ordering Information.
