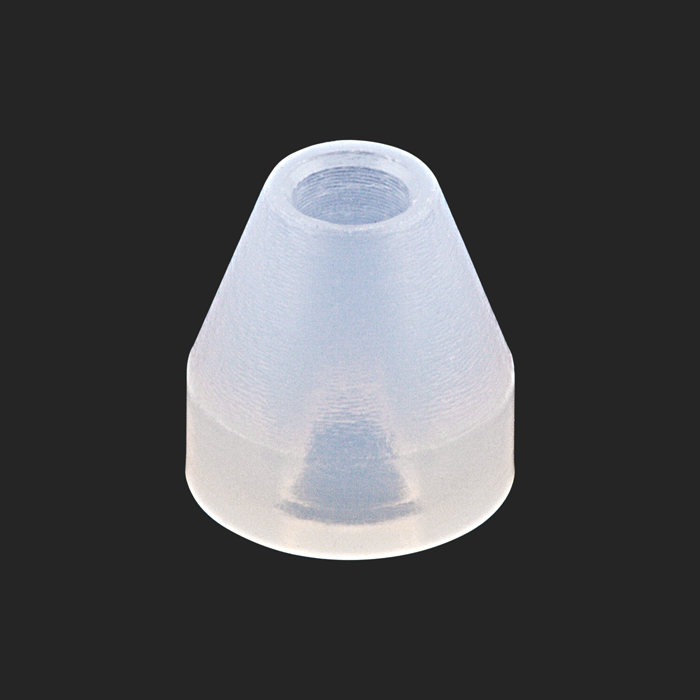

Ferrules, for use with low pressure, tubing connectors. Use with flange free, 1/16 inch, low pressure tubing. ETFE. ARE-Applied Research brand. 10/PK.
Additional Info:
The 45216‑F‑ETFE Ferrules (10/Pack) are designed for use with flangeless tubing connector nuts to create secure, leak‑free connections in low-pressure HPLC systems and fluidic applications. These ferrules are specifically sized for 1/16 inch OD polymeric tubing and are required for proper sealing when using flangeless fittings.
Manufactured from ETFE (ethylene tetrafluoroethylene), these ferrules provide excellent chemical resistance, mechanical strength, and wide temperature stability, making them suitable for a broad range of solvents and operating conditions.
✅ Key Benefits
Essential for Flangeless Connections Required to achieve proper sealing with tubing connector nuts
Optimized for 1/16" Tubing Designed specifically for flangeless polymeric tubing systems
Excellent Chemical Resistance Compatible with a wide range of HPLC solvents
Durable ETFE Construction Provides strength and long-term performance
10/Pack Configuration Ideal for routine maintenance and replacement
Performance & Design
Material: ETFE (Ethylene Tetrafluoroethylene)
High corrosion resistance
Broad solvent compatibility
High melting temperature
Strong mechanical performance
Dimensions:
Inner Diameter: ~1.7 mm (± tolerance)
Maximum Outer Diameter: ~3.3 mm (± tolerance)
Engineered for:
Consistent sealing performance
Reliable compression in flangeless systems
Repeatable installation and replacement
System Role & Integration
Used with:
1/16" flangeless tubing connector nuts (e.g., 45216 series)
Functions to:
Compress tubing
Create a leak-free seal
Maintain connection integrity
Suitable for:
Low-pressure HPLC systems
Sample preparation and transfer lines
General laboratory fluidic applications
⚠️ Usage Notes
Required component for all flangeless connections
Must be used with compatible 1/16" tubing and 1/4‑28 connector nuts
Designed for low-pressure applications only
Specifications
Product Type: Ferrules
Material: ETFE
Tubing Size Compatibility: 1/16 inch OD
Inner Diameter: ~1.7 mm
Outer Diameter: ~3.3 mm (max)
Connection Type: Flangeless
System Type: Low pressure
Pack Size: 10 per pack
Brand: ARE‑Applied Research™
