Adapter, for use with low to medium pressure HPLC. 1/4-28 female to 10/32 male connection, 0.40 mm / 0.016 bore size. PEEK. ARE-Applied Research brand. 1 EA.
Additional Info:
Low‑ to medium‑pressure PEEK adapters are designed for laboratory and analytical fluidic systems requiring chemically resistant, metal‑free thread transitions between common HPLC fitting standards. The 0.40 mm (0.016") bore size supports dependable low dispersion fluid transfer for analytical applications.
The 47451‑01 adapter provides convenient conversion from a standard 10‑32 threaded female port to a 1/4‑28 connection, simplifying integration between different tubing systems and fitting configurations used in HPLC laboratories.

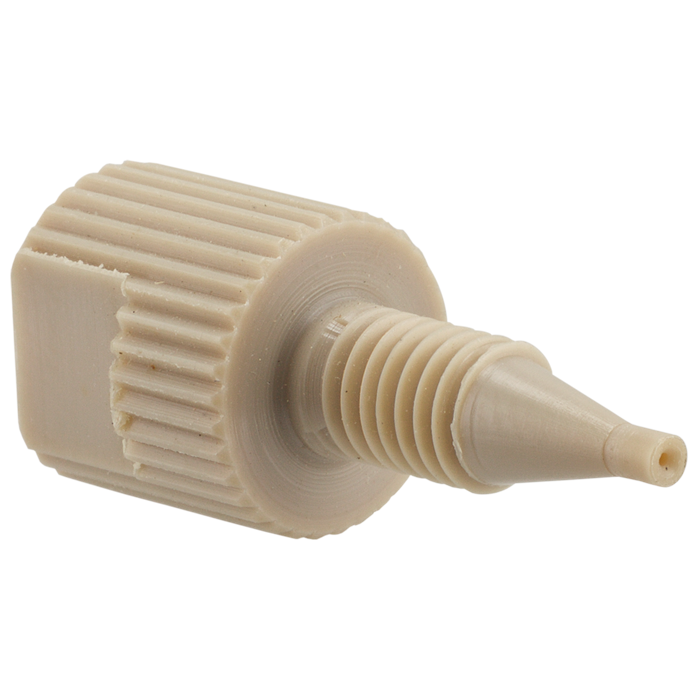

This all‑PEEK adapter includes a standard male connector with a built‑in ferrule and universal pilot length, providing reliable sealing performance while allowing simple finger‑tight installation and removal.

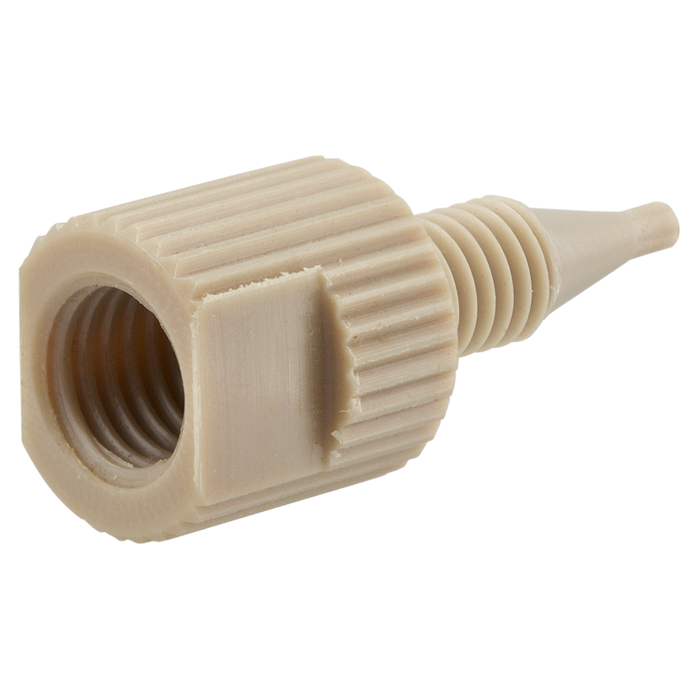

The knurled adapter body includes a flat section that allows use of a wrench for additional tightening or easier removal of tight fittings. The flat section may also be used to stabilize the adapter while tightening compatible male nuts.
Key Benefits
Converts 10‑32 female ports to 1/4‑28 connections
Built‑in ferrule with universal pilot length
Finger‑tight installation design
Chemically resistant all‑PEEK construction
Low dispersion 0.40 mm / 0.016" bore
Suitable for low‑ to medium‑pressure HPLC systems
Knurled body for convenient handling
Flat wrench section for additional tightening control

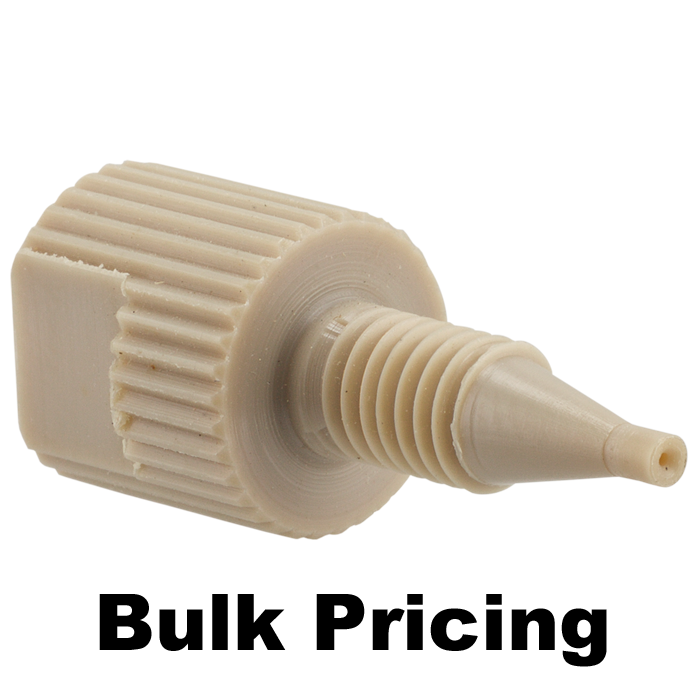

Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Thread conversion adapter
Material: PEEK
Bore Size: 0.40 mm / 0.016"
Connection Configuration: 1/4‑28 female to 10‑32 male
Connector Type: Built‑in ferrule with universal pilot
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig
Applications
HPLC tubing thread conversion
Analytical fluidic system integration
Low‑dispersion laboratory fluid transfer
Converting 10‑32 ports to 1/4‑28 fittings
Instrument fluidic connections
Laboratory tubing upgrades and transitions
Usage Notes
Designed for low‑ to medium‑pressure applications
Compatible with standard 10‑32 female ports
Suitable for analytical HPLC systems
Finger‑tight installation simplifies fitting changes
Wrench flats allow additional tightening control
Not intended for UHPLC ultra‑high‑pressure applications
