Adapter, for use with low to medium pressure HPLC. 1/4-28 female to M6 male connection, 0.40 mm / 0.016 bore size. PEEK. ARE-Applied Research brand. 1 EA.
Additional Info:
Low‑ to medium‑pressure PEEK adapters are designed for laboratory and analytical fluidic systems requiring chemically resistant, metal‑free transitions between different HPLC thread standards. The 0.40 mm (0.016") bore size supports dependable low dispersion fluid transfer for analytical applications.
The 47451‑21 adapter features one 1/4‑28 threaded female port and one European‑style M6 threaded male connector, allowing convenient integration between standard North American and European HPLC fluidic systems.
Manufactured from chemically resistant all‑PEEK material, this adapter is suitable for laboratory applications requiring durable, metal‑free fluid path components and dependable sealing performance.

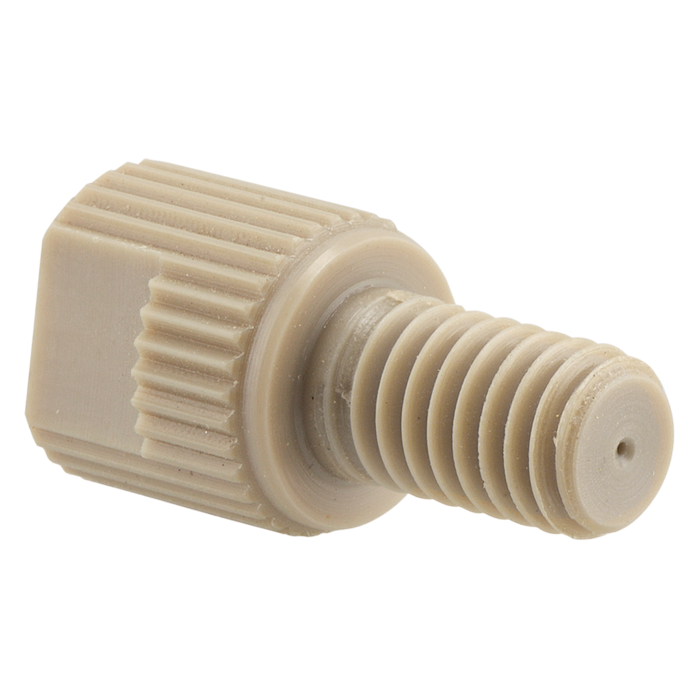

The knurled adapter body includes a flat section that allows use of a wrench for additional tightening or easier removal of tight fittings. The flat section may also be used to stabilize the adapter while tightening compatible male nuts.
Key Benefits
Converts 1/4‑28 female ports to M6 male threaded connections
European‑style M6 male connector design
Chemically resistant all‑PEEK construction
Low dispersion 0.40 mm / 0.016" bore
Suitable for low‑ to medium‑pressure HPLC systems
Knurled body for convenient installation
Flat wrench section for additional tightening control
Ideal for international HPLC system compatibility
Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Thread conversion adapter
Material: PEEK
Bore Size: 0.40 mm / 0.016"
Connection Configuration: 1/4‑28 female to M6 male
Connector Style: European‑style M6 thread
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig
Applications
HPLC tubing thread conversion
European instrument compatibility
Analytical fluidic system integration
Low‑dispersion laboratory fluid transfer
Laboratory tubing transitions
Instrument fluidic connections
Usage Notes
Designed for low‑ to medium‑pressure applications
Compatible with standard 1/4‑28 female ports
Suitable for European‑style M6 threaded systems
Wrench flats allow additional tightening control
Suitable for analytical HPLC systems
Not intended for UHPLC ultra‑high‑pressure applications
