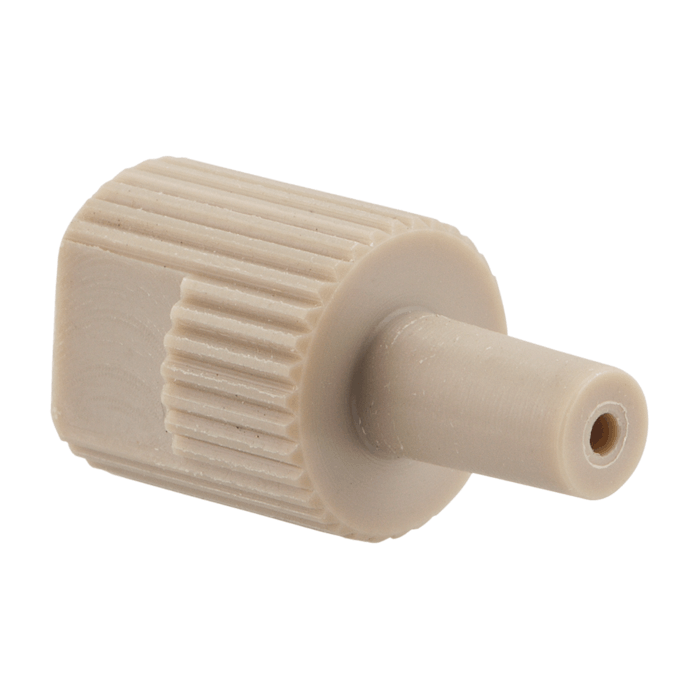

Adapter, for use with low to medium pressure HPLC. 10-32 female to male luer connection, 1.3 mm / 0.051 bore size. PEEK. ARE-Applied Research brand. 1 EA.
Additional Info:
Low‑ to medium‑pressure PEEK adapters are designed for laboratory and analytical fluidic systems requiring chemically resistant, metal‑free connections between threaded fittings and Luer‑style fluid transfer devices. The wide 1.3 mm (0.051") bore supports efficient fluid transfer with minimal restriction.
The 47451‑42 adapter features one 10‑32 threaded female port and one male Luer slip connection, allowing convenient integration between standard HPLC fluidic fittings and tubing assemblies used for laboratory priming and solvent transfer operations.
This adapter is especially useful for connecting tubing to priming valves on HPLC instruments and related low‑pressure fluid transfer systems.
Manufactured from chemically resistant all‑PEEK material, this adapter is suitable for laboratory applications requiring durable, metal‑free fluid path components and dependable sealing performance.

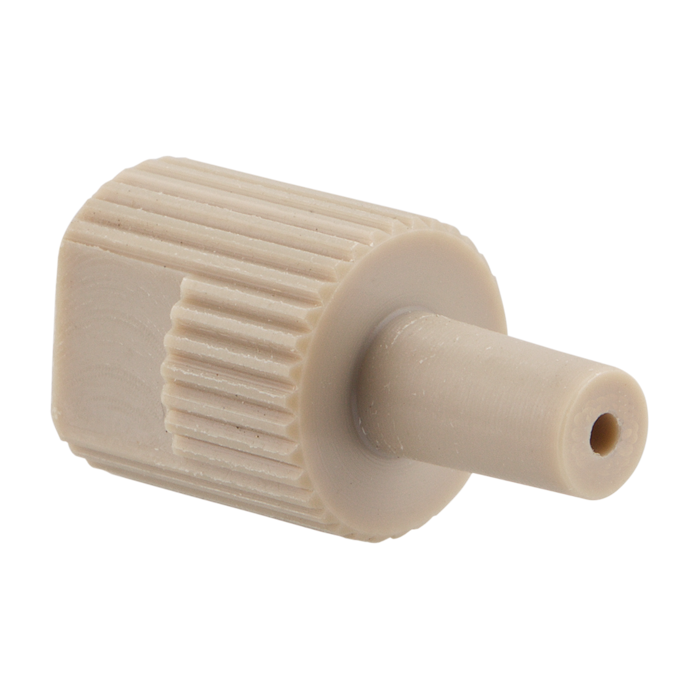

The knurled adapter body includes a flat section that allows use of a wrench for additional tightening or easier removal of tight fittings. The flat section may also be used to stabilize the adapter while tightening compatible male nuts.
Key Benefits
10‑32 female to male Luer slip adapter configuration
Wide 1.3 mm / 0.051" bore design
Chemically resistant all‑PEEK construction
Ideal for HPLC priming valve applications
Compatible with tubing and syringe assemblies
Knurled body for easy installation
Flat wrench section for additional tightening control
Suitable for low‑ to medium‑pressure laboratory fluidics

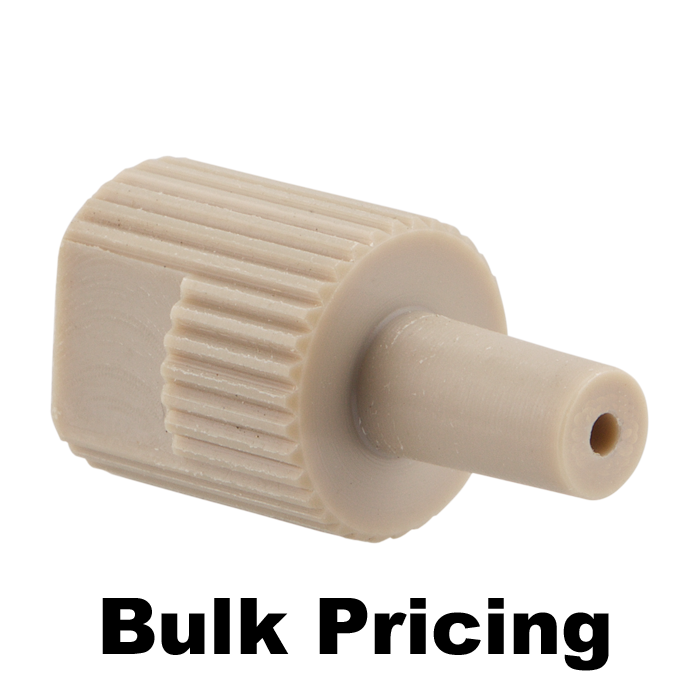

Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Female threaded to male Luer adapter
Material: PEEK
Bore Size: 1.3 mm / 0.051"
Thread Configuration: 10‑32 female
Secondary Connection: Male Luer slip
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig
Applications
HPLC priming valve connections
Syringe and tubing fluid transfer
Laboratory solvent handling
Analytical fluid transfer systems
Low‑ to medium‑pressure fluidic connections
Instrument tubing integration
Usage Notes
Designed for low‑ to medium‑pressure applications
Compatible with standard female Luer fittings
Suitable for tubing and syringe assemblies
Wrench flats allow additional tightening control
Compatible with 10‑32 threaded fluidic fittings
Not intended for UHPLC ultra‑high‑pressure applications
