Catalog Number - 47451-02

Low‑ to medium‑pressure PEEK adapters are designed for laboratory and analytical fluidic systems requiring chemically resistant, metal‑free connections between threaded fittings and Luer‑style fluid transfer devices. The wide 1.3 mm (0.051") bore supports efficient fluid transfer with minimal restriction.

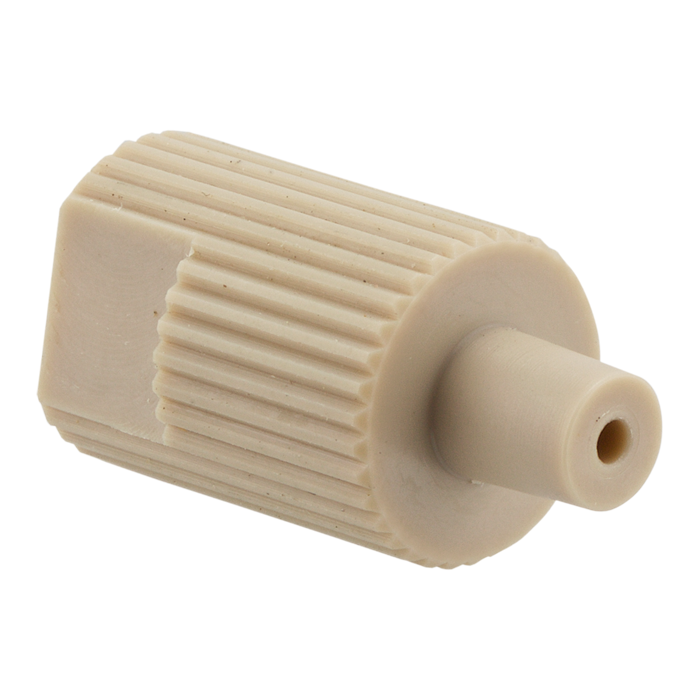

The 47451‑02 adapter features one 1/4‑28 threaded female port and one male Luer slip connection, making it suitable for syringe priming, solvent transfer, and laboratory fluid handling applications involving HPLC systems.

These easy‑to‑install adapters are especially useful for priming HPLC instruments through the prime purge valve with syringes and tubing assemblies used in low‑pressure fluid transfer applications.

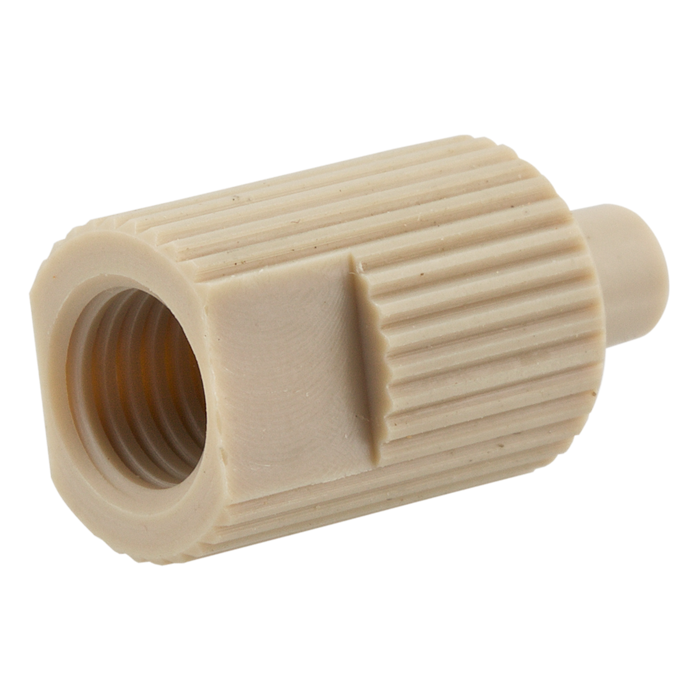

The knurled adapter body includes a flat section that allows use of a wrench for additional tightening or easier removal of tight fittings. The flat section may also be used to stabilize the adapter while tightening compatible male nuts.

Key Benefits

• 1/4‑28 female to male Luer slip adapter configuration

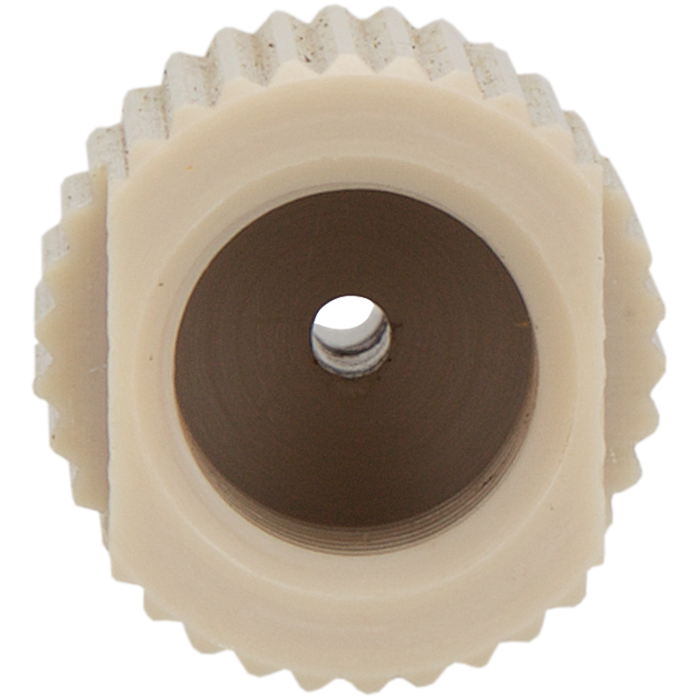

• Wide 1.3 mm / 0.051" bore design

• Chemically resistant all‑PEEK construction

• Ideal for HPLC priming applications

• Compatible with syringes and tubing assemblies

• Knurled body for easy installation

• Flat wrench section for additional tightening control

• Suitable for low‑ to medium‑pressure laboratory fluidics

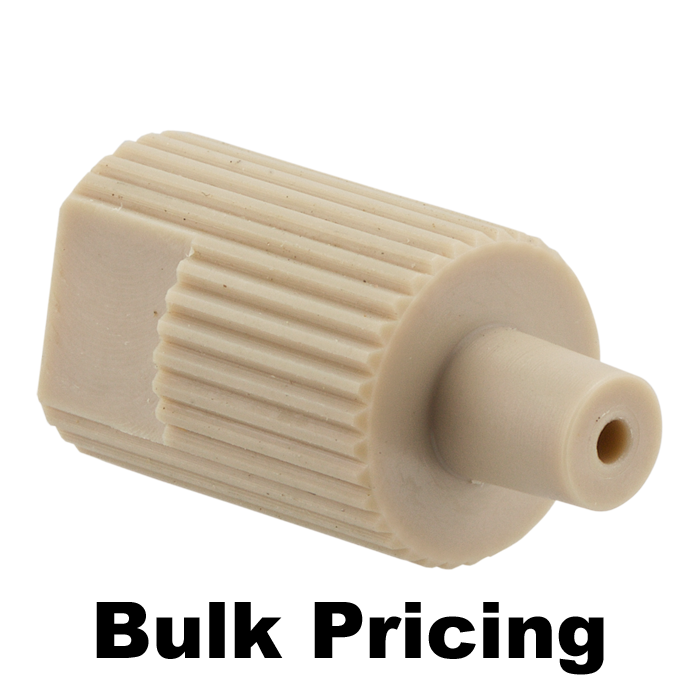

• Bulk pricing available for laboratory and OEM requirements

Specifications

• Product Type: Female threaded to male Luer adapter

• Material: PEEK

• Bore Size: 1.3 mm / 0.051"

• Thread Configuration: 1/4‑28 female

• Secondary Connection: Male Luer slip

• Maximum Temperature: 100°C

• Maximum Pressure: 8,000 psig

Applications

• HPLC instrument priming

• Prime purge valve connections

• Syringe and tubing fluid transfer

• Laboratory solvent handling

• Analytical fluid transfer systems

• Low‑ to medium‑pressure fluidic connections

Usage Notes

• Designed for low‑ to medium‑pressure applications

• Compatible with standard female Luer fittings

• Suitable for use with syringes and tubing

• Wrench flats allow additional tightening control

• Compatible with 1/4‑28 threaded fluidic fittings
