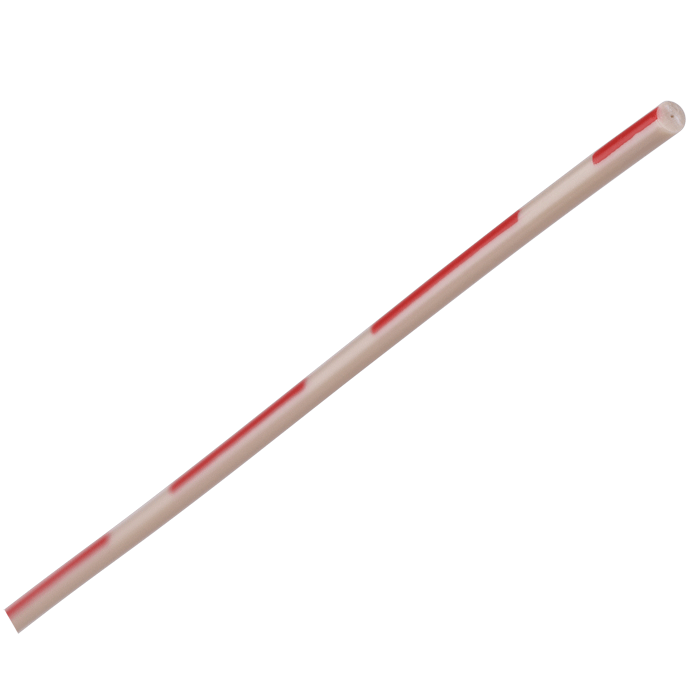

CUSTOM ITEM: Tubing, PEEK, 0.005 inch (0.13 mm) ID, 1/16th inch (1.6 mm) OD, Ultra-T grade, natural color, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
Ultra‑T™ grade PEEK tubing is manufactured from virgin PEEK material without processing additives for HPLC and LC‑MS applications requiring low extractables and chemical resistance.
The 47305‑ST‑05‑1C tubing features a 0.005" (0.13 mm) ID with a 1/16" (1.6 mm) OD. The red intermittent stripes are applied only to the exterior tubing surface, while the internal flow path remains natural virgin PEEK to minimize potential color leachables.
Custom continuous lengths are available, with lengths of 15 meters or longer supplied on a convenient spool. Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some HPLC fitting applications.
This is a custom order manufactured item and cannot be canceled or returned once an order has been placed.
Key Benefits
Ultra‑T™ virgin PEEK tubing
Natural internal flow path
Exterior red stripe identification
Custom continuous lengths available
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Metal‑free fluidic pathway
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: Ultra‑T™
Material: Virgin PEEK
Tubing ID: 0.005" (0.13 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.735 mm
Tolerance: ± 0.025 mm
Color Code: Red intermittent stripes
Pressure Rating: 6100 psi (420.6 bar)
Length Availability: Custom continuous lengths
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Internal flow path remains natural virgin PEEK
Exterior stripes assist tubing identification
Lengths 15 meters and longer supplied on spool
Not supplied with precision low dead volume end cuts
Custom order item
Non‑cancelable and non‑returnable after order placement
