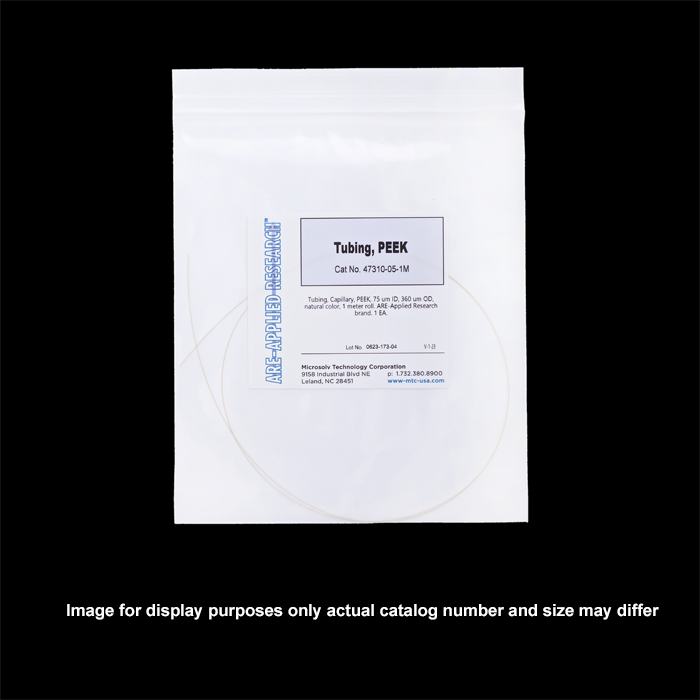

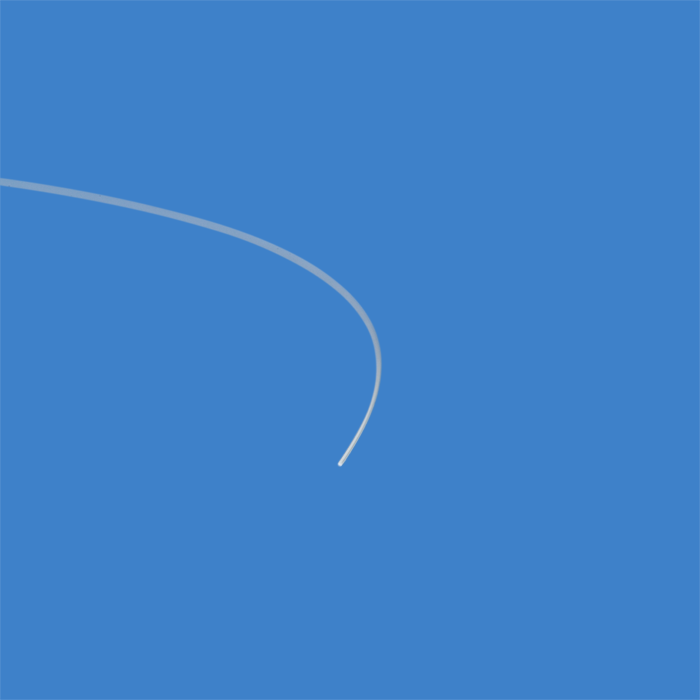

CUSTOM ITEM: Tubing, Capillary, PEEK, 75 um ID, 360 um OD, natural color, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
This small OD PEEK capillary tubing is manufactured from virgin PEEK material without processing additives for HPLC and LC‑MS applications requiring chemically resistant capillary fluidic pathways.
The 47310‑05‑1C tubing features a 75 µm ID with a 360 µm OD and natural color construction without color additives or leachable pigments.
Custom continuous lengths are available, with lengths of 15 meters or longer supplied on a convenient spool. Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some capillary fitting applications.
This is a custom order manufactured item and cannot be canceled or returned once an order has been placed.
Key Benefits
Virgin PEEK capillary tubing
Natural color with no color additives
Small OD capillary format
Custom continuous lengths available
Suitable for HPLC and LC‑MS
Chemically resistant fluidic pathway
Flexible PEEK construction
Specifications
Product Type: PEEK capillary tubing
Brand: ARE‑Applied Research
Material: Virgin PEEK
Tubing ID: 75 µm
Tubing OD: 360 µm
Wall Thickness: 0.157 µm
Tolerance: ± 0.05 mm
Color: Natural
Pressure Rating: 5200 psi (358.5 bar)
Length Availability: Custom continuous lengths
Applications
Capillary HPLC
LC‑MS systems
Small OD fluidics
Analytical capillary connections
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Lengths 15 meters and longer supplied on spool
Not supplied with precision low dead volume end cuts
Custom order item
Non‑cancelable and non‑returnable after order placement
