Catalog Number - 49330-SR3

The 49330‑SR3 All‑PEEK Slurry Reservoir Kit is a complete column packing system designed for 2.1 mm ID All‑PEEK HPLC columns up to 100 mm in length. This kit provides all required components to enable controlled slurry packing, ensuring uniform bed formation and reproducible chromatographic performance.

The included reservoir body is 150 mm long with a 4.6 mm internal diameter, offering an approximate internal volume of 2.5 mL, which is optimized for longer column packing requiring increased slurry volume. The system is fully bioinert and metal‑free, making it ideal for LC‑MS and sensitive analyte workflows.

✅ Why Choose This Slurry Reservoir Kit

• Optimized for 2.1 mm Columns up to 100 mm Length Provides sufficient slurry volume for longer analytical columns

• Complete Packing System (Ready to Use) Includes all components required for column packing

• True Bioinert Flow Path (All‑PEEK Construction) Eliminates metal interactions during packing and operation

• Increased Reservoir Volume (~2.5 mL) Supports consistent packing of longer columns

• Reproducible Packing Performance Ensures uniform bed formation and reliable results

Performance & Design

• Reservoir Body (150 mm × 4.6 mm ID)

  • Internal volume: ~2.5 mL

  • Designed for longer column packing (≤100 mm)

• Thread Configuration

  • Reservoir: 1/2‑20 external threads (both ends)

  • Adapter:

    • 1/4‑28 internal thread (system/pump connection)

    • 1/2‑20 internal thread (column connection)

• Engineered to:

  • Deliver controlled slurry flow

  • Maintain uniform packing pressure

  • Enable consistent and repeatable packing results

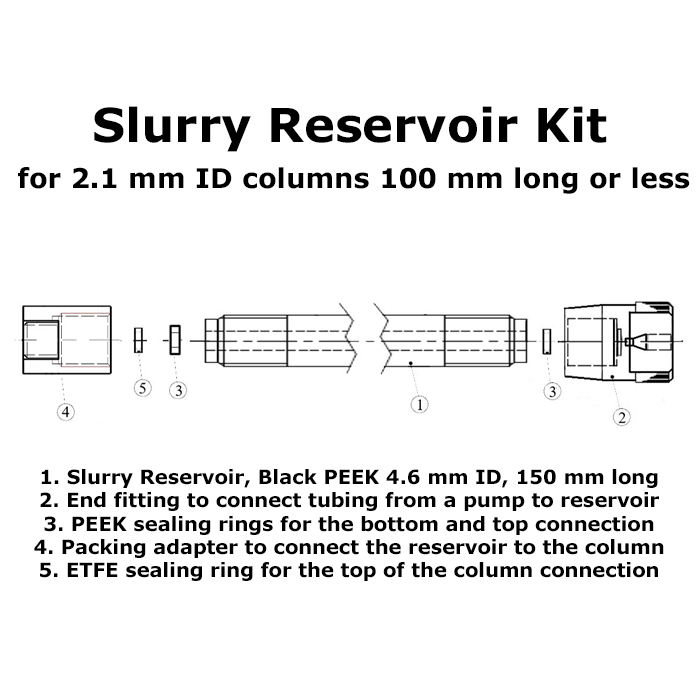

What’s Included in the Kit

• 1 × Slurry Reservoir Body (PEEK) – 150 mm length, 4.6 mm ID

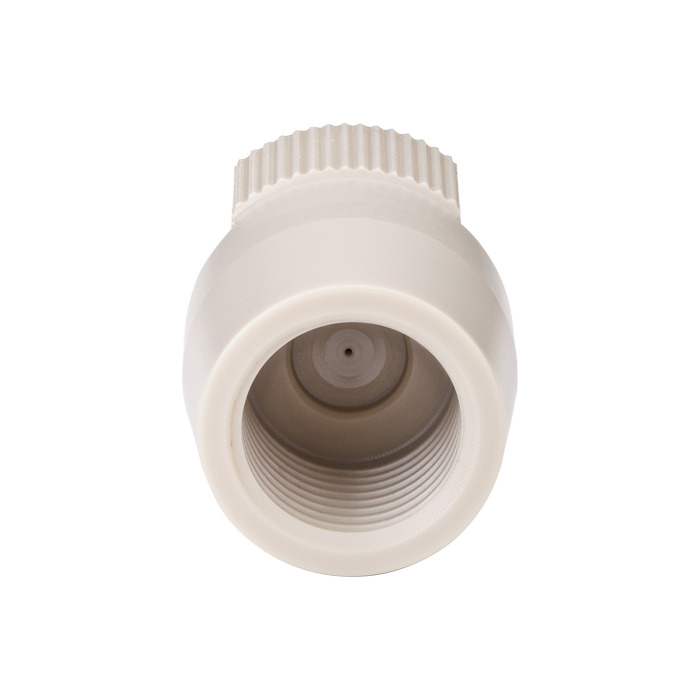

• 1 × End Fitting – Connects pump tubing to reservoir

• 2 × PEEK Sealing Rings – Top and bottom sealing

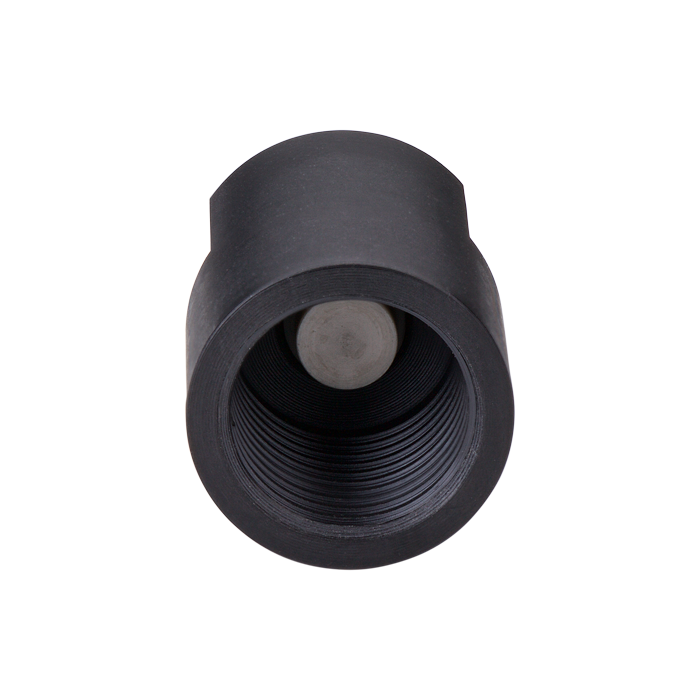

• 1 × Packing Adapter – Connects reservoir to column

• 1 × ETFE Sealing Ring – Column interface sealing

✔ Provides everything required for bioinert 2.1 mm column packing

System Role & Integration

This kit is used in column packing workflows, providing:

• Controlled slurry delivery from pump → reservoir → column

• Stable packing pressure and flow conditions

• Consistent bed formation and column reproducibility

Used with:

• 2.1 mm ID All‑PEEK column hardware

• Frits, end fittings, and packing components

👉 Columns and packing materials are sold separately

Use Case Positioning

Analytical Column Packing System (2.1 mm ID, up to 100 mm)

• Ideal for:

  • Standard analytical column packing

  • LC‑MS applications requiring bioinert systems

  • Method development and validation workflows

Typical Applications

• LC‑MS Column Packing (2.1 mm ID)

• Analytical HPLC Method Development

• Bioinert Chromatography (proteins, peptides, nucleic acids)

• Reproducible column manufacturing workflows

⚠️ Usage & System Guidance

• Designed exclusively for All‑PEEK column hardware systems

• Not recommended for stainless steel or mixed-material systems

• Clean components individually after use

• Do not store assembled under pressure or tightly connected

Assembly & Ordering Resources

• 👉 View assembly instructions for slurry reservoir and column setup

• 👉 View compatible columns, frits, and packing components

Specifications

• Product Type: Slurry Reservoir Packing Kit

• Material: All‑PEEK with ETFE sealing component

• Reservoir Length: 150 mm

• Reservoir ID: 4.6 mm

• Internal Volume: ~2.5 mL

• Threading:

  • Reservoir: 1/2‑20 external

  • Adapter: 1/4‑28 (system side), 1/2‑20 (column side)

• Compatible Column ID: 2.1 mm

• Recommended Column Length: ≤100 mm

• Flow Path: Bioinert / metal‑free

• Brand: ARE‑Applied Research™

• Unit: 1 Kit
