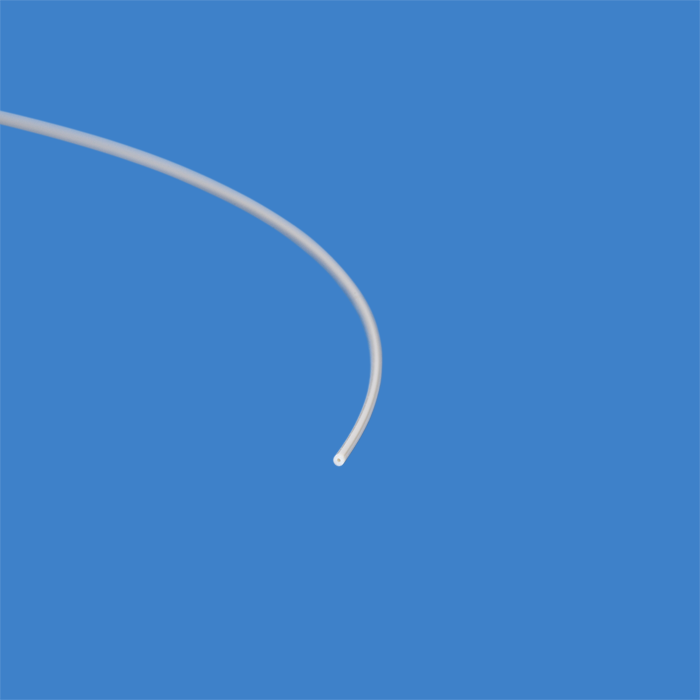

CUSTOM ITEM: Tubing, PEEK, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, general grade, natural, Your continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
This general grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography and laboratory fluidic applications.
The 47310‑25‑1C tubing features a 0.010" (0.25 mm) ID with a 1/32" (0.79 mm) OD for applications requiring low internal volume and narrow flow paths.
No color additives are used, leaving the tubing natural virgin PEEK throughout the internal and external surfaces to minimize potential leachables.
Custom continuous lengths are available, with lengths of 15 meters or longer supplied on a convenient spool.
This is a custom order manufactured item and cannot be canceled or returned once an order has been placed.
Key Benefits
Virgin PEEK tubing construction
Natural color tubing
Narrow internal flow path
Low internal volume tubing
Custom continuous lengths available
Suitable for HPLC and LC‑MS
Chemically resistant tubing
Metal‑free fluidic pathway
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: General
Material: Virgin PEEK
Tubing ID: 0.010" (0.25 mm)
Tubing OD: 1/32" (0.79 mm)
Wall Thickness: 0.27 mm
Tolerance: ± 0.05 mm
Color: Natural
Pressure Rating: 4500 psi (310 bar)
Length Availability: Custom continuous lengths
Applications
Analytical HPLC
LC‑MS systems
Low internal volume fluidics
Metal‑free chromatography pathways
Narrow bore fluid transfer
Usage Information
Designed for chromatography and laboratory applications
Natural virgin PEEK throughout tubing pathway
Lengths 15 meters and longer supplied on spool
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom order item
Non‑cancelable and non‑returnable after order placement
