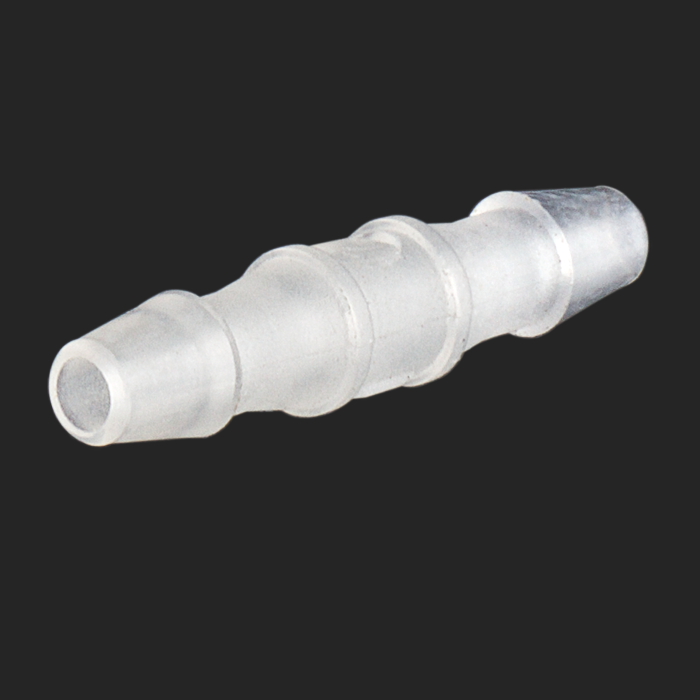

CUSTOM ITEM: Union, for use with low pressure. Barbed connection for 1/16 inch tubing. Polypropylene. ARE-Applied Research brand. Bulk Price.
Additional Info:
Low‑pressure polypropylene barbed unions are designed for connecting flexible tubing in laboratory fluid transfer systems requiring dependable low‑pressure flow connections. The barbed fitting configuration allows tubing to slide securely over the connector ends for reliable tubing retention.
The 47452‑04 union is intended for use with 1/16" (1.6 mm) ID tubing and is manufactured from chemically resistant polypropylene for dependable laboratory fluid handling performance.
This fitting is suitable for low‑pressure laboratory and HPLC applications where flexible tubing connections are required.
Key Benefits
Barbed union design for flexible tubing
Suitable for 1/16" ID tubing
Polypropylene construction for chemical resistance
Simple push‑on tubing installation
Reliable low‑pressure fluidic connection
Suitable for laboratory and HPLC applications

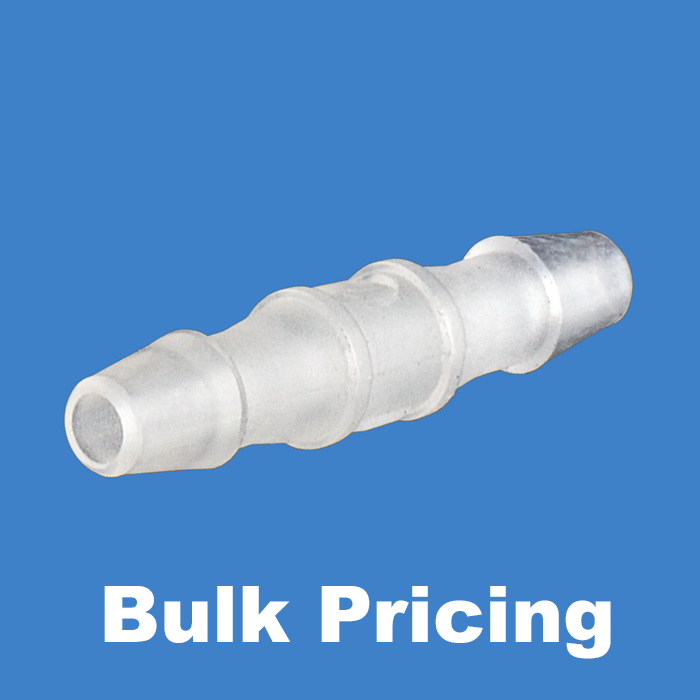

Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Barbed union connector
Material: Polypropylene
Tubing Compatibility: 1/16" (1.6 mm) ID tubing
Connection Type: Barbed fitting
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Usage Notes
For low‑pressure fluidic applications
Designed for flexible tubing connections
Intended for 1/16" (1.6 mm) ID tubing
Suitable for laboratory fluid transfer systems
Not intended for high‑pressure UHPLC applications
