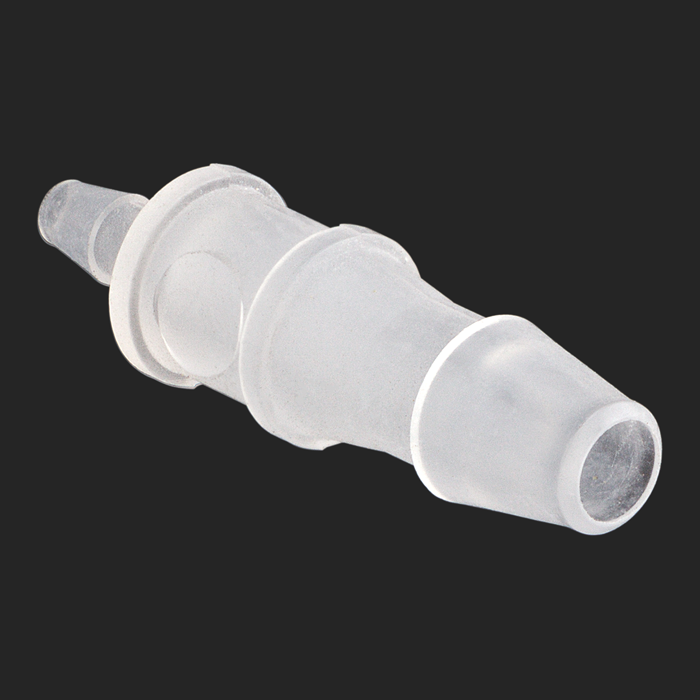

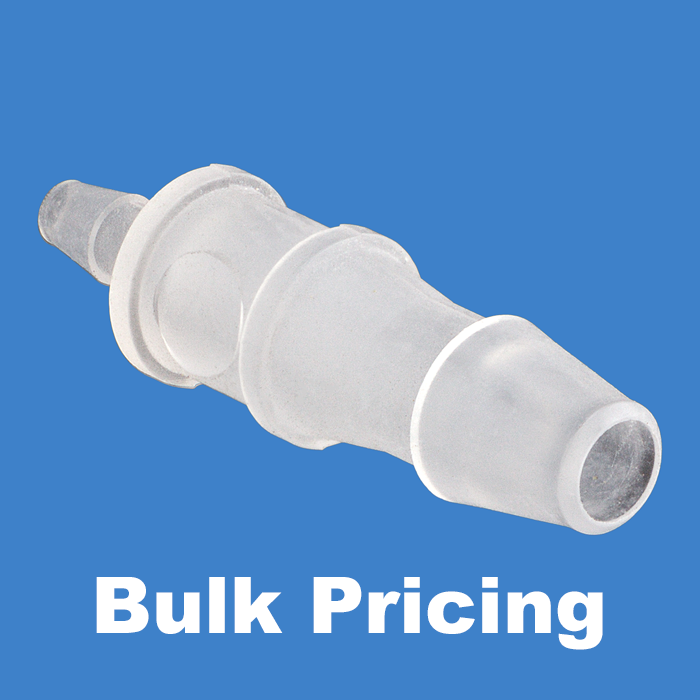

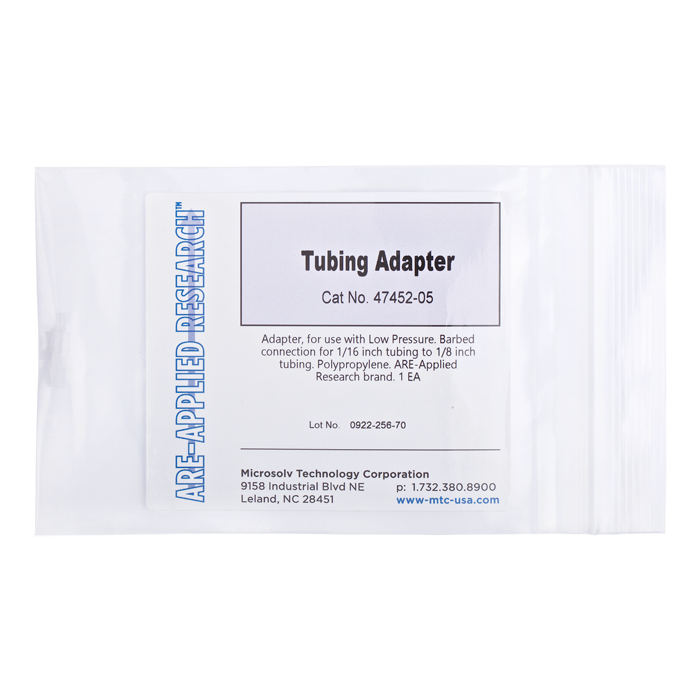

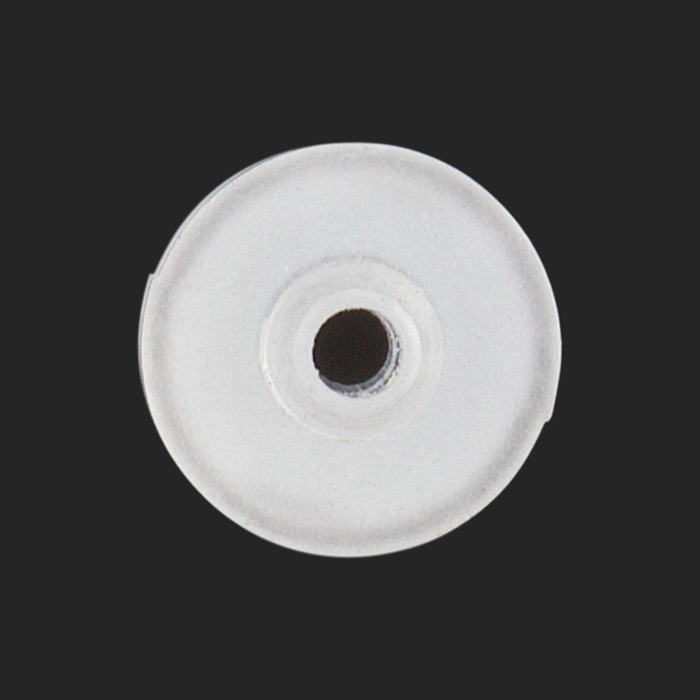

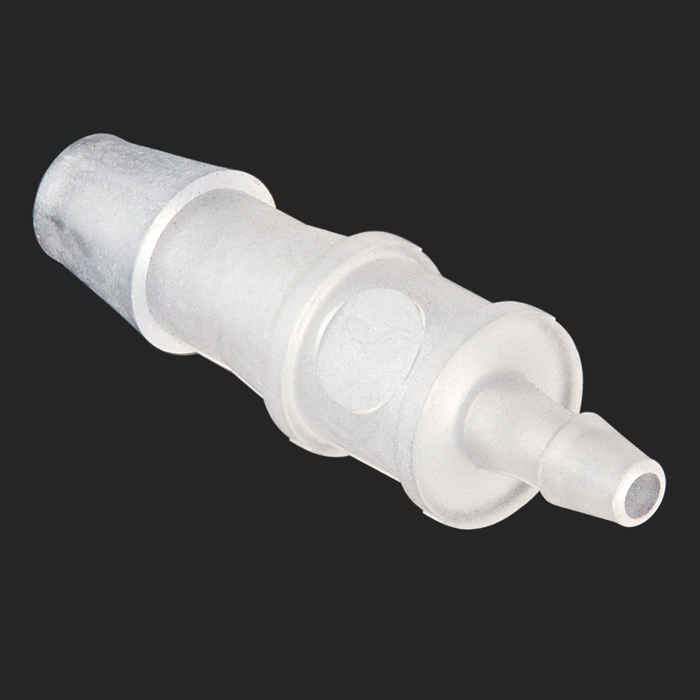

CUSTOM ITEM: Adapter, for use with low pressure. Barbed connection for 1/16 inch tubing to 1/8 inch tubing. Polypropylene. ARE-Applied Research brand. Bulk Price.
Additional Info:
Low‑pressure polypropylene adapters are designed for laboratory and analytical fluidic systems requiring dependable tubing size transitions between different internal diameter tubing configurations. These fittings are suitable for solvent transfer, waste lines, and general low‑pressure fluid handling applications used in HPLC laboratories and related analytical systems.
The 47452‑05 adapter contains barbed fittings on both ends for secure connection between 1/16" (1.6 mm) ID tubing and 1/8" (3.2 mm) ID tubing. Tubing is secured by sliding it over the corresponding barbed ends to help maintain dependable tubing retention during low‑pressure fluid transfer operations.
Manufactured from chemically resistant polypropylene material, this adapter is suitable for a broad range of laboratory fluid handling applications where durable, lightweight polymer fittings are preferred.
Key Benefits
Connects 1/16" ID tubing to 1/8" ID tubing
Dual barbed tubing connection design
Chemically resistant polypropylene construction
Suitable for low‑pressure laboratory fluidics
Secure tubing retention design
Lightweight polymer fitting construction
Ideal for tubing size transitions
Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Barbed tubing adapter
Material: Polypropylene
Tubing Connection 1: 1/16" (1.6 mm) ID tubing
Tubing Connection 2: 1/8" (3.2 mm) ID tubing
Connection Style: Dual barbed fittings
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Applications
Low‑pressure HPLC systems
Laboratory solvent transfer
Fluid waste line connections
General laboratory tubing integration
Analytical fluid handling systems
Tubing size transition applications
Usage Notes
Designed for low‑pressure applications
Tubing secures by sliding over barbed fittings
Compatible with 1/16" and 1/8" ID tubing
Suitable for laboratory fluid transfer systems
Lightweight and chemically resistant construction
Not intended for UHPLC ultra‑high‑pressure applications
