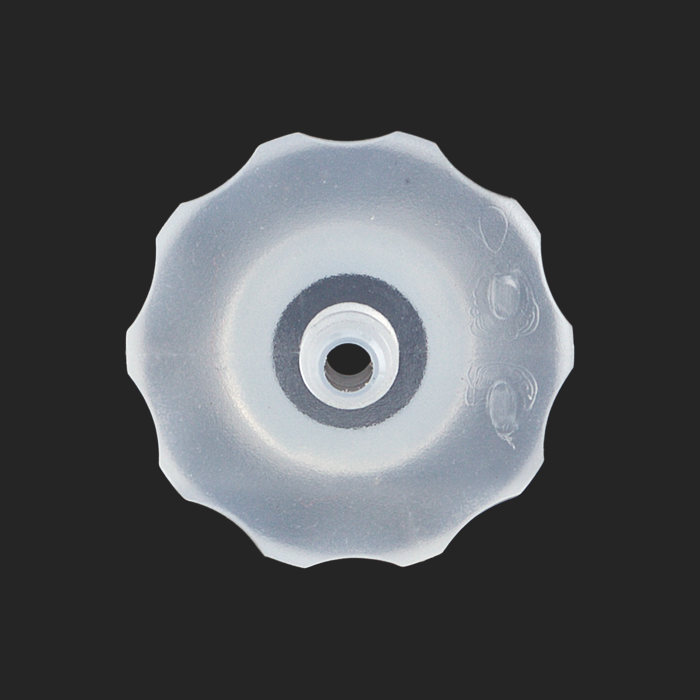

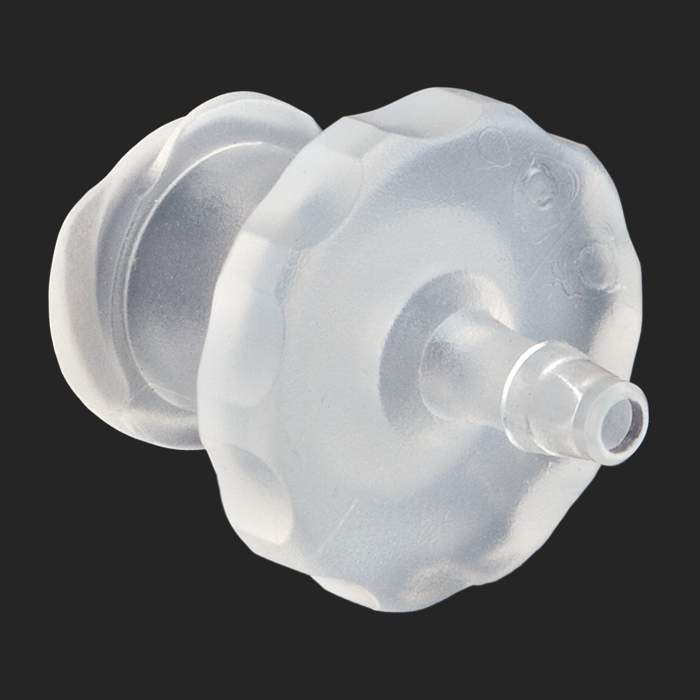

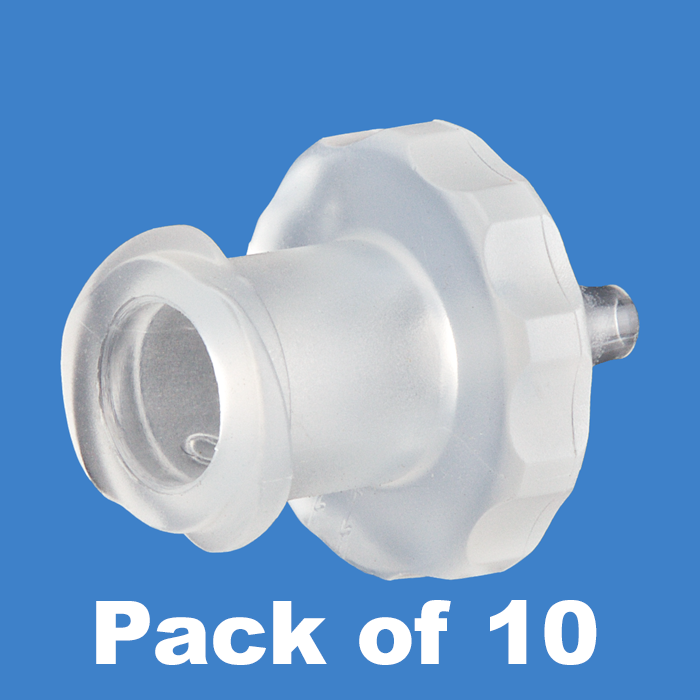

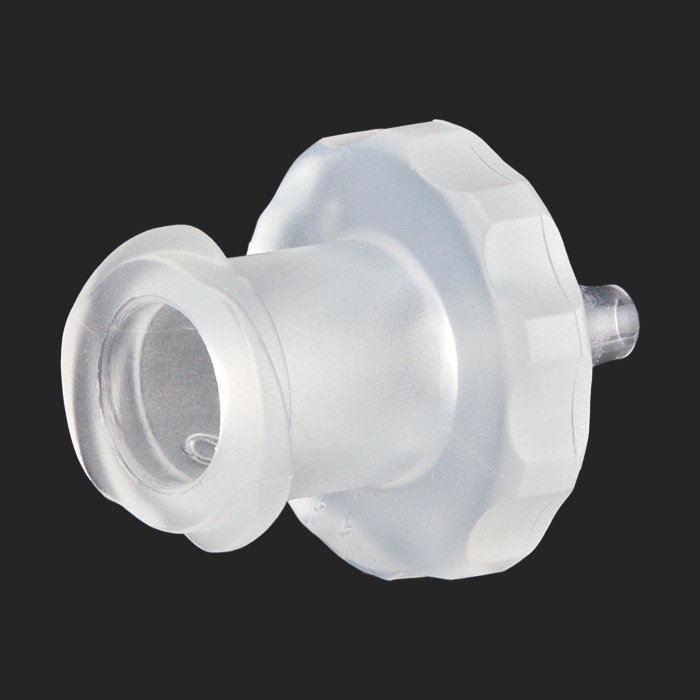

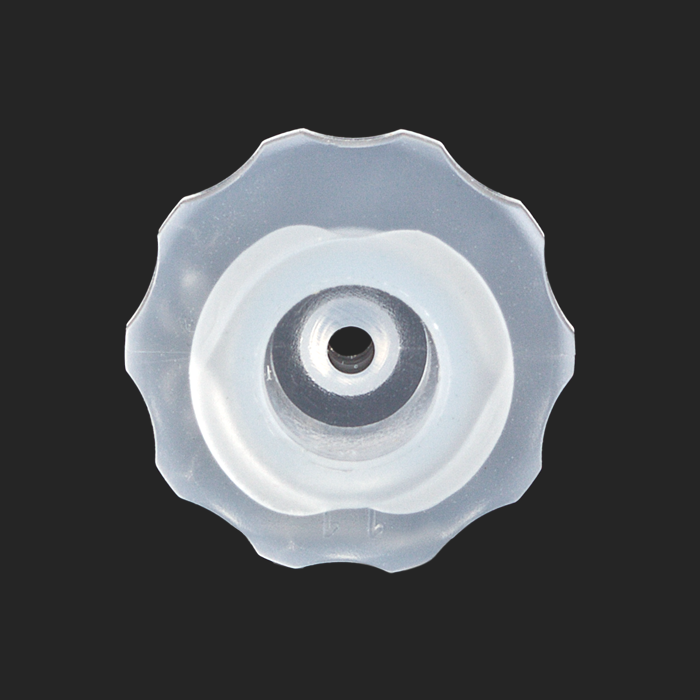

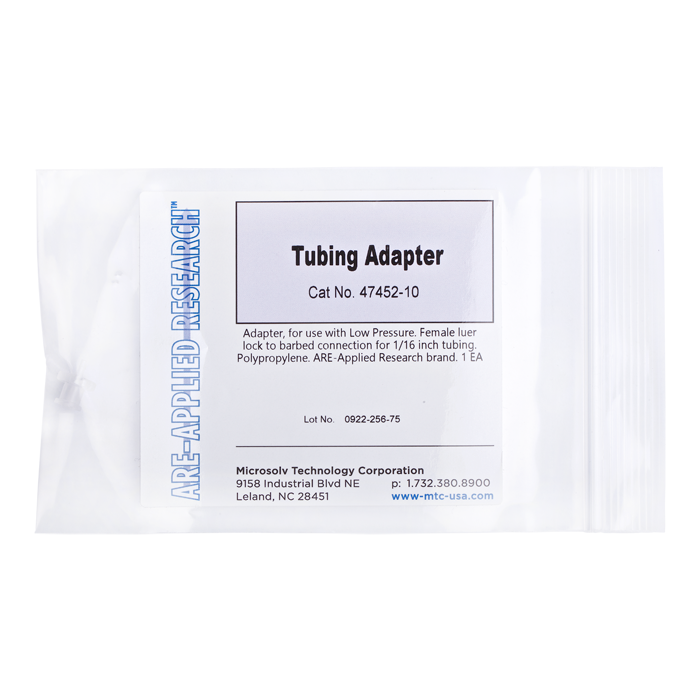

Adapter, for use with low pressure. Female luer lock to barbed connection for 1/16 inch tubing. Polypropylene. ARE-Applied Research brand. 10/PK.
Additional Info:
Low‑pressure polypropylene adapters are designed for laboratory and analytical fluidic systems requiring dependable transitions between flexible tubing and standard Luer Lock connections. These fittings are suitable for solvent transfer, syringe connections, waste lines, and general low‑pressure fluid handling applications used in HPLC laboratories and related analytical systems.
The 47452‑10‑010 (10/Pack) adapters feature a female Luer Lock port on one side and a hose barb connector on the other side for 1/16" (1.6 mm) ID tubing, allowing convenient integration between tubing assemblies and syringes or compatible Luer devices.
Tubing is secured by sliding it over the barbed fitting to help maintain dependable tubing retention during low‑pressure fluid transfer operations.
Manufactured from chemically resistant polypropylene material, these adapters are suitable for a broad range of laboratory fluid handling applications where durable, lightweight polymer fittings are preferred.
Key Benefits
Female Luer Lock to 1/16" tubing adapter configuration
Hose barb fitting for secure tubing retention
Compatible with syringes and Luer Lock devices
Chemically resistant polypropylene construction
Suitable for low‑pressure laboratory fluidics
Lightweight polymer fitting construction
Ideal for syringe‑to‑tubing connections
10/Pack configuration for laboratory replacement needs
Specifications
Product Type: Luer Lock to barbed tubing adapter
Material: Polypropylene
Tubing Compatibility: 1/16" (1.6 mm) ID tubing
Connection Style 1: Female Luer Lock port
Connection Style 2: Hose barb fitting
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Pack Size: 10
Applications
Low‑pressure HPLC systems
Syringe‑to‑tubing connections
Laboratory solvent transfer
Analytical fluid handling systems
Sample transfer applications
General laboratory tubing integration
Usage Notes
Designed for low‑pressure applications
Tubing secures by sliding over barbed fitting
Compatible with standard male Luer Lock fittings
Suitable for syringe connections
Lightweight and chemically resistant construction
Not intended for UHPLC ultra‑high‑pressure applications
