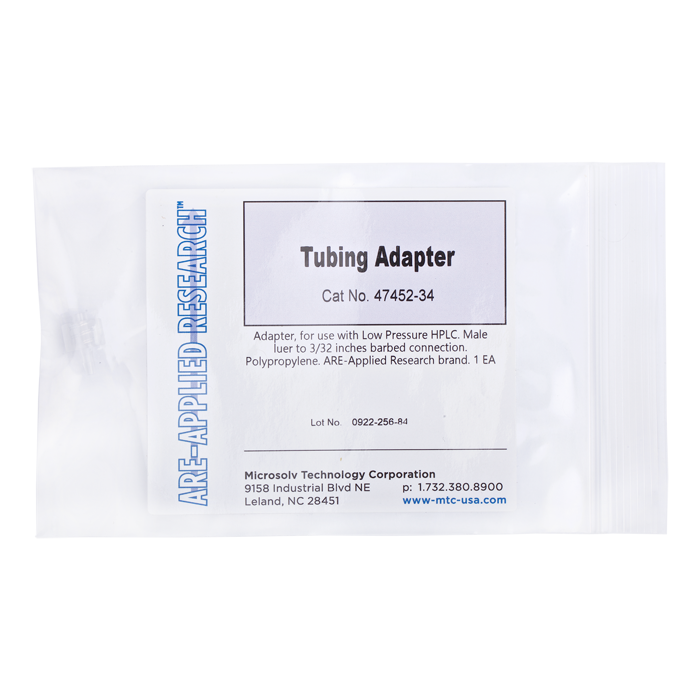

CUSTOM ITEM: Adapter, for use with low pressure HPLC. Male luer to 3/32 inch barbed connection. Polypropylene. ARE-Applied Research brand. Bulk Price.
Additional Info:
Low‑pressure polypropylene adapters are designed for laboratory and analytical fluidic systems requiring dependable transitions between standard Luer connections and flexible tubing assemblies. These fittings are suitable for solvent transfer, syringe filter integration, sample handling, and general low‑pressure laboratory fluid management applications.

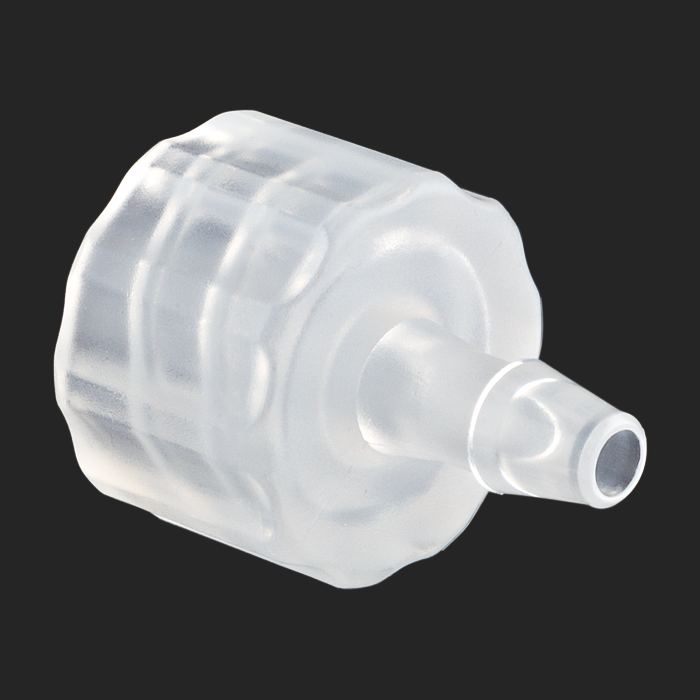

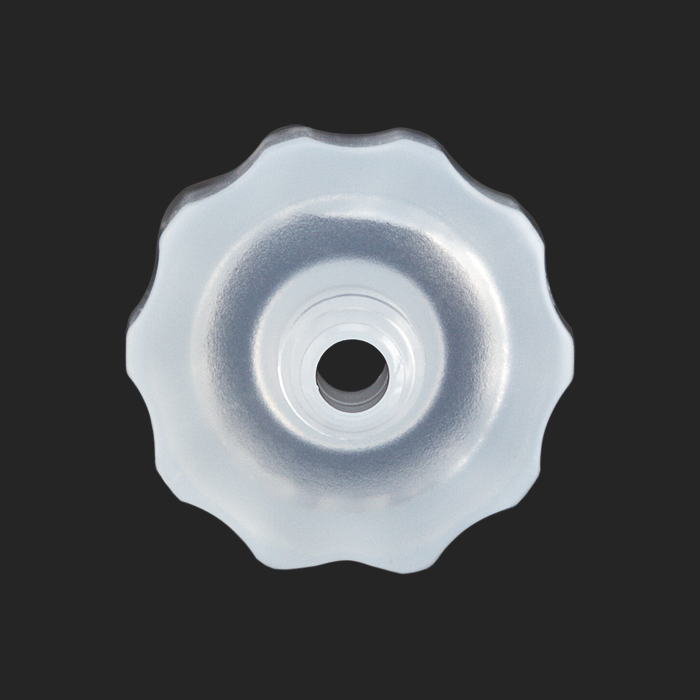

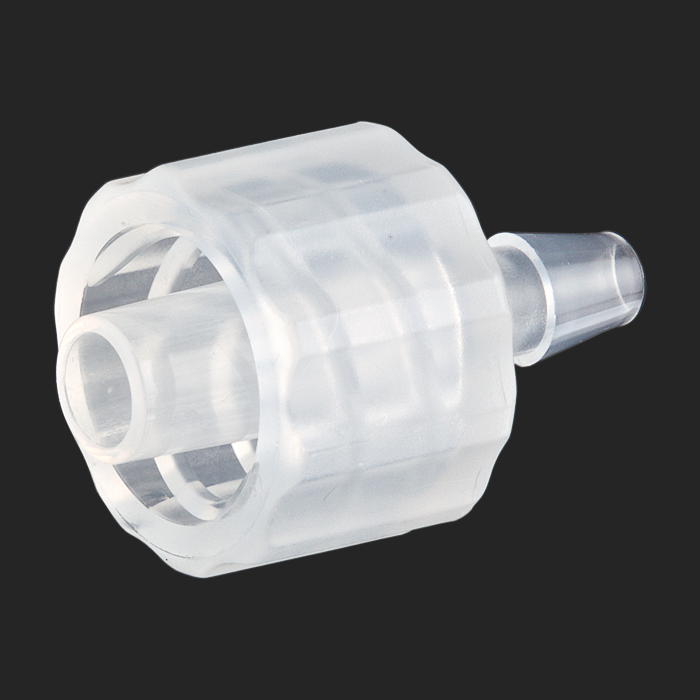

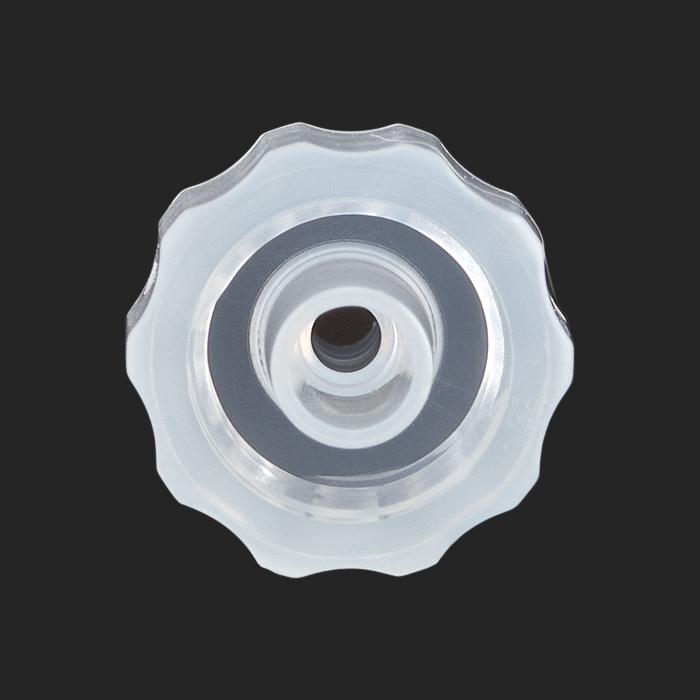

The 47452‑34 adapter features a male Luer Lock connection on one side and a hose barb connection on the other side designed to accommodate 3/32" (2.4 mm) ID tubing.
This adapter includes a large through hole measuring 0.163" (4.15 mm), supporting efficient low‑restriction fluid transfer in laboratory applications.
Tubing is secured by sliding it over the barbed fitting to help maintain dependable tubing retention during low‑pressure fluid transfer operations.
This adapter is especially useful when connecting syringe filters or other devices equipped with female Luer Lock or Luer slip ports to systems using 3/32" ID tubing.
Manufactured from chemically resistant polypropylene material, this adapter is suitable for a broad range of laboratory fluid handling applications where durable, lightweight polymer fittings are preferred.
Key Benefits
Male Luer Lock to 3/32" barbed adapter configuration
Large 0.163" (4.15 mm) through hole design
Compatible with syringe filters and Luer devices
Hose barb fitting for secure tubing retention
Chemically resistant polypropylene construction
Suitable for low‑pressure laboratory fluidics
Lightweight polymer fitting construction
Ideal for syringe filter and tubing connections

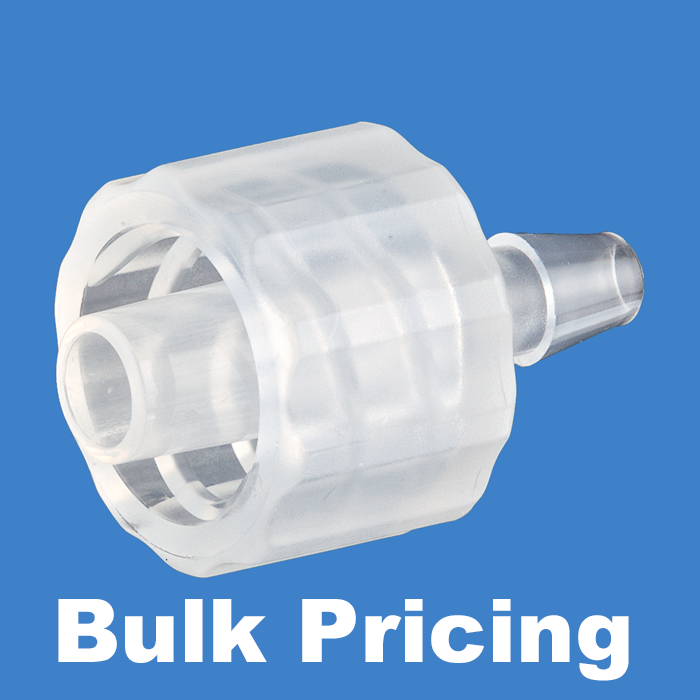

Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Luer to barbed tubing adapter
Material: Polypropylene
Connection Style 1: Male Luer Lock connection
Connection Style 2: Hose barb connection
Tubing Compatibility: 3/32" (2.4 mm) ID tubing
Through Hole Diameter: 0.163" (4.15 mm)
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Applications
Low‑pressure HPLC systems
Syringe filter connections
Laboratory solvent transfer
Analytical fluid handling systems
Sample transfer applications
Laboratory tubing integration
Usage Notes
Designed for low‑pressure applications
Compatible with female Luer Lock and Luer slip ports
Tubing secures by sliding over barbed fitting
Suitable for 3/32" (2.4 mm) ID tubing
Lightweight and chemically resistant construction
Suitable for laboratory fluid transfer systems
Not intended for UHPLC ultra‑high‑pressure applications
