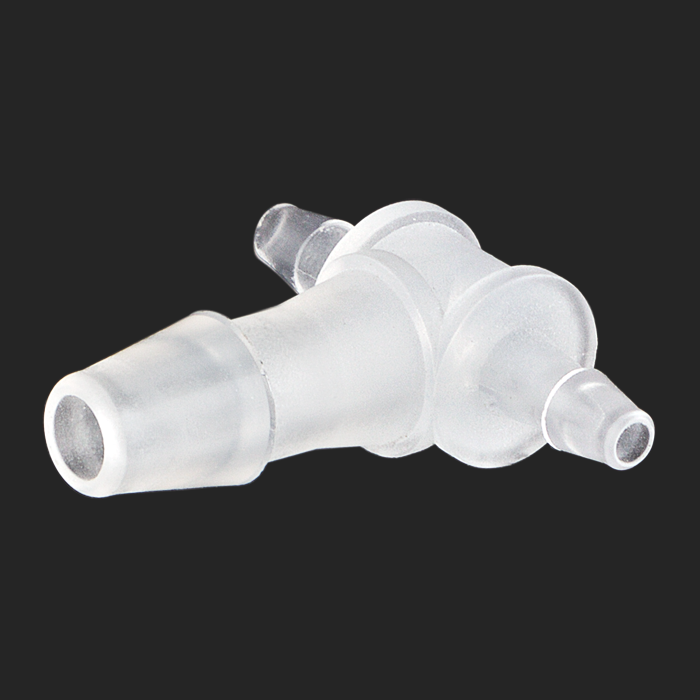

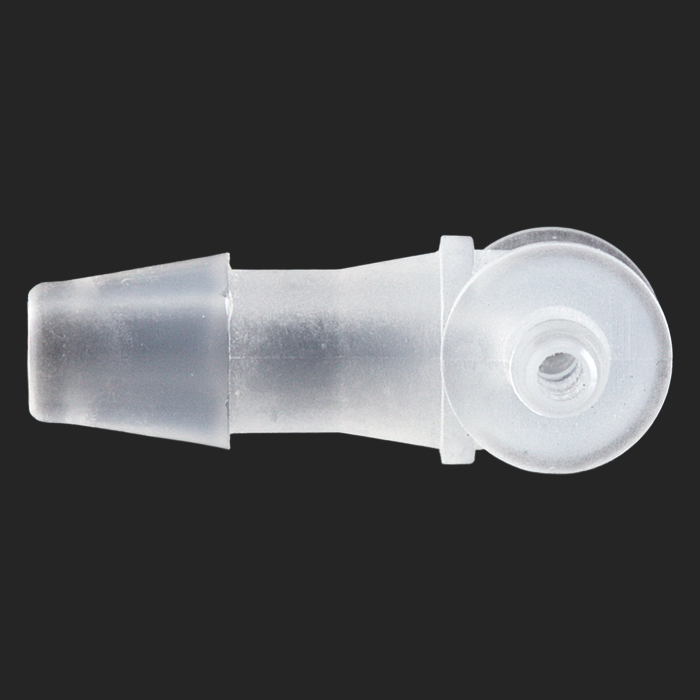

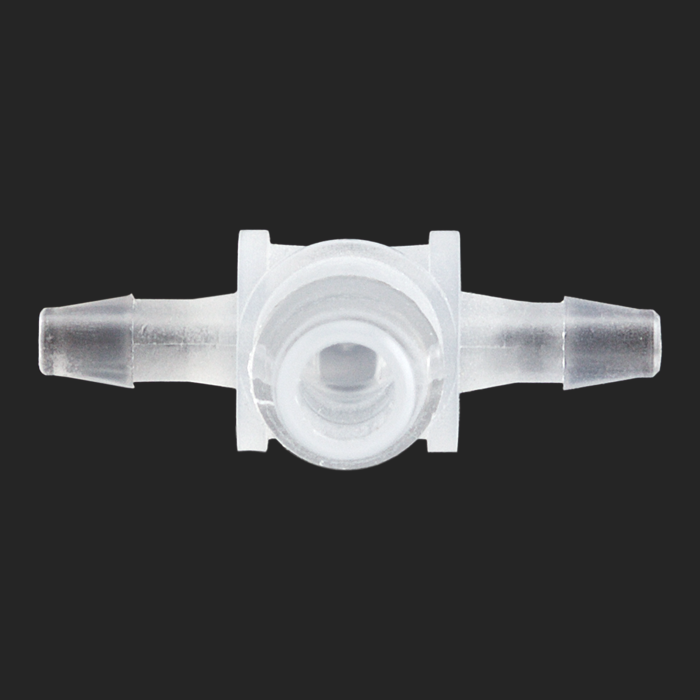

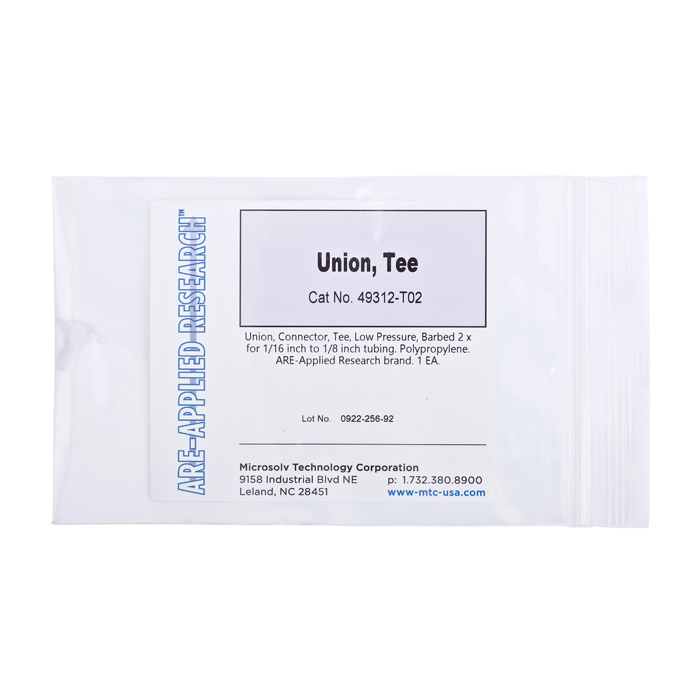

CUSTOM ITEM: Union, connector, Tee, low pressure, 2 barbed 1/16 inch to one 1/8 tubing connection. Polypropylene. ARE-Applied Research brand. Bulk Price.
Additional Info:
Low‑pressure polypropylene Tee union adapters are designed for connecting flexible tubing in laboratory fluid transfer systems requiring dependable low‑pressure flow distribution. The Tee configuration allows fluid flow to be split into multiple directions or combined from separate flow paths into a single outlet stream.
The 49312‑T02 Tee connector features two barbed fittings for 1/16" ID tubing and one barbed fitting for 1/8" ID tubing, allowing adaptable tubing size transitions within laboratory fluid handling systems.
Manufactured from chemically resistant polypropylene, this Tee adapter is suitable for low‑pressure laboratory and HPLC applications requiring dependable flexible tubing connections.
Key Benefits
Tee configuration for flow splitting or combining
Two barbed fittings for 1/16" tubing
One barbed fitting for 1/8" tubing
Polypropylene construction for chemical resistance
Simple push‑on tubing installation
Suitable for low‑pressure laboratory fluidics
Ideal for tubing size transition applications

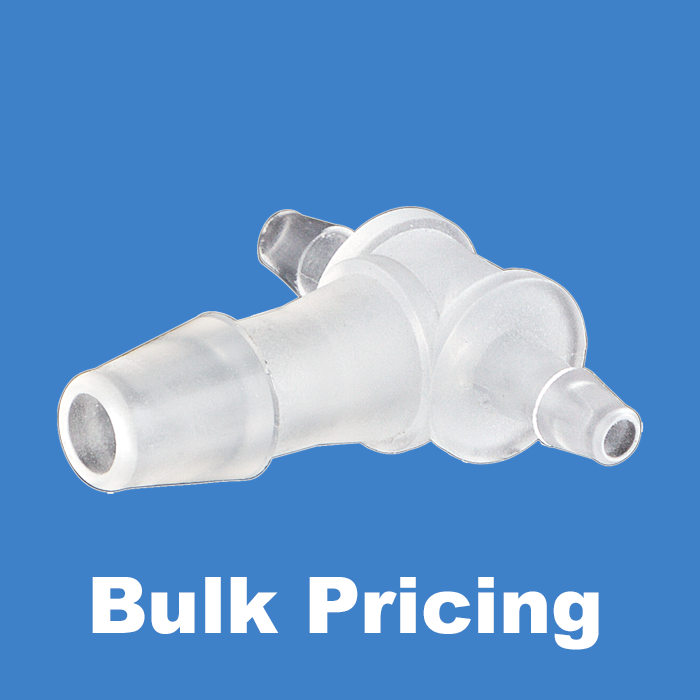

Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Tee union adapter
Material: Polypropylene
Connection Configuration: Two 1/16" barbs to one 1/8" barb
Connection Type: Barbed fittings
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Usage Notes
For low‑pressure fluidic applications
Designed for flexible tubing connections
Suitable for blending or splitting liquid flow
Compatible with 1/16" ID and 1/8" ID tubing
Suitable for laboratory fluid transfer systems
Not intended for high‑pressure UHPLC applications
Resources & Ordering Options
View Economical 10/Pack Polypropylene Tee Union Adapters for 1/16" to 1/8" Tubing Connections
View Key Differences Between High‑Pressure and Low‑Pressure Unions and Adapters
Custom Item Pricing Information
