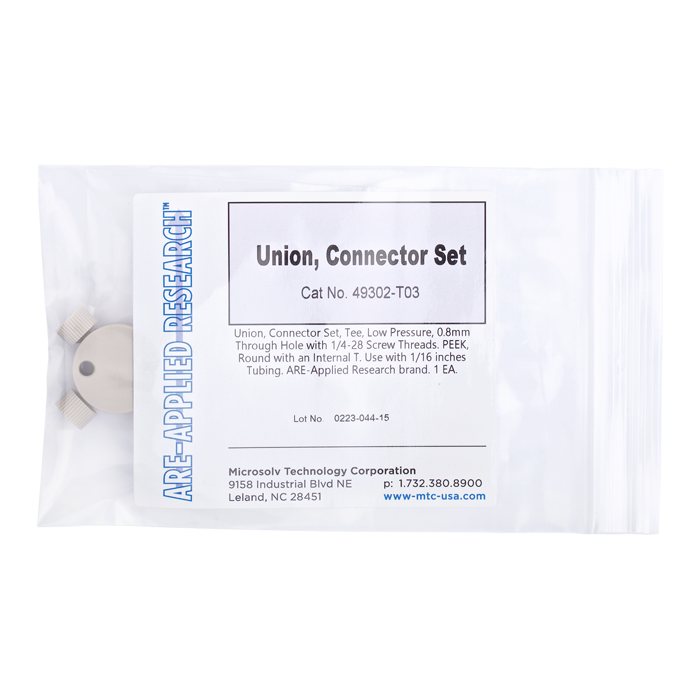

Catalog Number - 49302-T03

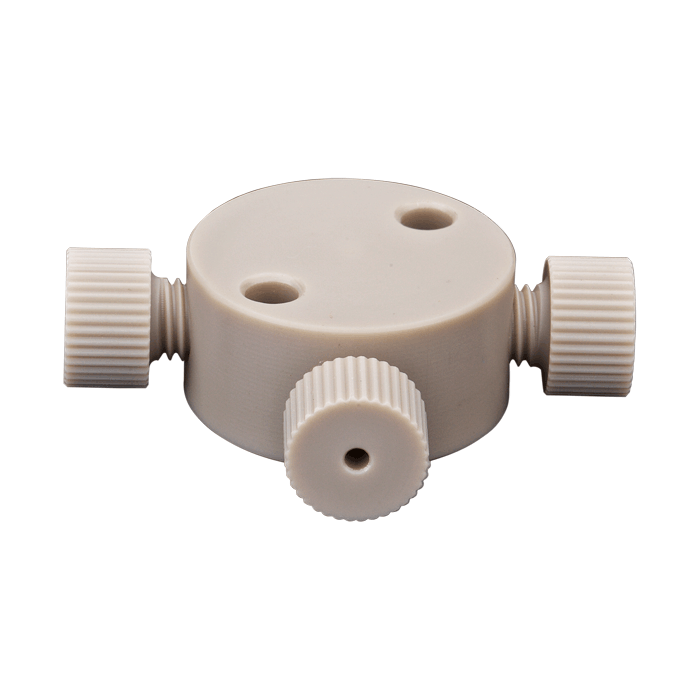

Low‑pressure PEEK Tee union connector sets are designed for connecting three pieces of 1/16" tubing in laboratory and analytical fluidic systems requiring chemically resistant, metal‑free flow path components. The 0.8 mm (0.031") through hole design and standard 1/4‑28 screw threads provide dependable low‑pressure tubing connections.

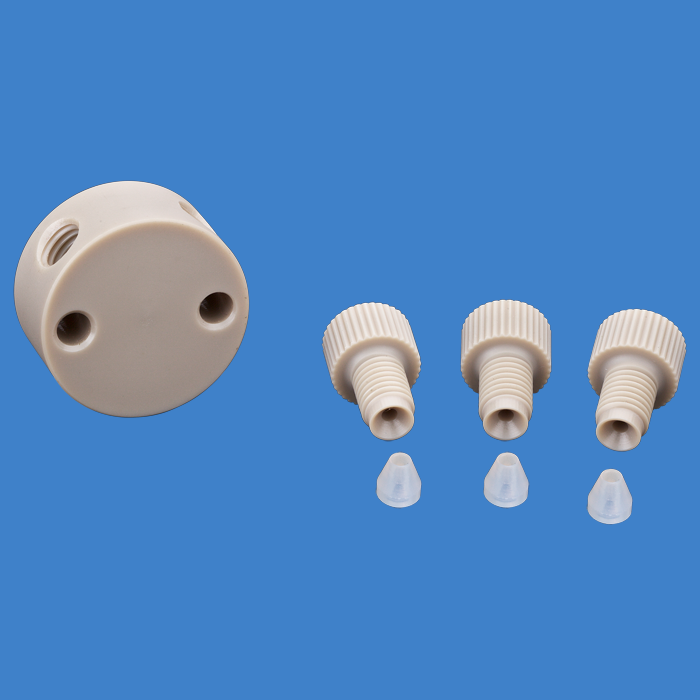

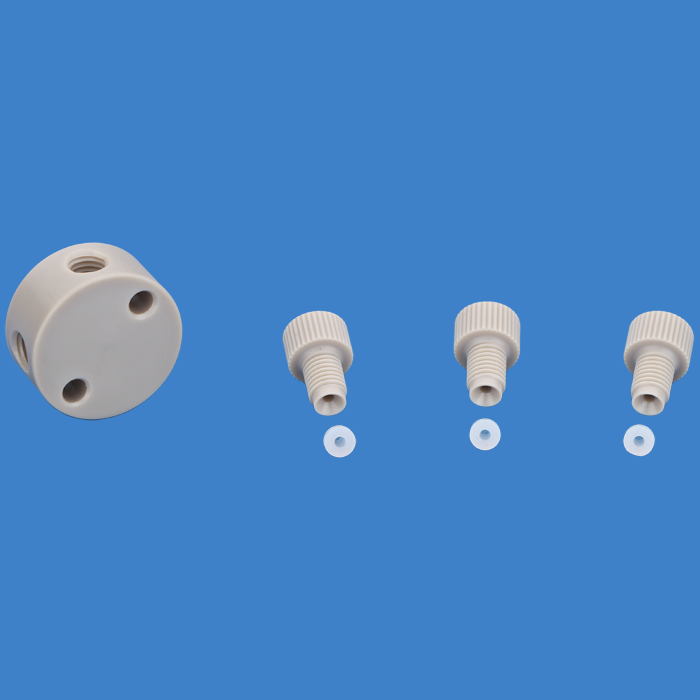

The 49302‑T03 includes one Tee union body, three finger‑tight fittings, and three matching polyethylene conical ferrules configured with a standard pilot length for simplified installation and reliable sealing performance.

This Tee union contains two internal 90° flow path turns that allow either blending of two incoming fluid streams or splitting of one incoming stream into two outgoing flow paths, depending on system flow direction.

Key Benefits

• Tee configuration for flow splitting or blending

• All‑PEEK fluidic construction

• Includes finger‑tight fittings and matching ferrules

• Standard pilot length design

• Chemically resistant metal‑free flow path

• Suitable for low‑pressure laboratory fluidics

• Compatible with 1/16" tubing

• Ideal for flow distribution applications

Specifications

• Product Type: Tee union connector set

• Material: PEEK

• Ferrule Material: Polyethylene

• Through Hole Diameter: 0.8 mm / 0.031"

• Thread: 1/4‑28

• Configuration: Internal Tee (T)

• Tubing Compatibility: 1/16" tubing

• Maximum Temperature: 100°C

• Maximum Pressure: 1,000 psig

• Pack Size: 1 each

Usage Notes

• For low‑pressure fluidic applications

• Designed for connecting three pieces of 1/16" tubing

• Suitable for blending or splitting liquid flow

• Compatible with standard 1/4‑28 threaded fittings

• Not intended for high‑pressure UHPLC applications

Resources & Ordering Options

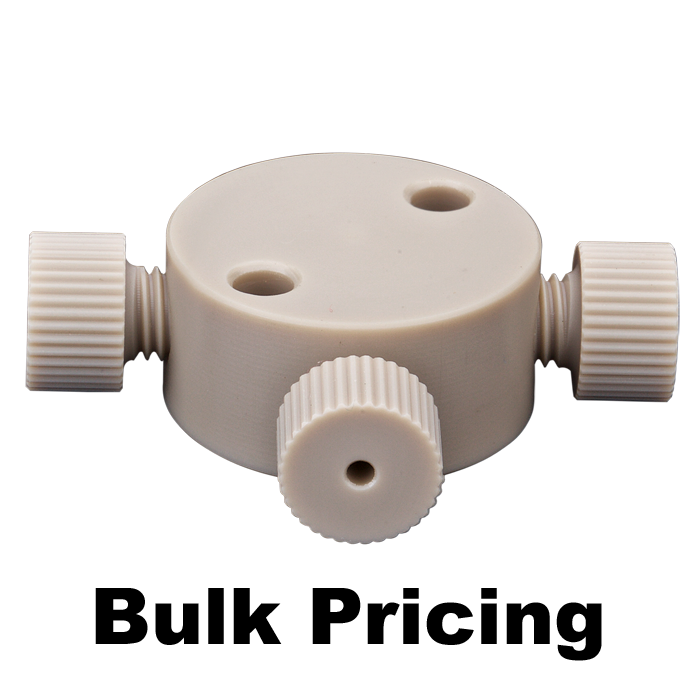

• View Economical 10/Pack Low‑Pressure PEEK Tee Union Connector Sets with 1/4‑28 Threads
