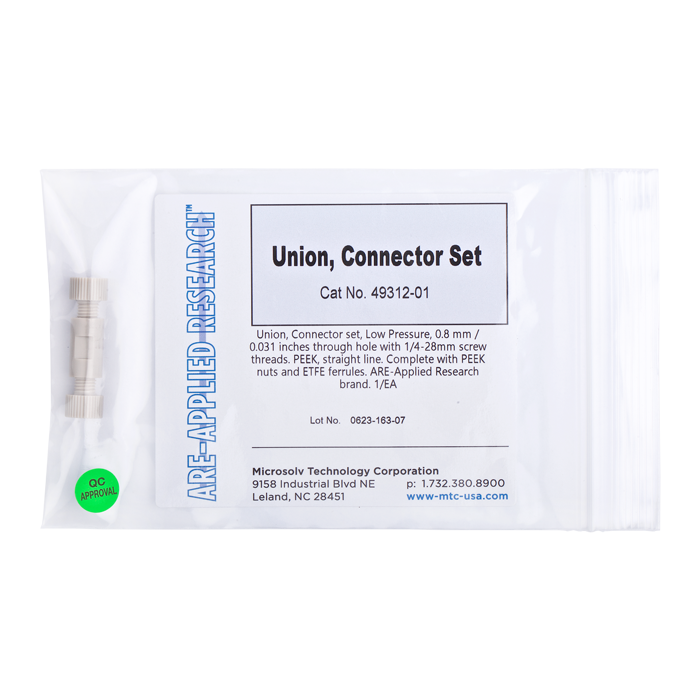

Union, connector set, low pressure, 0.8 mm / 0.031 inch through hole with 1/4-28 screw threads. PEEK, straight line. Complete with PEEK nuts and ETFE ferrules. ARE-Applied Research brand. 1 each.
Additional Info:
Low‑pressure PEEK union connector sets are designed for connecting 1/16" tubing in analytical and laboratory fluidic systems requiring chemically resistant, metal‑free flow path components. The 0.8 mm (0.031") through hole design and standard 1/4‑28 screw threads provide dependable low‑pressure tubing connections.

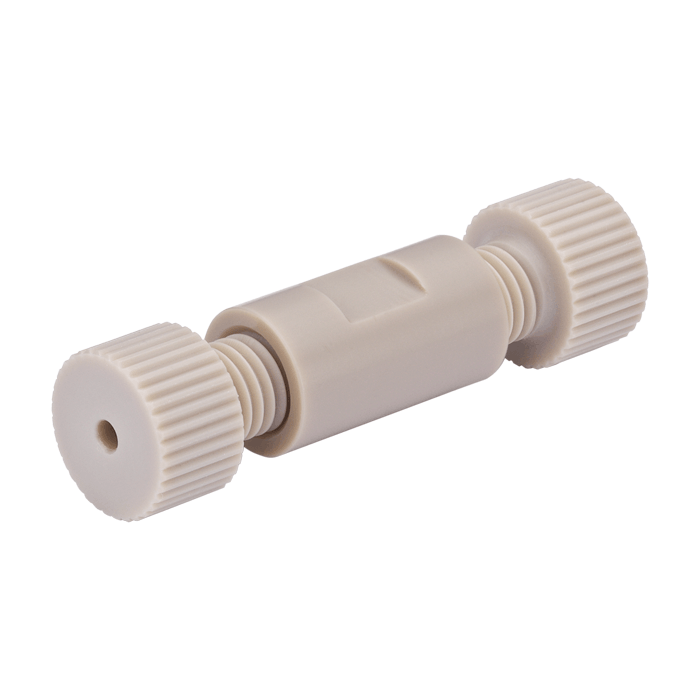

The 49312‑01 includes one straight‑line PEEK union, two finger‑tight PEEK fittings, and separate ETFE ferrules for reliable tubing connections and simplified installation procedures.
The flat sections on both the union body and connector nuts allow optional wrench use for an additional 1/8 clockwise turn to improve sealing performance or slight counterclockwise loosening when fittings become difficult to remove by hand.
Key Benefits
Complete all‑PEEK union connector set
Straight‑line union configuration
Includes PEEK nuts and ETFE ferrules
Finger‑tight installation design
Flat sections allow optional wrench tightening
Chemically resistant metal‑free flow path
Suitable for low‑pressure laboratory fluidics

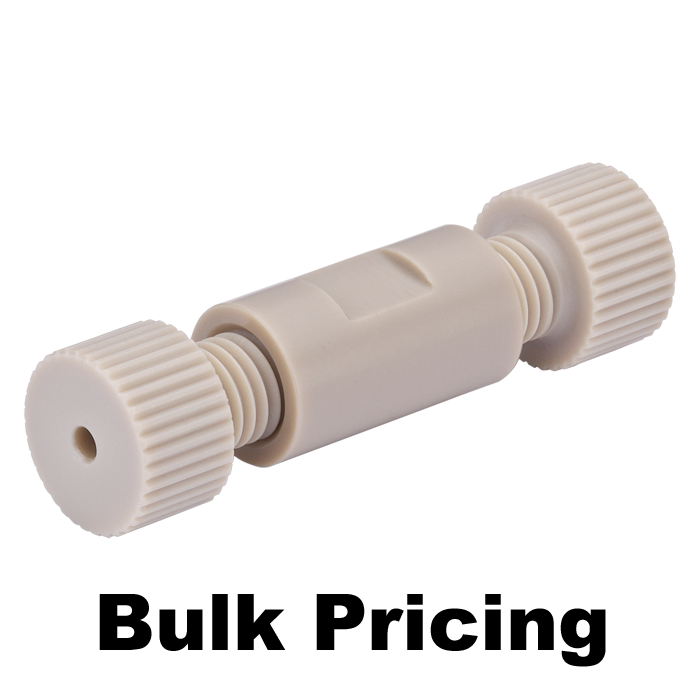

Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Low‑pressure union connector set
Material: PEEK
Ferrule Material: ETFE
Tubing Size Compatibility: 1/16" OD
Through Hole Diameter: 0.8 mm / 0.031"
Thread: 1/4‑28
Configuration: Straight line
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Usage Notes
For low‑pressure fluidic applications
Designed for connecting two pieces of 1/16" tubing
Compatible with standard 1/4‑28 threaded systems
Finger‑tight operation with optional wrench assist
