Adapter, for use with low to medium pressure HPLC. 10-32 female to 1/4-28 male connection, 0.40 mm / 0.016 bore size. PEEK. ARE-Applied Research brand. 5/PK.
Additional Info:
Low‑ to medium‑pressure PEEK adapters are designed for laboratory and analytical fluidic systems requiring chemically resistant, metal‑free transitions between different HPLC thread standards. The 0.40 mm (0.016") bore size supports dependable low dispersion fluid transfer for analytical applications.

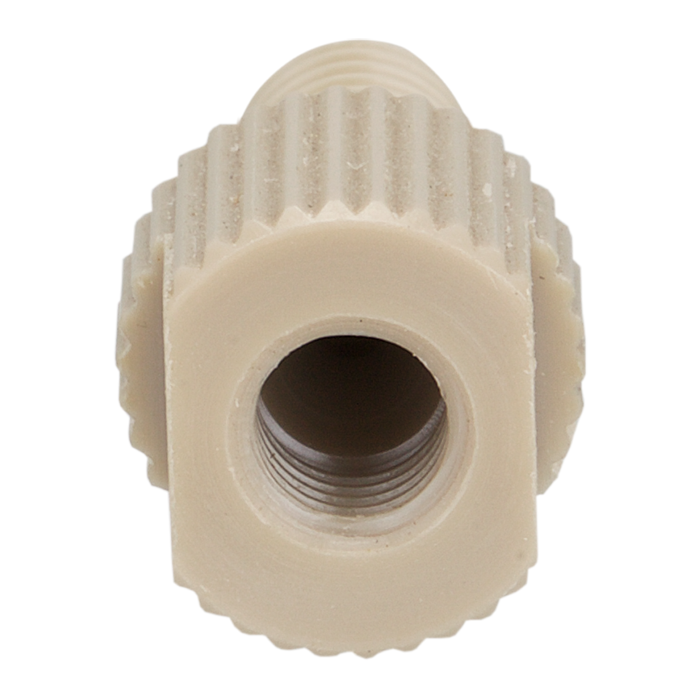

The 47451‑41‑005 (5/Pack) adapters feature a 10‑32 threaded male connector on one side and a 1/4‑28 threaded female port on the other, allowing convenient integration between different HPLC tubing and fitting standards commonly used in laboratory systems.
These adapters are especially useful for medium‑ and low‑pressure applications where a 10‑32 male nut connection must interface with an existing 1/4‑28 female port.
Manufactured from chemically resistant all‑PEEK material, these adapters are suitable for laboratory applications requiring durable, metal‑free fluid path components and dependable sealing performance.

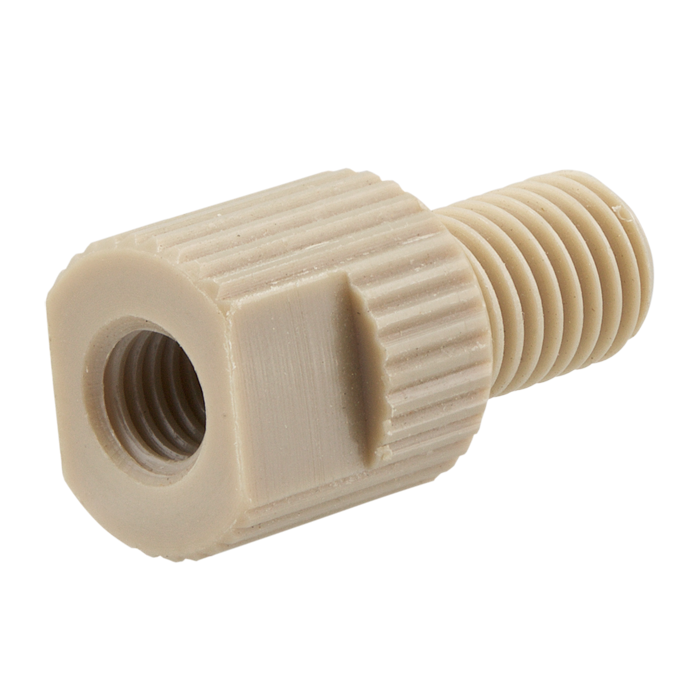

The knurled adapter body includes a flat section that allows use of a wrench for additional tightening or easier removal of tight fittings. The flat section may also be used to stabilize the adapter while tightening compatible male nuts.
Key Benefits
Converts 10‑32 male connections to 1/4‑28 female ports
Chemically resistant all‑PEEK construction
Low dispersion 0.40 mm / 0.016" bore
Suitable for low‑ to medium‑pressure HPLC systems
Knurled body for convenient installation
Flat wrench section for additional tightening control
Ideal for HPLC thread transition applications
5/Pack configuration for laboratory replacement needs
Specifications
Product Type: Thread conversion adapter
Material: PEEK
Bore Size: 0.40 mm / 0.016"
Connection Configuration: 10‑32 male to 1/4‑28 female
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig
Pack Size: 5
Applications
HPLC tubing thread conversion
Analytical fluidic system integration
Low‑dispersion laboratory fluid transfer
Connecting 10‑32 fittings to 1/4‑28 ports
Instrument fluidic connections
Laboratory tubing transitions
Usage Notes
Designed for low‑ to medium‑pressure applications
Compatible with standard 10‑32 male fittings
Suitable for 1/4‑28 female ports
Wrench flats allow additional tightening control
Suitable for analytical HPLC systems
Not intended for UHPLC ultra‑high‑pressure applications
