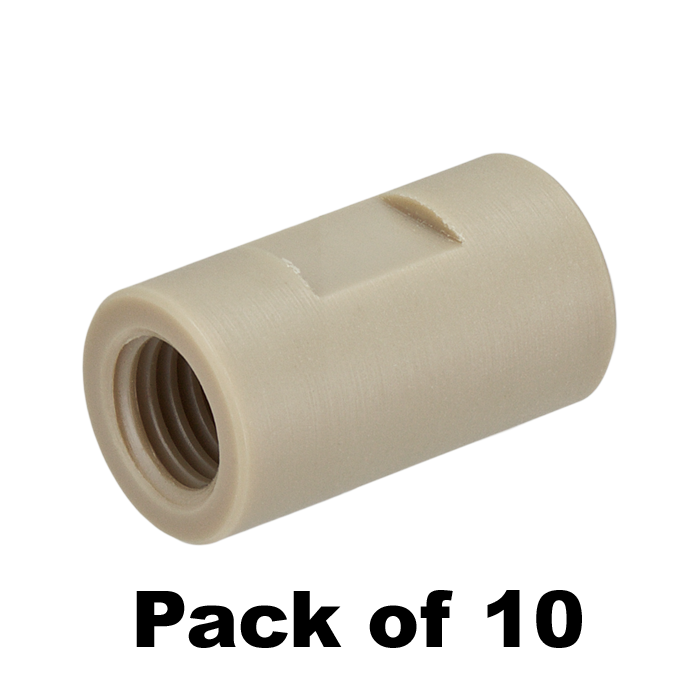

Union, Connector, low pressure, 0.8 mm / 0.031 inch through hole with 1/4-28 screw threads. PEEK, straight line. ARE-Applied Research brand. 10/PK.
Additional Info:
Low‑pressure PEEK unions are designed for connecting 1/16" tubing in analytical and laboratory fluidic systems requiring chemically resistant, metal‑free flow path components. The 0.8 mm (0.031") through hole design and standard 1/4‑28 screw threads provide dependable low‑pressure tubing connections with minimized dead volume.
The 49312‑02‑010 (10/Pack) straight‑line unions are suitable for connecting either PEEK or stainless‑steel tubing in low‑pressure zones of HPLC systems and related laboratory fluid handling applications.
These fittings are designed for use with separate finger‑tight connector nuts, such as compatible 1/4‑28 PEEK tubing connector fittings sold separately.
Key Benefits
Low dead volume union design
Straight‑line tubing connection configuration
Compatible with PEEK or stainless‑steel tubing
Chemically resistant PEEK construction
Standard 1/4‑28 screw thread compatibility
Suitable for low‑pressure HPLC applications
10/Pack configuration for laboratory replacement needs
Specifications
Product Type: Low‑pressure union connector
Material: PEEK
Through Hole Diameter: 0.8 mm / 0.031"
Thread: 1/4‑28
Configuration: Straight line
Tubing Compatibility: PEEK or stainless steel tubing
Pack Size: 10
Usage Notes
For low‑pressure fluidic applications
Designed for connecting 1/16" tubing
Compatible with standard 1/4‑28 threaded fittings
Requires separate connector nuts sold separately
Not intended for high‑pressure UHPLC applications
