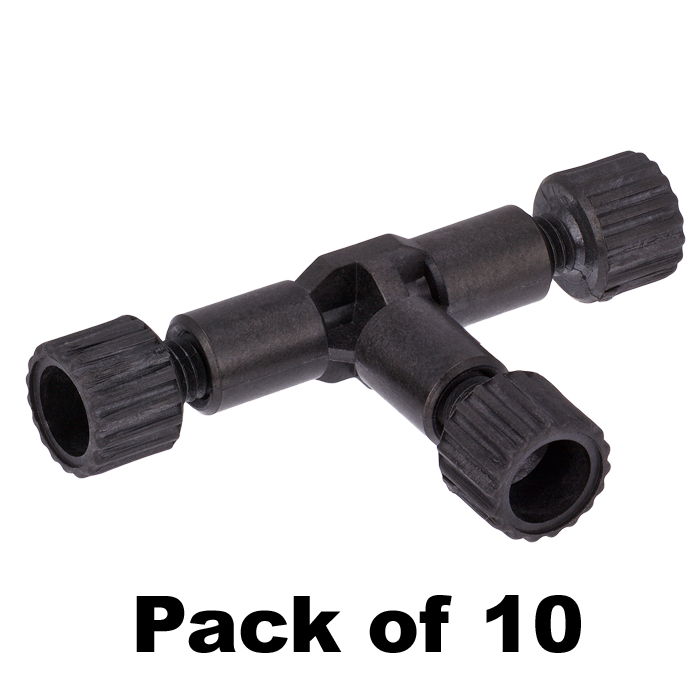

Union, Connector Kits, Tee, high pressure, 0.50 mm / 0.020 through hole with 10-32 screw threads. Carbon PEEK Endure, with connector nuts. Use with 1/16 tubing. ARE-Applied Research brand. 10 Sets/PK.
Additional Info:
High‑pressure Carbon PEEK Endure Tee union connector kits are designed for connecting tubing in analytical HPLC systems requiring chemically resistant, reinforced metal‑free flow path components. The low dead volume 0.50 mm (0.020") through hole design and standard 10‑32 screw threads provide dependable tubing connections while minimizing system dispersion.
The 47302‑12‑010 (10/Pack) Tee union kits are suitable for connecting PEEK or stainless‑steel tubing on all ports in high‑pressure zones of HPLC systems and related analytical fluid handling applications.
These Tee fittings contain an internal T flow pattern commonly used to split one flow stream into two directions or combine two incoming streams into one outlet flow path.
Manufactured from Carbon PEEK Endure material, these fittings are reinforced with carbon fiber to provide increased strength, stiffness, and improved load‑carrying capability compared to standard PEEK materials.
Key Benefits
High‑pressure Tee configuration for flow splitting or combining
Carbon fiber reinforced PEEK Endure construction
Low dead volume design
Includes finger‑tight connector nuts
Compatible with PEEK or stainless‑steel tubing
Standard 10‑32 screw thread compatibility
Suitable for analytical HPLC applications
Enhanced mechanical strength and stiffness
10 Sets/Pack configuration for laboratory replacement needs
Specifications
Product Type: High‑pressure Tee union connector kit
Material: Carbon PEEK Endure
Through Hole Diameter: 0.50 mm / 0.020"
Thread: 10‑32
Configuration: Internal Tee (T)
Tubing Compatibility: 1/16" tubing
Dead Volume: 1.17 µL
Included Components: Ten Tee union 47302‑11 and Thirty finger‑tight connector nuts 47301‑05
Pack Size: 10 Sets
Usage Notes
For high‑pressure HPLC applications
Designed for flow splitting or stream combining
Compatible with PEEK or stainless‑steel tubing
Suitable for analytical laboratory systems
Carbon fiber reinforcement improves mechanical strength
Not recommended for UHPLC applications
