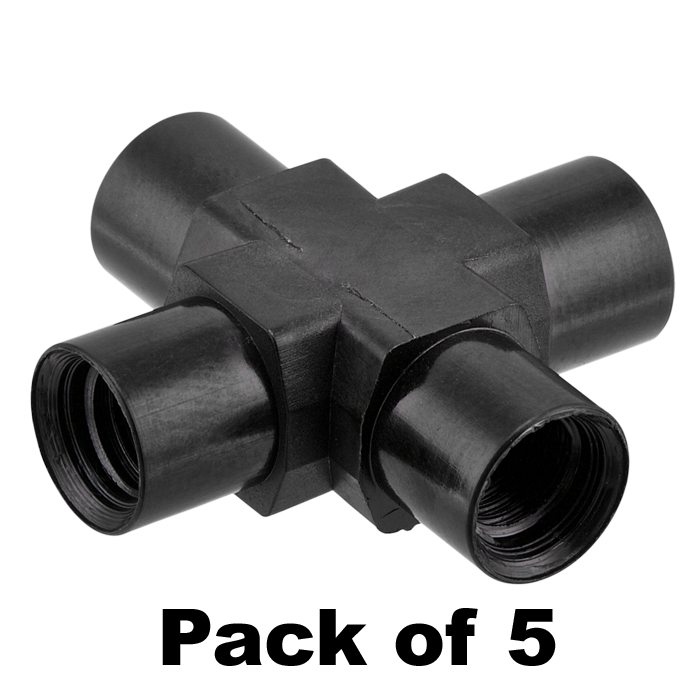

Union, Connector, Cross, high pressure, 1.0 mm / 0.040 inch through hole with 1/4-28 screw threads, Carbon PEEK Endure, Round with an Internal X. Use with 1/16 tubing. ARE-Applied Research brand. 5/PK.
Additional Info:
High‑pressure Carbon PEEK Endure Cross unions are designed for connecting tubing in analytical HPLC systems requiring chemically resistant, reinforced metal‑free flow path components. The 1.0 mm (0.040") through hole design and standard 1/4‑28 screw threads provide dependable tubing connections for demanding laboratory applications.
The 49302‑CX‑01‑005 (5/Pack) Cross unions are suitable for connecting PEEK or stainless steel tubing with compatible fittings on all ports in high‑pressure zones of HPLC systems and related analytical fluid handling applications.
These Cross fittings contain an internal X flow pattern commonly used to split one flow stream into multiple directions or combine two or three incoming streams into one outlet flow path.
Manufactured from Carbon PEEK Endure material, these fittings are reinforced for increased strength, stiffness, and improved load‑carrying capability compared to standard PEEK materials.
Key Benefits
High‑pressure Cross configuration for flow splitting or combining
Internal X flow pattern design
Carbon PEEK Endure construction for enhanced durability
Compatible with PEEK or stainless steel tubing
Standard 1/4‑28 screw thread compatibility
Suitable for analytical HPLC applications
Ideal for multi‑directional flow distribution
5/Pack configuration for laboratory replacement needs
Specifications
Product Type: Cross union connector
Material: Carbon PEEK Endure
Through Hole Diameter: 1.0 mm / 0.040"
Thread: 1/4‑28
Configuration: Internal Cross (X)
Tubing Compatibility: 1/16" tubing
Pack Size: 5
Usage Notes
For high‑pressure HPLC applications
Designed for multi‑directional flow splitting or stream combining
Compatible with PEEK or stainless steel tubing
Suitable for analytical laboratory systems
Reinforced Carbon PEEK construction improves durability
Not recommended for UHPLC applications
