CUSTOM ITEM: Tubing Connector Nuts, low pressure, 1/16 inch, Delrin, White with 1/4-28 screw threads, for use with flange free, polymeric tubing. ARE-Applied Research brand. Bulk Price.
Additional Info:

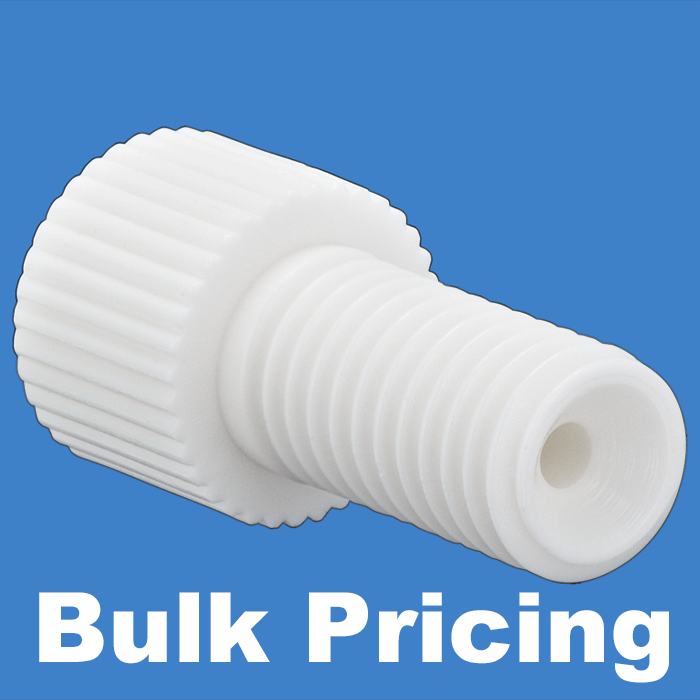

The 45216‑W‑1 Delrin Tubing Connector Nut is a low-pressure fluidic fitting designed for connecting 1/16 inch OD flangeless polymeric tubing in HPLC systems and other fluid handling applications. This finger-tightened connector nut provides a simple, reliable connection method without requiring tubing flanging.
Manufactured from white Delrin™ (polyoxymethylene), this fitting offers high stiffness, low friction, and excellent dimensional stability, making it well suited for low-pressure flow paths while providing a neutral color option for system identification or clean visual organization.
✅ Key Benefits
Flangeless Connection Design Eliminates the need for tubing flanging
Finger-Tight Installation Enables fast, tool-free connections
Standard 1/4‑28 Thread Compatibility Fits common low-pressure HPLC ports
Durable Delrin Construction Provides strength, rigidity, and dimensional stability
Neutral Color Option (White) Supports clean system layout or color-coded workflows
Performance & Design
Material: White Delrin™ (Polyoxymethylene)
High stiffness and strength
Low friction properties
Excellent dimensional stability
Connection Type:
1/4‑28 UNF threaded nut
Designed specifically for flangeless tubing systems
Engineered for:
Quick installation without tools
Reliable sealing when used with proper ferrules
Consistent performance in low-pressure environments
System Role & Integration
Connects 1/16" OD polymeric tubing to system ports
Requires separate ferrules for proper sealing
Used in:
Low-pressure HPLC systems
Sample preparation workflows
General laboratory fluidic applications
⚠️ Usage Notes
Tubing must NOT be flanged (flangeless only)
Ferrules are required for proper sealing
Designed for low-pressure applications only
Pressure Limit: ~500 psi (34.5 bar)
Maximum Temperature: 100°C
⚠️ Avoid exposure to:
Chlorinated solvents
Strong acids (Delrin material sensitivity)
Specifications
Product Type: Tubing Connector Nut
Material: Delrin™ (Polyoxymethylene)
Color: White
Tubing Size: 1/16 inch OD
Thread Type: 1/4‑28 UNF
Connection Type: Flangeless
Pressure Limit: ~500 psi (34.5 bar)
Max Temperature: 100°C
System Type: Low pressure
Brand: ARE‑Applied Research™
Packaging: Bulk (Custom Item)
Resources & Ordering Options
Custom Item Pricing Information
