Overview
Laboratory professionals often encounter autosampler vials described as 2 mL, 1.8 mL, or 1.5 mL, even though the vials may appear identical in size and shape. This can create confusion when selecting vials for HPLC, UHPLC, LC-MS, GC, and other analytical applications.
In most cases, these designations do not refer to different vial dimensions. Instead, they typically reflect the difference between the vial's maximum physical capacity and its practical working volume.
Maximum Capacity vs. Working Volume
A standard 12 × 32 mm autosampler vial can generally hold approximately 2 mL of liquid if filled completely to the top.
However, filling a vial to its absolute maximum capacity is usually not recommended for routine autosampler use.
When an autosampler needle enters a capped vial, it displaces a small amount of liquid and internal volume. If the vial is filled to the brim, this displacement can cause:
- Sample loss
- Liquid overflow
- Increased septa pressure
- Sample contamination risks
- Inconsistent injection conditions
For these reasons, laboratories typically operate below the maximum capacity of the vial.
Understanding Nominal Volume
The terms 1.8 mL and 1.5 mL generally refer to recommended or nominal working volumes rather than the absolute capacity of the vial.
These values represent practical fill levels that provide sufficient headspace for:
- Needle penetration
- Pressure equalization
- Sample handling
- Reliable autosampler operation
As a result, the same physical vial may be marketed using different volume descriptions depending on the manufacturer or intended application.

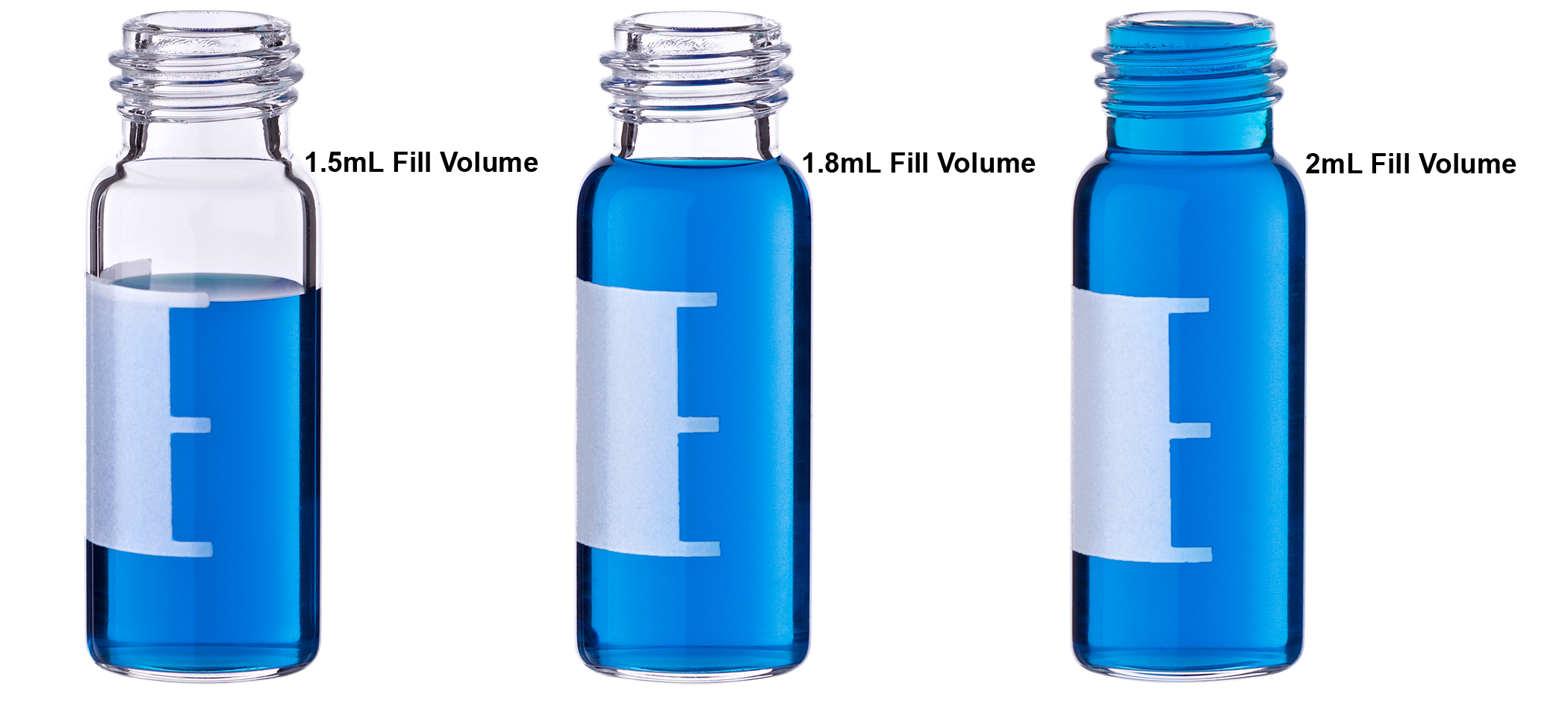

Typical Volume Interpretation
1.5 mL
Refers to:
- More conservative fill level
- Additional headspace
- Enhanced protection against overfilling
1.8 mL
Refers to:
- Recommended working volume
- Appropriate headspace for most applications
- Common industry designation
2 mL
Refers to:
- Maximum approximate capacity
- Filled nearly to the rim
- Limited headspace available
In many cases, all three volume descriptions may apply to the same vial format.
Why Headspace Matters
Maintaining appropriate headspace can improve sample handling and autosampler performance.
Benefits may include:
- Reduced risk of sample leakage
- Improved pressure balance
- More reliable needle entry
- Less potential for septa deformation
- Improved reproducibility
For routine analytical use, the recommended working volume is generally more important than the maximum physical capacity.
Application Considerations
When selecting autosampler vials, laboratories should consider:
- Injection volume requirements
- Sample availability
- Autosampler needle design
- Septa configuration
- Headspace requirements
A vial described as 1.5 mL, 1.8 mL, or 2 mL may be physically identical and fully compatible with the same autosampler system.
Key Takeaways
- 2 mL typically refers to the maximum vial capacity.
- 1.8 mL and 1.5 mL generally describe recommended working volumes.
- The same 12 × 32 mm vial may be marketed using different volume designations.
- Headspace is important for proper autosampler operation.
- Overfilling can lead to sample displacement and handling issues.
- Working volume is usually more relevant than maximum capacity during routine analysis.
