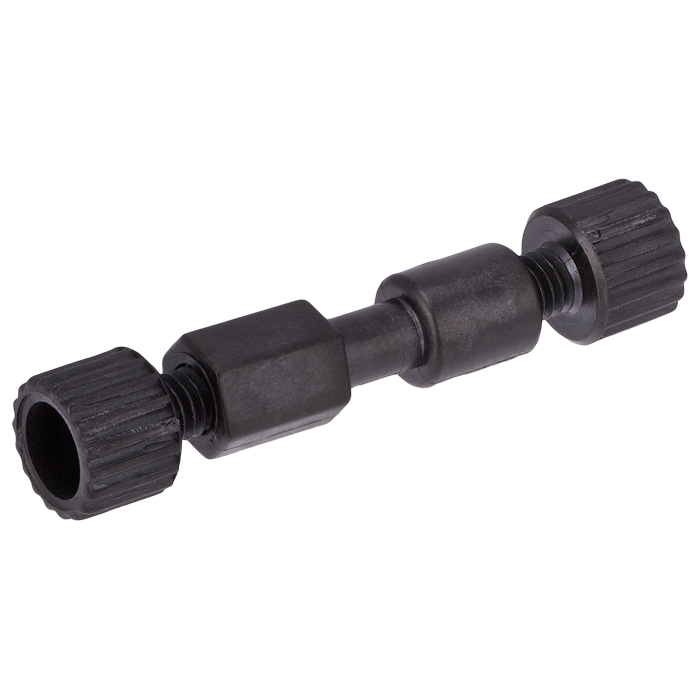

Union, Connector Kits, high pressure, 0.50 mm / 0.020 inch through hole with 10-32 screw threads, Carbon PEEK Endure, straight line with connector nuts. Use with 1/16 tubing. ARE-Applied Research brand. 2 sets / PK.
Additional Info:
High‑pressure Carbon PEEK Endure union connector kits are designed for connecting 1/16" tubing in analytical HPLC systems requiring chemically resistant, reinforced metal‑free flow path components. The 0.50 mm (0.020") through hole design and standard 10‑32 screw threads provide dependable tubing connections while minimizing system dispersion.
The 47302‑02 kit includes two straight‑line unions (47302‑01) and four finger‑tight connector nuts (47301‑01) for simplified installation and reliable sealing performance in high‑pressure HPLC applications.
Manufactured from Carbon PEEK Endure material, these fittings are reinforced with carbon fiber to provide increased strength, stiffness, and improved load‑carrying capability compared to standard PEEK materials.
Key Benefits
High‑pressure straight‑line union kit
Carbon fiber reinforced PEEK Endure construction
Includes connector nuts for complete installation
Compatible with PEEK or stainless‑steel tubing
Chemically resistant metal‑free flow path
Standard 10‑32 screw thread compatibility
Suitable for analytical HPLC applications
Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: High‑pressure union connector kit
Material: Carbon PEEK Endure
Through Hole Diameter: 0.50 mm / 0.020"
Thread: 10‑32
Configuration: Straight line
Tubing Compatibility: 1/16" tubing
Included Components: Two 47302‑01 unions and four 47301‑01 connector nuts
Pack Size: 2
Usage Notes
For high‑pressure HPLC applications
Designed for connecting 1/16" tubing
Compatible with PEEK or stainless‑steel tubing
Suitable for analytical HPLC systems
Carbon fiber reinforcement improves mechanical strength
