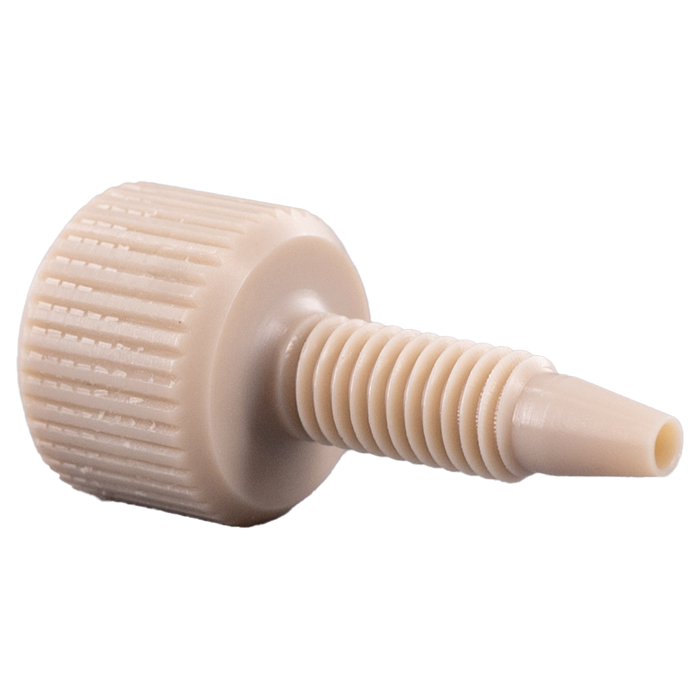

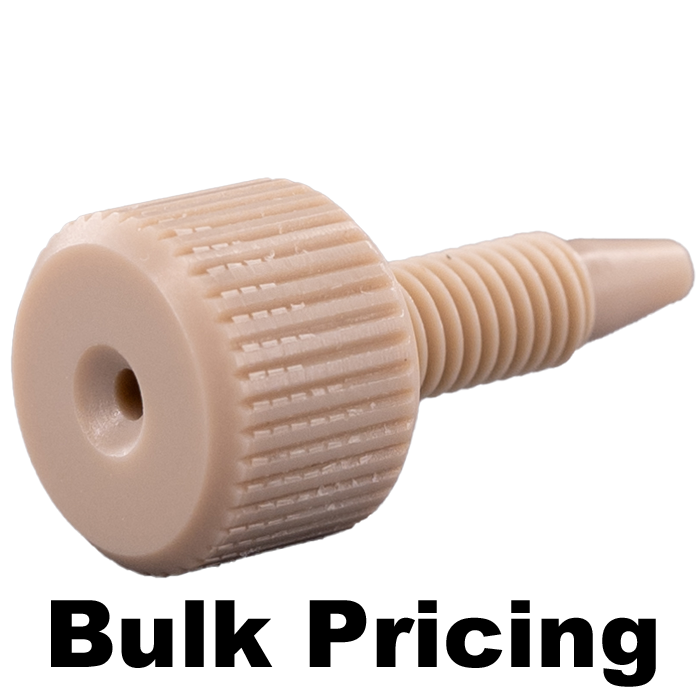

CUSTOM ITEM: Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Natural, standard size head but a long length with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. Bulk Price.
Additional Info:
PEEK tubing connector fittings for 1/16" OD tubing provide reliable high-pressure connections in HPLC systems. Designed for 10‑32 ports, these one-piece fittings are compatible with both PEEK and stainless steel tubing.
The 47320‑03 PEEK Tubing Connector Fitting is engineered for high-pressure applications requiring extended reach, such as deep-threaded ports in columns, unions, or detectors. Its longer body and extended thread length ensure proper tubing seating and secure connections in components where standard-length fittings may not reach adequately.
Manufactured from natural PEEK, this fitting delivers excellent chemical resistance and mechanical durability. The beveled inlet design improves tubing insertion, helping ensure consistent installation even in deeper connection points.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC systems
Extended Length Design Ideal for deep-threaded ports and hard-to-reach connections
Standard Head Size with Long Body Maintains usability while increasing reach
Natural PEEK Construction Provides excellent chemical resistance and durability
Beveled Inlet for Easier Installation Improves tubing insertion and reduces handling difficulty
One‑Piece Fitting Construction Ensures consistent sealing performance
Bulk Custom Item Availability Suitable for specialized applications and flexible ordering
Performance & Design
Material: Natural PEEK
Excellent chemical resistance
Strong mechanical integrity
Suitable for high-pressure applications
Design Features:
Extended length for deep port seating
Standard knurled head for ease of handling

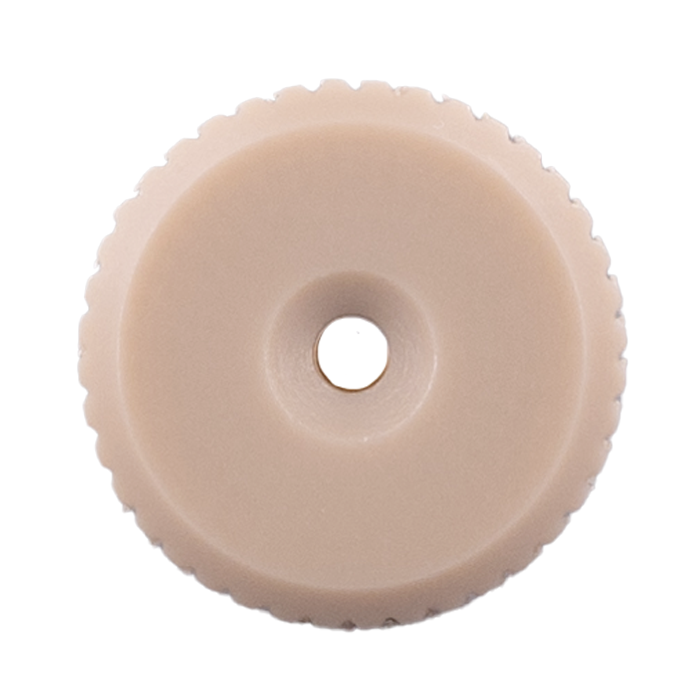

Beveled inlet for smooth tubing insertion
Dimensions:
Head Diameter: 12 mm
Total Length: 25 mm
Thread Length: 16 mm
Connection Type:
10‑32 threaded fitting
Designed for high-pressure systems
Engineered for:
Secure connections in deep-threaded ports
Reliable high-pressure sealing
Consistent installation in extended-reach applications
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel)
Ideal for:
Deep-threaded columns, unions, or detectors
HPLC UHPLC high-pressure zones
Systems requiring extended fitting reach
⚠️ Usage Notes
Compatible with 10‑32 threaded ports
Designed for high-pressure applications
Ensure proper tubing insertion before tightening
Extended length ensures proper seating in deeper connection points
Specifications
Product Type: Tubing Connector Fitting
Material: Natural PEEK
Color: Natural
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Connection Type: High pressure
Design: One-piece, standard head, long length
Head Diameter: 12 mm
Total Length: 25 mm
Thread Length: 16 mm
Brand: ARE‑Applied Research™
Packaging: Bulk (Custom Item)
