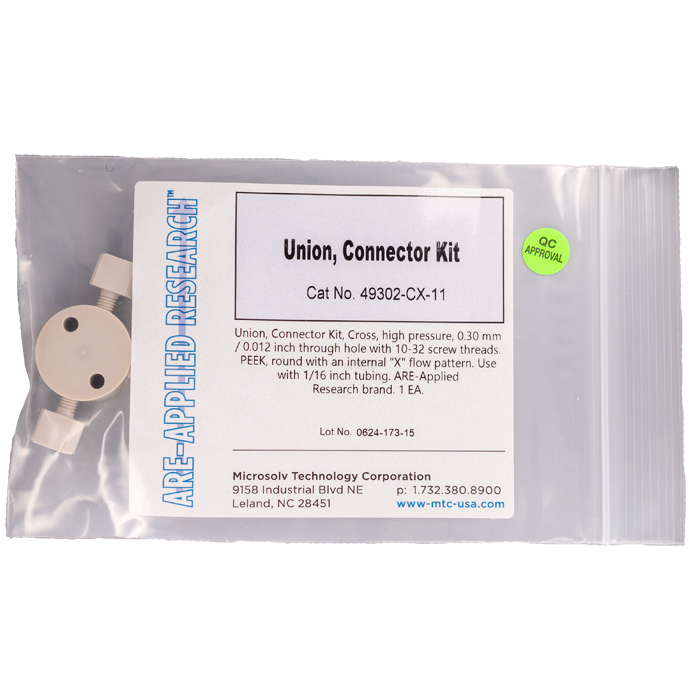

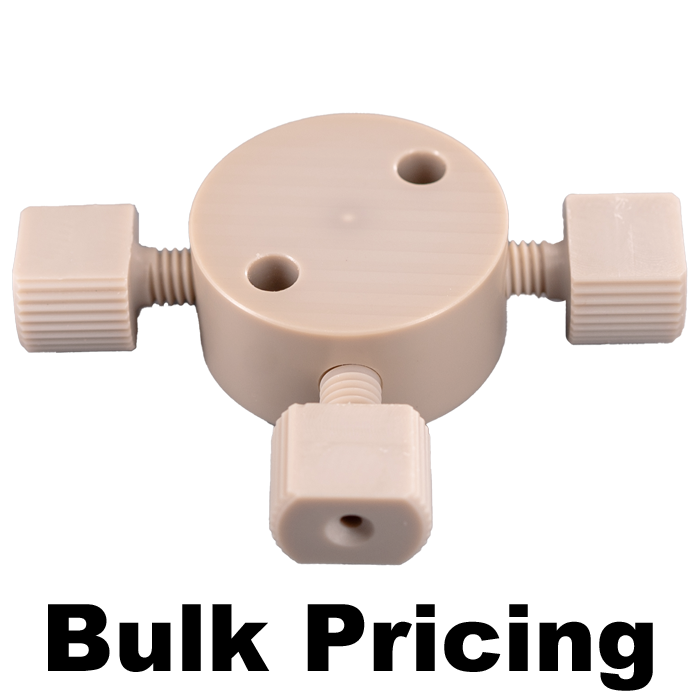

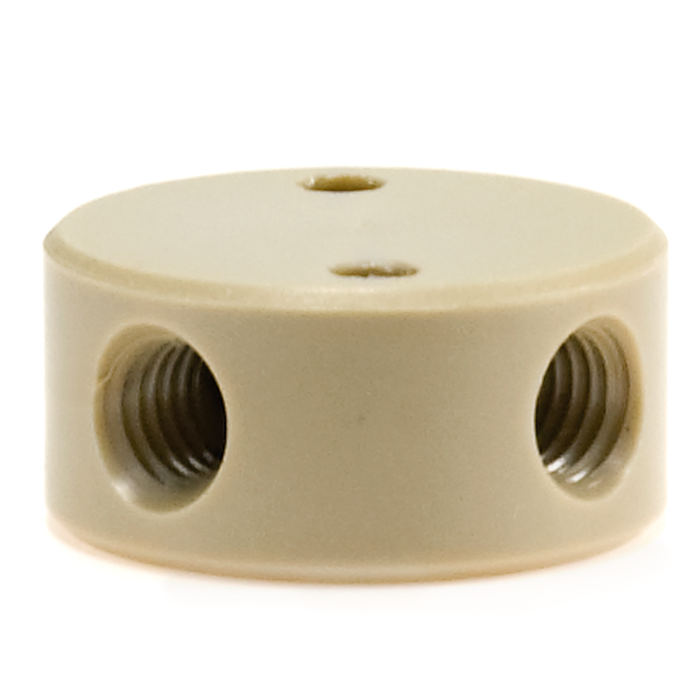

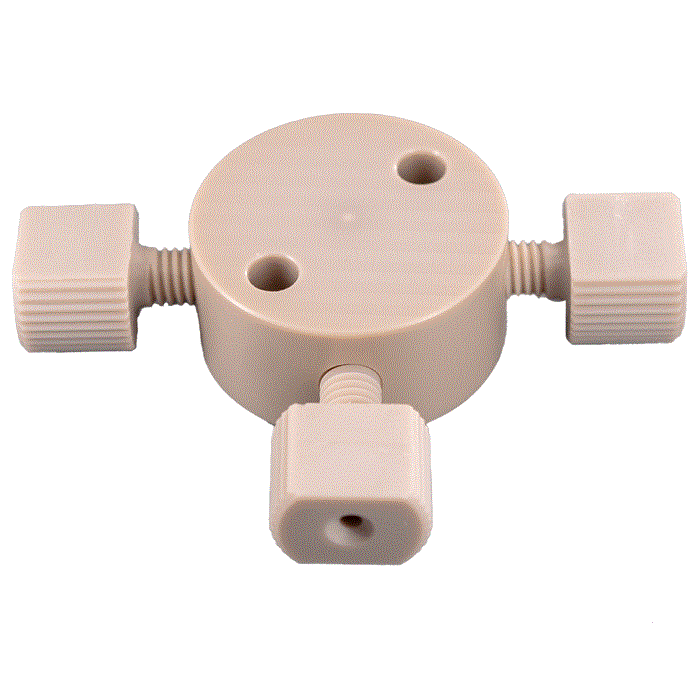

Union, Connector Kit, Cross, high pressure, 0.30 mm / 0.012 inch through hole with 10-32 screw threads. PEEK, round with an internal "X" flow pattern. Use with 1/16 inch tubing. ARE-Applied Research brand. 1 Set / PK.
Additional Info:
High‑pressure PEEK Cross union connector kits are designed for connecting tubing in analytical HPLC systems requiring chemically resistant, metal‑free flow path components. The low dead volume 0.30 mm (0.012") through hole design and standard 10‑32 screw threads provide dependable tubing connections while minimizing system dispersion.
The 49302‑CX‑11 Cross union kit is suitable for connecting PEEK or stainless‑steel tubing with compatible fittings on all ports in high‑pressure zones of HPLC systems and related analytical fluid handling applications.
This Cross fitting contains an internal X flow pattern commonly used to split one flow stream into multiple directions or combine two or three incoming streams into one outlet flow path.
Key Benefits
High‑pressure Cross configuration for flow splitting or combining
Low dead volume design
Internal X flow pattern design
Compatible with PEEK or stainless‑steel tubing
Includes finger‑tight connector nuts
Chemically resistant PEEK construction
Standard 10‑32 screw thread compatibility
Suitable for analytical HPLC applications
Specifications
Product Type: Cross union connector kit
Material: PEEK
Through Hole Diameter: 0.30 mm / 0.012"
Thread: 10‑32
Configuration: Internal Cross (X)
Tubing Compatibility: 1/16" tubing

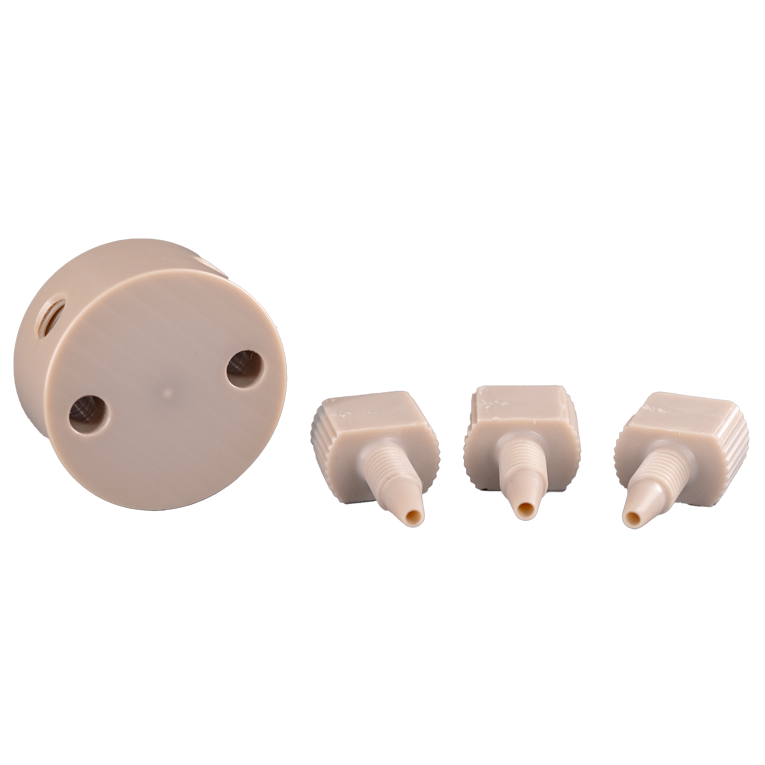

Included Components: Three finger‑tight connectors (nuts) 47301‑05
Pack Size: 1 Set/Pack
Usage Notes
For high‑pressure HPLC applications
Designed for multi‑directional flow splitting or stream combining
Compatible with PEEK or stainless‑steel tubing
Suitable for analytical laboratory systems
Not recommended for UHPLC applications
