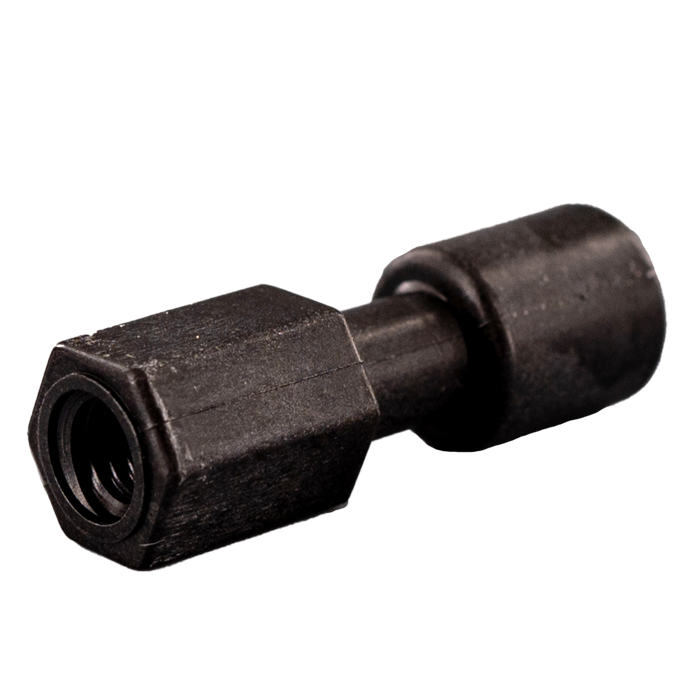

Union, Connector, high pressure, 0.50 mm / 0.020 through hole with 10-32 screw threads, Carbon PEEK Endure, straight line. Use with 1/16 tubing. ARE-Applied Research brand. 5/PK.
Additional Info:

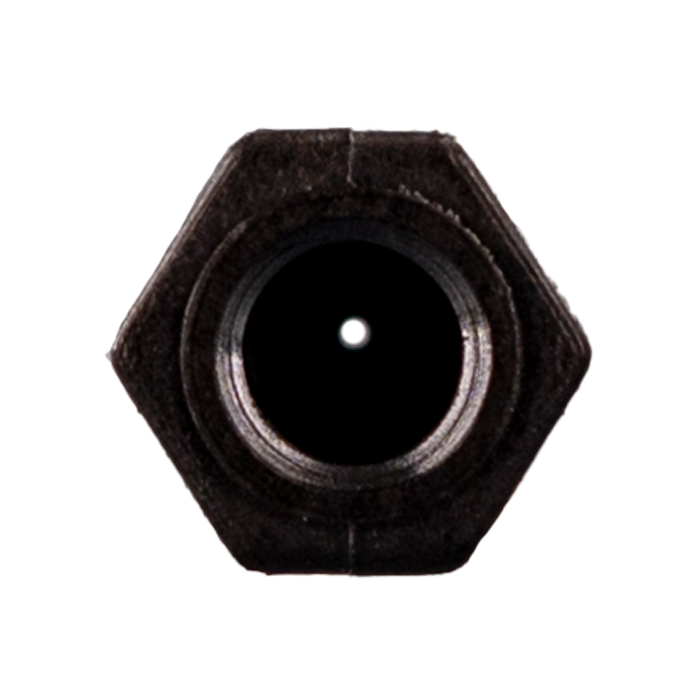

High‑pressure Carbon PEEK Endure unions are designed for connecting 1/16" tubing in analytical HPLC systems requiring chemically resistant, reinforced metal‑free flow path components. The 0.50 mm (0.020") through hole design and standard 10‑32 screw threads provide dependable tubing connections while minimizing system dispersion.
The 47302‑01‑005 (5/Pack) straight‑line unions are suitable for connecting either PEEK or stainless‑steel tubing in high‑pressure zones of HPLC systems and related laboratory fluid handling applications.
Manufactured from Carbon PEEK Endure material, these fittings are reinforced with carbon fiber to provide increased strength, stiffness, and improved load‑carrying capability compared to standard PEEK materials.
Key Benefits
High‑pressure straight‑line union design
Carbon fiber reinforced PEEK Endure construction
Compatible with PEEK or stainless‑steel tubing
Chemically resistant metal‑free flow path
Standard 10‑32 screw thread compatibility
Suitable for analytical HPLC applications
Enhanced mechanical strength and stiffness
5/Pack configuration for laboratory replacement needs
Specifications
Product Type: High‑pressure union connector
Material: Carbon PEEK Endure
Through Hole Diameter: 0.50 mm / 0.020"
Thread: 10‑32
Configuration: Straight line
Tubing Compatibility: 1/16" tubing
Pack Size: 5
Usage Notes
For high‑pressure HPLC applications
Designed for connecting 1/16" tubing
Compatible with PEEK or stainless‑steel tubing
Requires separate connector nuts sold separately
Suitable for analytical HPLC systems
Carbon fiber reinforcement improves mechanical strength
Not recommended for UHPLC applications
