Inline Filters to Protect your HPLC Columns

Essential Inline Filters for Column Protection | Available in 0.5 µm and 2 µm Porosity

Inline HPLC filters are one of the most effective and economical ways to protect analytical and preparative HPLC columns from particulate contamination and system‑generated debris. Cogent inline filters and disposable column filters help extend column lifetime, maintain chromatographic performance, and reduce system downtime.

While MICROSOLV technical support strongly recommends filtering every sample with a syringe filter prior to injection, inline filters provide a critical secondary layer of protection within the HPLC system.

Why Inline Filters Are Still Necessary—Even with Sample Pre‑Filtering

Even properly filtered samples can introduce contaminants into the system. Common sources include:

• Sample agglomeration or precipitation in vials

• Particles introduced by the autosampler or injector

• Pump seal wear debris migrating downstream

• Contaminants from solvents, buffers, and salt solutions

Without inline filtration, these particles can lodge in column frits, permanently damaging the column and degrading performance.

Benefits of Using Inline and Column Filters in HPLC

Inline filters and column inlet filters provide protection across multiple aspects of system performance:

• Particle Removal – First line of defense against particulates

• Column Protection – Extends column and guard column service life

• Pump and Valve Maintenance – Reduces wear from recirculating debris

• Degassing Efficiency – Helps remove dissolved air during solvent degassing

• Microbial Control – Minimizes microbial contamination, baseline drift, and noise

By preventing contaminants from reaching the column, inline filters help maintain stable backpressure, consistent retention, and good peak shape.

Inline Filters as the First Line of Defense

Inline (pre‑column) filters retain particles, precipitates, and microbes from solvents, buffers, and mobile phases before they reach the analytical column. This protection helps prevent:

• Sudden pressure increases

• Column contamination

• Loss of efficiency

• Poor or distorted peak performance

They are especially important in methods using buffers, salts, or complex matrices.

Cogent Inline and Column Filters

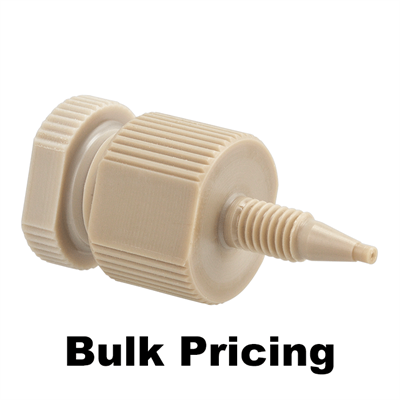

Cogent inline and column filters are low‑cost, disposable pre‑column filters designed for ease of use and reliable protection.

Key design features include:

• Finger‑tight fittings—no tools required

• Easily installed directly into the column or guard column inlet nut

• Stainless steel frits (other frit materials available)

• Available in 0.5 µm or 2 µm porosity

When system backpressure begins to rise, the filter can be quickly replaced, restoring normal operation and protecting the column from damage.

Each Cogent HPLC column includes one column filter, and inline filter kits are supplied with 25 replaceable filters, with additional replacements available for purchase.

Recommended Best Practices

• Always pre‑filter samples with syringe filters

• Install an inline or column filter upstream of the column

• Monitor system backpressure regularly

• Replace filters proactively before column performance is affected

• Use inline filters together with guard columns for maximum protection

Related Column Protection Hardware

👉 View guard column holders and hardware for HPLC column protection
