Introduction

Autosampler vial capacities are often described using a nominal volume, such as 2 mL. While this designation is widely used throughout chromatography, it can sometimes create confusion for new users who assume the vial should be filled completely during routine use.  Understanding the difference between nominal volume, total fill volume, and usable sample volume can help improve autosampler performance and prevent injection-related issues.

What Is Nominal Volume?

Nominal volume is the stated or labeled volume assigned to a vial.  For example:  2 mL Autosampler Vial.  This designation refers to the approximate volume the vial can contain when filled to its maximum capacity.  Nominal volume serves as a convenient classification and size reference but does not necessarily represent the recommended working volume for analytical use.

Total Fill Volume vs. Working Volume

A 2 mL autosampler vial can physically contain approximately 2 mL of liquid when completely filled.  This condition is known as:  Total Fill Volume.  However, chromatography samples are typically not prepared at this level.  Most analytical methods require sufficient headspace between the sample surface and the septum to allow the autosampler to operate correctly.

Why Headspace Is Important

Autosampler needles depend on a small volume of air above the liquid to help maintain proper pressure balance during sampling.  This headspace allows the system to:

• Displace liquid properly
• Equalize pressure
• Aspirate sample accurately
• Improve injection reproducibility

Without adequate headspace, the sampling process may become less reliable.

Potential Problems Caused by Overfilling

Filling a vial completely to its nominal capacity may contribute to:

• Inaccurate sample aspiration
• Partial sample draws
• Injection variability
• Poor reproducibility
• Elevated %RSD values
• Failed injections

In some cases, insufficient headspace can create temporary pressure-related sampling effects that interfere with proper autosampler operation.

Recommended Working Volume for a 2 mL Vial

Although the nominal volume is approximately 2 mL, many laboratories use a practical working volume closer to:  Approximately 1.5 mL.  This allows sufficient headspace while still providing ample sample volume for routine analytical work.  The exact volume may vary depending on:

• Autosampler design
• Needle dimensions
• Injection volume
• Sample properties

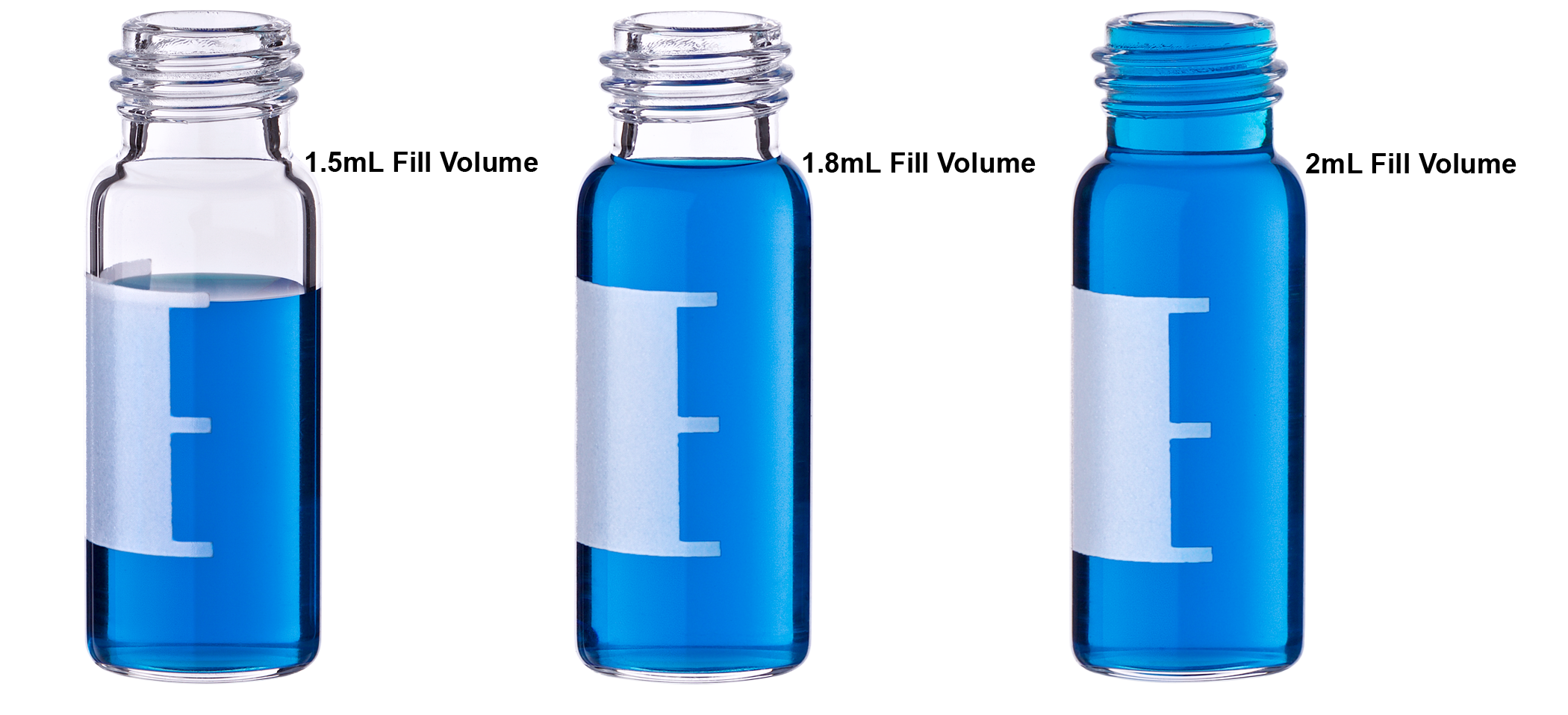

Illustration of Nominal Volume

Illustration showing the difference between nominal volume, practical working volume, and overfilled conditions in a 2 mL autosampler vial. Headspace is necessary for proper autosampler sampling and reproducible injections.

Considerations for Viscous Samples

Sample viscosity may also affect autosampler performance.  Highly viscous samples may require:

• Slower aspiration speeds
• Longer draw times
• Additional equilibration time

If aspiration occurs too quickly, the autosampler may not withdraw the intended sample volume, resulting in poor quantitative performance.

Best Practices

To optimize autosampler performance:

• Avoid filling 2 mL vials completely to the top.
• Leave sufficient headspace above the sample.
• Verify autosampler needle depth settings.
• Use appropriate aspiration speeds for viscous samples.
• Follow instrument-specific recommendations.

These practices can improve injection precision and analytical reproducibility.

Conclusion

A 2 mL autosampler vial designation refers to the approximate total fill capacity of the vial and represents its nominal volume. In practical chromatography applications, the working volume is typically lower to provide sufficient headspace for proper autosampler operation. Understanding the distinction between nominal volume and usable sample volume helps reduce injection variability and supports more reliable analytical results.
