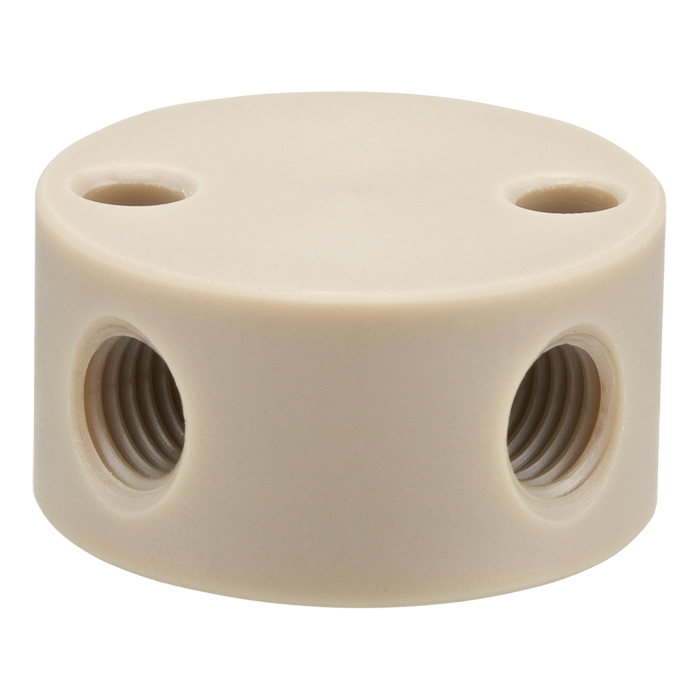

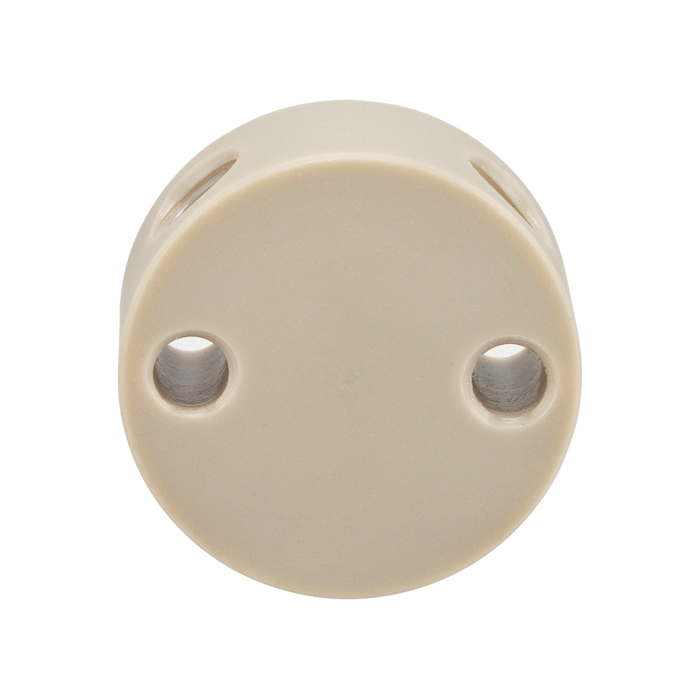

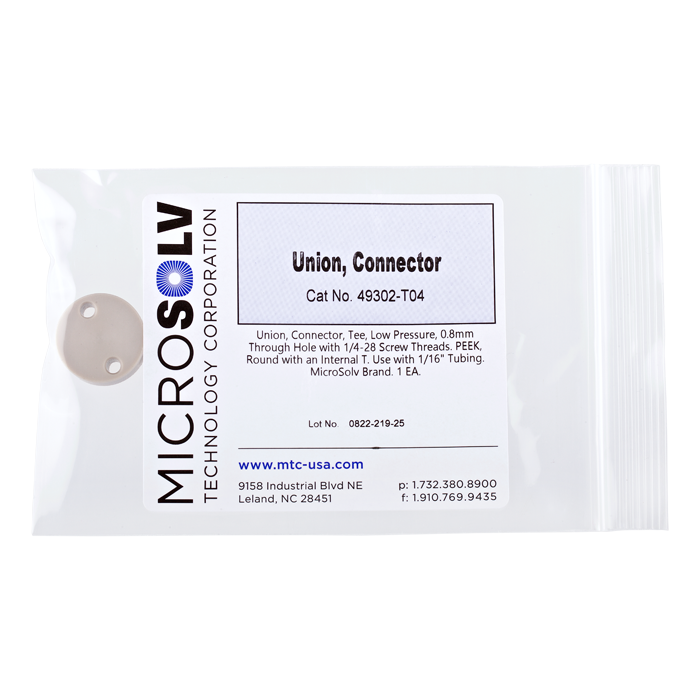

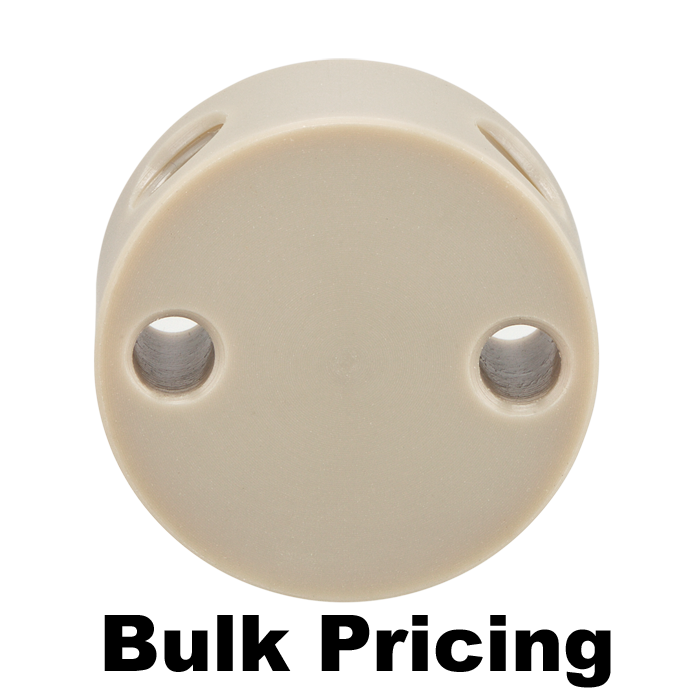

Union, Connector, Tee, low pressure, 0.8 mm / 0.031 inch through hole with 1/4-28 screw threads. PEEK, round with an internal "T". ARE-Applied Research brand. Bulk Price.

Additional Info:

This all-PEEK union allows you to connect three pieces of low pressure, 1/16th tubing. Three finger tight, low pressure male nuts with 1/4-28 threads and 3 matching ferrules are required. These fittings and tubing are sold separately.

  • Maximum Temperature: 100°C

  • Maximum Pressure: 1,000 psig.

  • Click HERE for economical pack of 10.

This Tee (T) union through hole has two internal 90° turns (connections). With this you can "blend the flow" of two lines or "split the flow" into two outward lines of liquid, depending on which flow direction you use.
