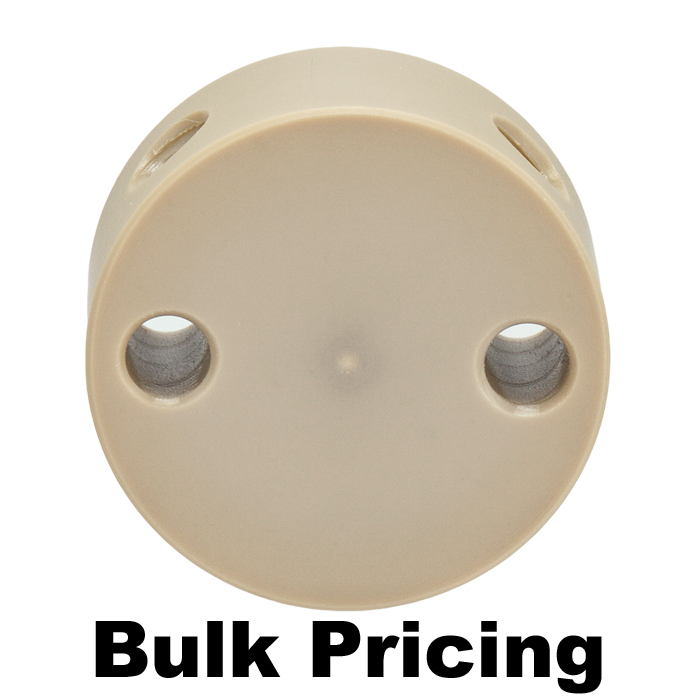

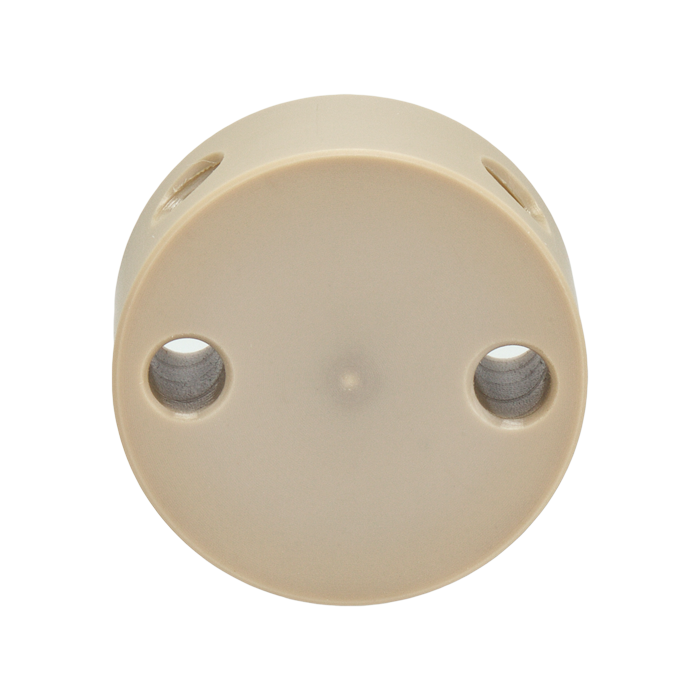

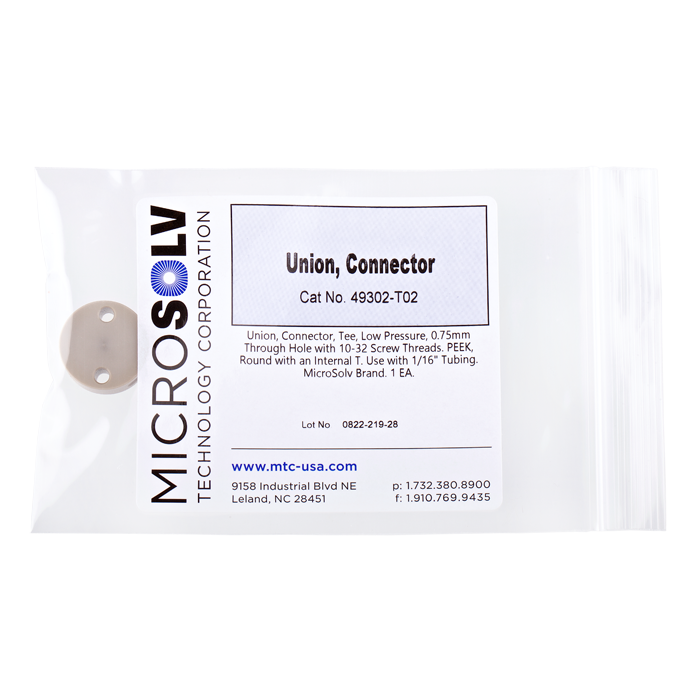

Union, Connector, Tee, low pressure, 0.75 mm / 0.030 inch through hole with 10-32 screw threads. PEEK, round with an internal "T". ARE-Applied Research brand. 1 each.
Additional Info:
Low‑pressure PEEK Tee unions are designed for connecting tubing in laboratory and analytical fluidic systems requiring chemically resistant, metal‑free flow path components. The 0.75 mm (0.030") through hole design and standard 10‑32 screw threads provide dependable low‑pressure tubing connections.
The 49302‑T02 Tee union is suitable for joining three tubing lines into one flow path or splitting one flow path into multiple outgoing lines in low‑pressure HPLC applications and laboratory fluid handling systems.
This Tee fitting contains an internal T flow pattern for versatile flow distribution and blending applications using compatible 10‑32 fittings and tubing connections.
Key Benefits
Tee configuration for flow splitting or blending
All‑PEEK fluidic construction
Chemically resistant metal‑free flow path
Standard 10‑32 thread compatibility
Suitable for low‑pressure laboratory fluidics
Ideal for flow distribution applications
Compatible with similar 10‑32 connectors
Specifications
Product Type: Tee union connector
Material: PEEK
Through Hole Diameter: 0.75 mm / 0.030"
Thread: 10‑32
Configuration: Internal Tee (T)
Pack Size: 1 each
Usage Notes
For low‑pressure fluidic applications
Designed for joining or splitting flow paths
Compatible with standard 10‑32 threaded fittings
Suitable for laboratory HPLC systems
Not intended for high‑pressure UHPLC applications
