PEEK Tubing | Various ID and OD sizes. High Pressure Zones.
Our PEEK Tubing is extruded from virgin PEEK made by Victrex. They are the original manufacturer of PEEK material and have the best quality in the industry. We do not add any additives to the original PEEK material except for color particles in the solid colored tubing.

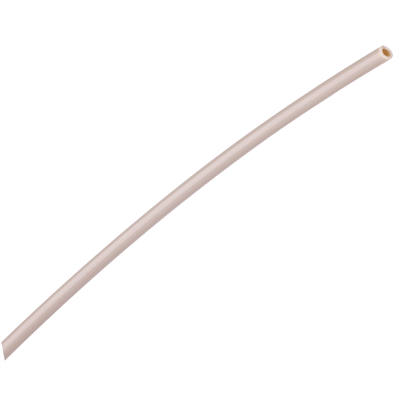

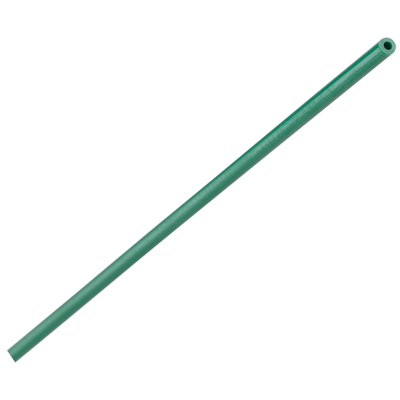

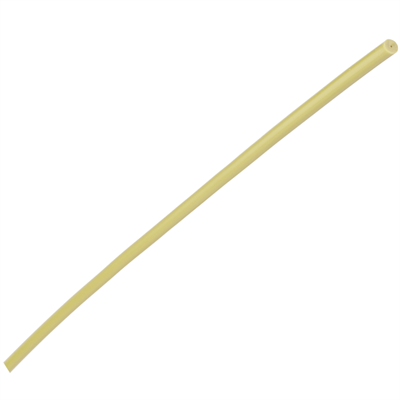

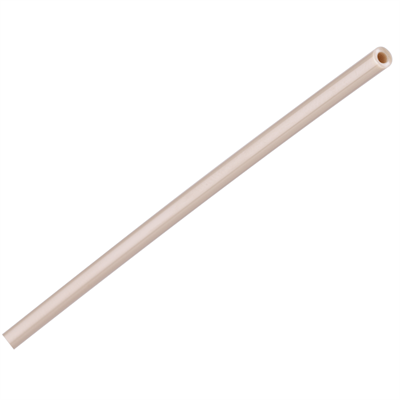

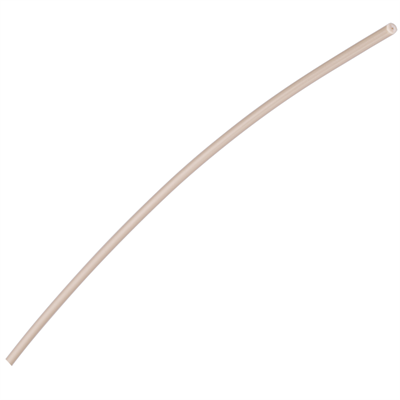

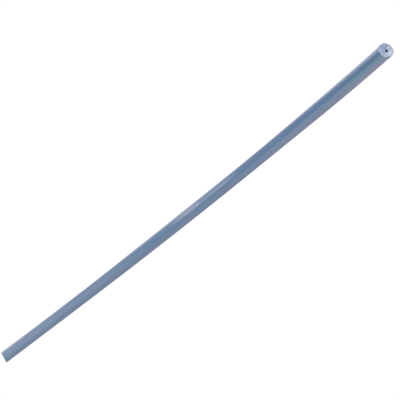

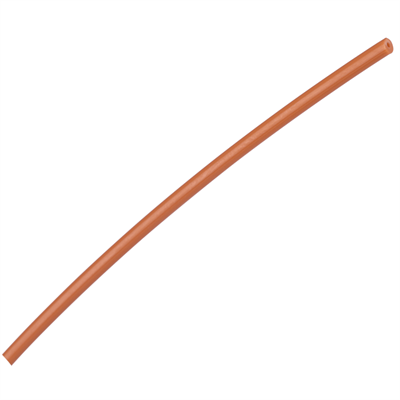

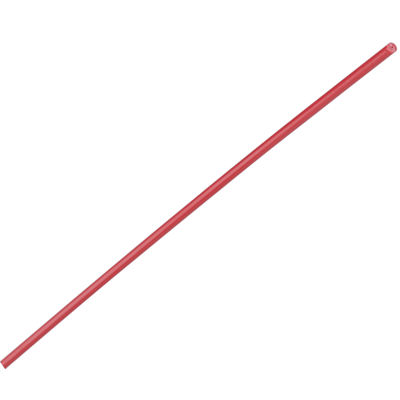

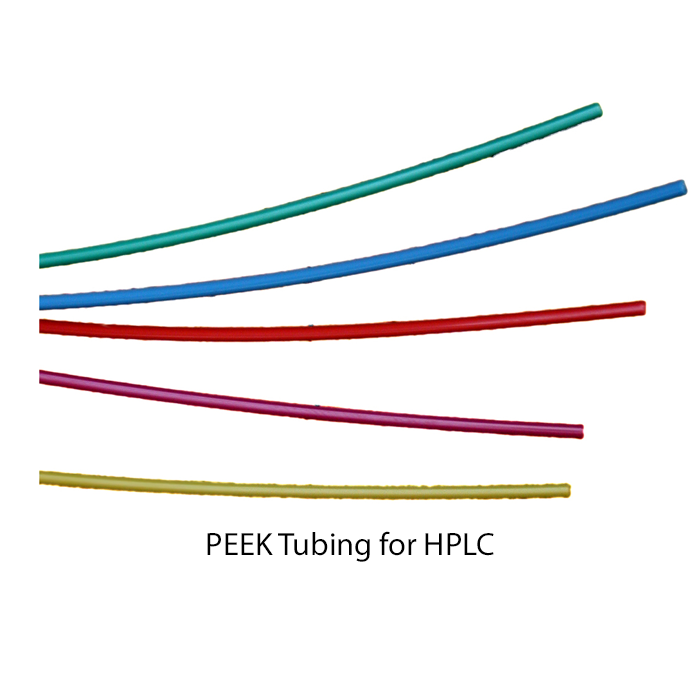

Solid colored PEEK Tubing is the standard for everyday use in HPLC as it’s chemically resistant and flexible. Tolerance is +/- 0.05mm for both ID and OD.

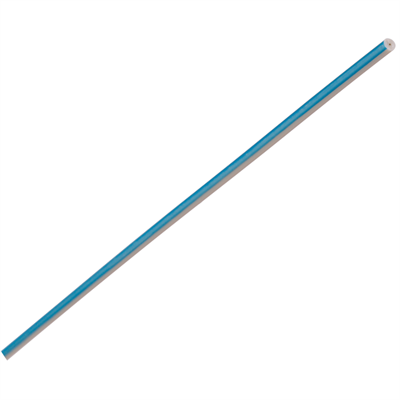

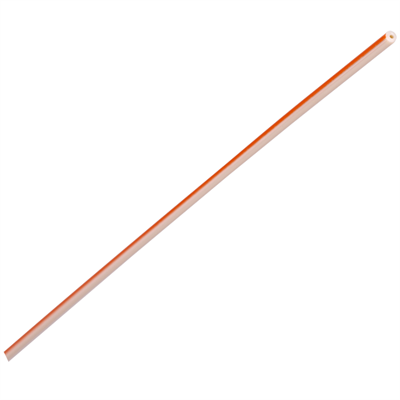

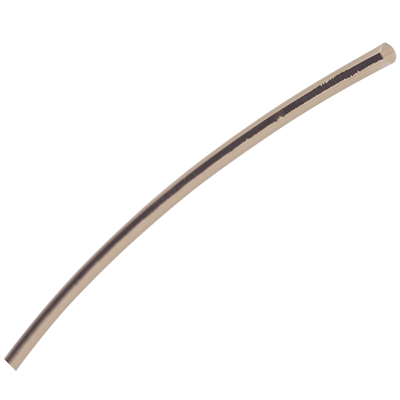

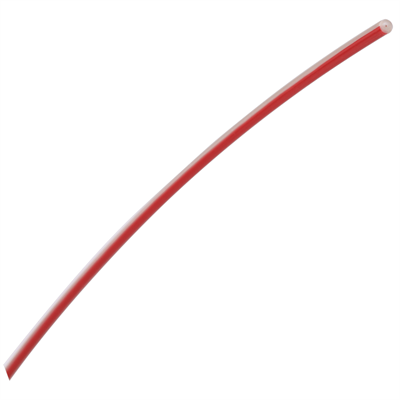

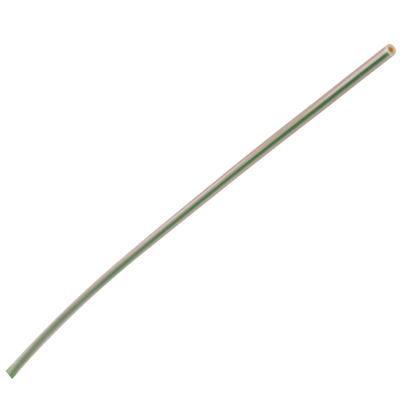

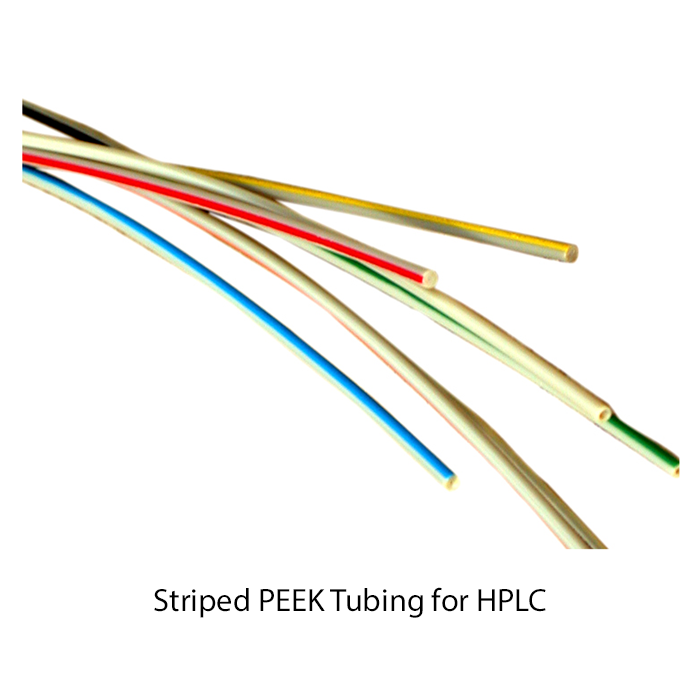

Striped colored PEEK Tubing consists of natural PEEK with a color stripe added to the outside of the tubing after extrusion. We recommend using striped or natural tubing, as PEEK is not stable to all chemicals. Some solvents may react with the PEEK wall material and dissolve the color particles; this is an indication the tubing should be replaced. Tolerance is +/- 0.05mm for both ID and OD.
Super-T™ PEEK Tubing is recommended when the flow volume desired is critical. This tubing is not normally used in typical HPLC systems; its mostly used for LCMS, Capillary LC and other applications that allow for little variation in flow dynamics. Tolerance is +/- 0.025mm for both ID and OD.
The Selection "FILTER" buttons refine the Products displayed in the Ordering Chart. They are described below and listed alphabetically by FILTER.
Coiled - PEEK tubing coiled like a telephone cord that retracts and expands. Sold with 2 Male Nuts.
Color: Black, Blue, Green, Grey, Natural, Orange, Red, White or Yellow PEEK Tubing. Color coded for Internal Diameter.
ID: 0.005, 0.007, 0.010 (Most Popular), 0.020, 0.030 or 0.040. 1/16th, and 2.0mm.
Length: 100cm, 10cm, 20cm, 30cm, 50cm and 5cm.
OD: 1/16th", 1/4" or 1/8th".

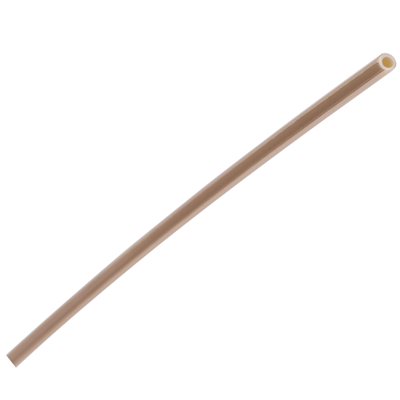

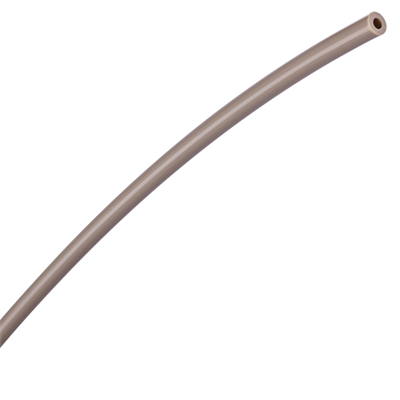

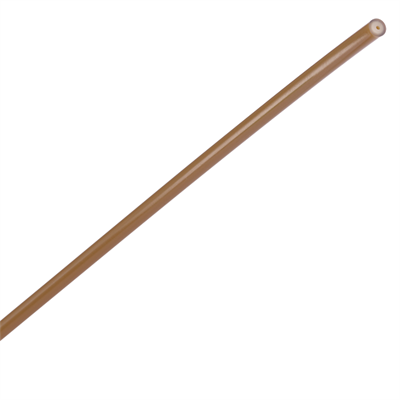

PEEK - PEEK tubing with different ID and OD tolerances.

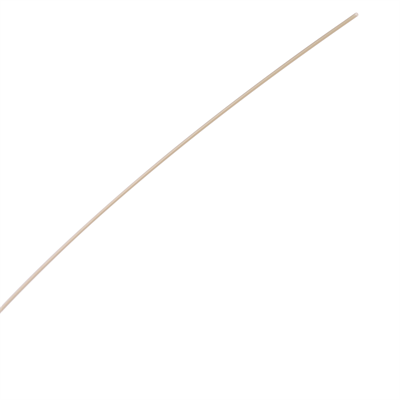

Small OD - PEEK tubing that is 360um OD and 75um ID.
Solid Color Tubing - Economical, standard, PEEK tubing commonly used in HPLC.
Striped Tubing - PEEK tubing that is color coded with a color stripe on it to identify the ID. Striped tubing has a tighter ID tolerance than Solid PEEK tubing.

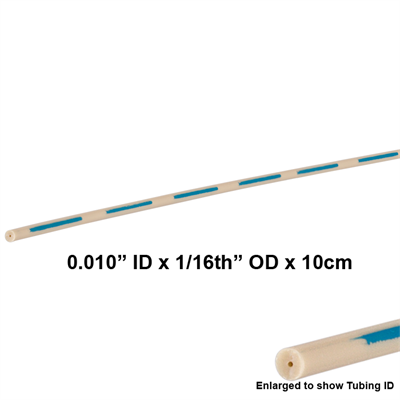

Super-T™ Tubing - PEEK Tubing with ultra-tight ID tolerances. Color coded for internal diameter.
