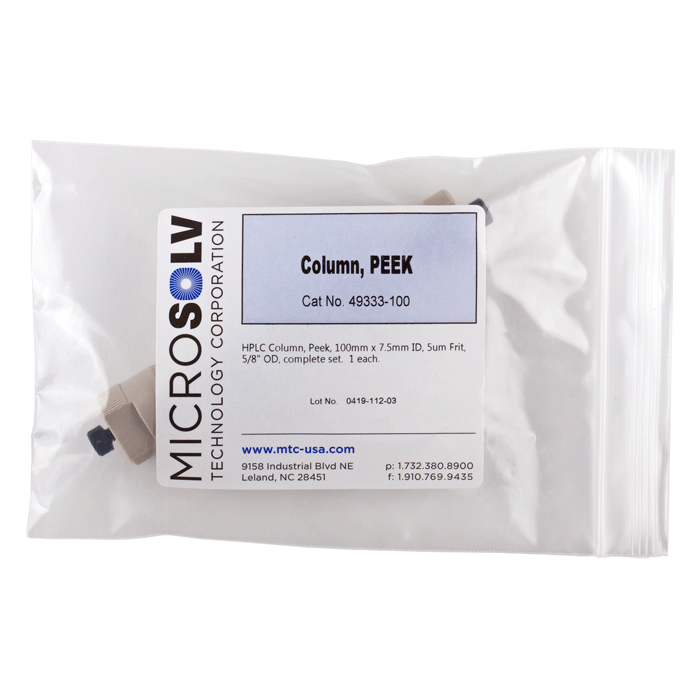

HPLC Column Set, PEEK with a 7.5 mm ID. Includes, a 100 mm x 7.5 mm black, column body tube (5/8-18 threads), plus 2 PEEK 5 um frits, 2 frit spacers & 2 end fittings. ARE-Applied Research brand. 1 EA.
Additional Info:
The 49333‑100 All‑PEEK HPLC Column Set is designed for professional column packers and preparative chromatographers who require bioinert, high‑capacity column hardware for semi‑preparative and scale‑up separations. The 7.5 mm ID format increases sample loading capacity, while the 100 mm length provides enhanced resolution and separation efficiency for more demanding applications.
PEEK (polyether ether ketone) column hardware provides a fully metal‑free flow path, eliminating interactions with stainless steel that can affect sensitive compounds. This makes it ideal for proteins, peptides, nucleic acids, ions, and metal‑sensitive small molecules, where recovery, accuracy, and reproducibility are critical.
✅ Why Choose All‑PEEK Column Hardware
True Bioinert Flow Path Prevents interaction with metal surfaces
Higher Sample Loading Capacity (7.5 mm ID) Supports semi‑prep and scale‑up workflows
Improved Recovery & Peak Shape Minimizes adsorption and secondary interactions
Pack Any Stationary Phase Complete flexibility for custom column packing
Reusable & Repackable Design Ideal for process development and optimization
Performance & Design
The column body is manufactured using a proprietary extrusion process that produces a smooth, mirror‑like internal surface, supporting:
Consistent and reproducible packing
Reduced flow disruption
Improved chromatographic efficiency
Constructed from graphite-filled PEEK, the graphite is incorporated before extrusion, not applied as a coating.
Key advantages:
No chemical coatings or treatments
Uniform internal surface chemistry
Durable black exterior for long-term use
Included Components

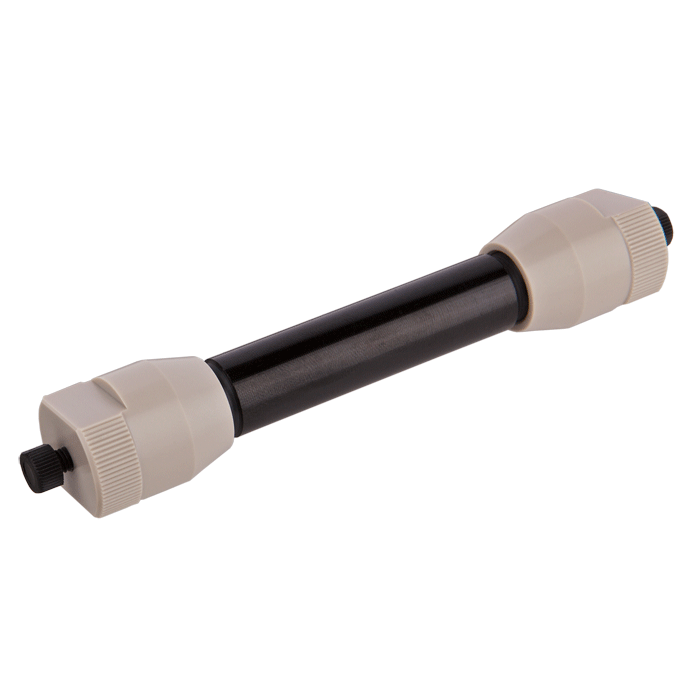

100 mm × 7.5 mm ID All‑PEEK column body (5/8‑18 threads)
2 × 5 µm PEEK frits
2 × frit spacers
2 × PEEK end fittings
Use Case Positioning
7.5 mm ID / 100 mm Length
Higher resolution with increased loading capacity
Ideal for semi‑preparative purification and method scale‑up
Balanced for throughput and separation efficiency
Typical Applications
Semi‑Preparative Protein & Peptide Purification
Nucleic Acid Analysis and Isolation
Ion Chromatography of metal‑sensitive compounds
Scale‑up of analytical methods to preparative workflows
Custom stationary phase evaluation
Bioinert LC and LC‑MS separations
⚠️ When to Use PEEK Column Hardware
Choose All‑PEEK columns when:
Analytes are sensitive to stainless steel interaction
Higher sample loading and throughput are required
Working with biomolecules or coordination-sensitive analytes
Packing & Compatibility
For optimal performance:
Use with ARE‑Applied Research™ All‑PEEK slurry reservoir kits
Select frit porosity appropriate for particle size and application scale
Maintain a fully bioinert packing environment
Read guidelines for packing All‑PEEK HPLC columns and achieving consistent column performance
Specifications
Hardware Type: All‑PEEK Column Set
Internal Diameter: 7.5 mm
Length: 100 mm
Thread Type: 5/8‑18
Material: Extruded PEEK (graphite‑filled)
Frits: 5 µm PEEK
Additional Components: Frit spacers included
Flow Path: Metal‑free (bioinert)
Surface Treatment: None (no coatings)
Reusability: Repackable
Brand: ARE‑Applied Research™
Unit: 1 Each
