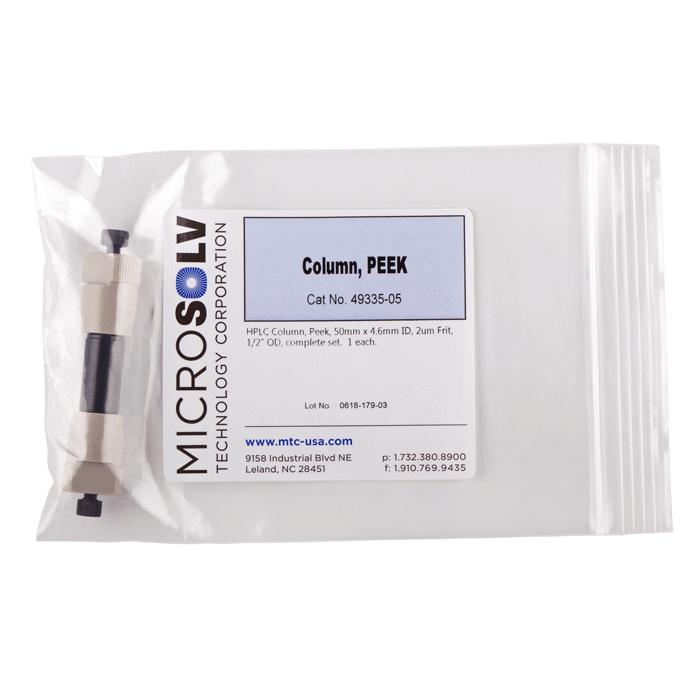

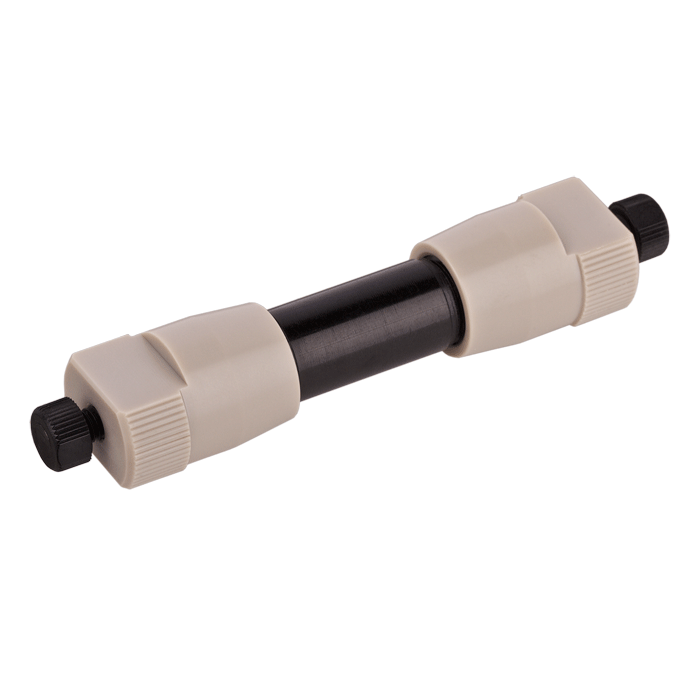

HPLC Column Set, PEEK with a 4.6 mm ID. Includes, a 50 mm x 4.6 mm black, column body tube (1/2-20 threads), plus 2 PEEK 2 um frits & 2 end fittings. ARE-Applied Research brand. 1 EA.
Additional Info:
The 49335‑05 All‑PEEK HPLC Column Set is designed for professional column packers and advanced chromatographers who require complete control over bioinert column construction. This 4.6 mm ID hardware set enables in‑house packing of custom HPLC columns using virtually any stationary phase.
PEEK (polyether ether ketone) column hardware provides a fully metal‑free flow path, helping prevent undesirable interactions between analytes and stainless steel surfaces. This is critical for proteins, peptides, nucleic acids, ions, and metal‑sensitive small molecules, where adsorption or catalytic effects can compromise results.
✅ Why Choose All‑PEEK Column Hardware
True Bioinert Flow Path Eliminates metal contact to protect sensitive analytes
Improved Recovery & Peak Integrity Reduces adsorption and secondary interactions common with stainless steel columns.
Pack Any Stationary Phase Full flexibility for method development and custom separations
Reusable & Repackable Design Ideal for R&D, method optimization, and specialized workflows
Compatible with Standard Packing Systems Uses 1/2‑20 threaded format for 4.6 mm ID columns
Performance & Design
The column body is manufactured from extruded PEEK tubing using a proprietary process that creates a smooth, mirror‑like inner surface. This highly uniform internal bore helps:
Improve packing consistency
Reduce flow disruption
Enhance chromatographic efficiency
Unlike coated or treated hardware, this column is:
Not chemically modified
Not surface coated
Fully inherent in its bioinert properties
A controlled amount of graphite is incorporated into the PEEK prior to extrusion, producing the durable black finish while maintaining structural integrity and long-term usability.
Included Components
50 mm × 4.6 mm ID All‑PEEK column body (1/2‑20 threads)
2 × 2 µm PEEK frits
2 × PEEK end fittings
Use Case Positioning
4.6 mm ID / 50 mm Length
Short bed length → Fast method development
Analytical scale → Compatible with standard HPLC systems
Ideal for screening and optimization workflows
Typical Applications
Protein & Peptide Analysis
Nucleic Acid Separations
Ion Chromatography & Metal‑Sensitive Compounds
Bioanalytical Method Development
Custom Stationary Phase Evaluation
LC‑MS Compatible Workflows (metal‑free requirement)
⚠️ When to Use PEEK Column Hardware
Choose All‑PEEK columns when:
Samples may adsorb to or react with metals
Recovery and reproducibility are critical
Working with biomolecules or coordination-sensitive analytes
Packing & Compatibility
For optimal results:
Use with ARE‑Applied Research™ All‑PEEK Slurry Reservoir Kits
Select frit porosity based on particle size
Maintain a fully bioinert packing environment
Specifications
Hardware Type: All‑PEEK Column Set
Internal Diameter: 4.6 mm
Length: 50 mm
Thread Type: 1/2‑20
Material: Extruded PEEK (graphite‑filled)
Frits: 2 µm PEEK
Flow Path: Metal‑free (bioinert)
Surface Treatment: None (no coatings)
Reusability: Repackable
Brand: ARE‑Applied Research™
Unit: 1 Each
