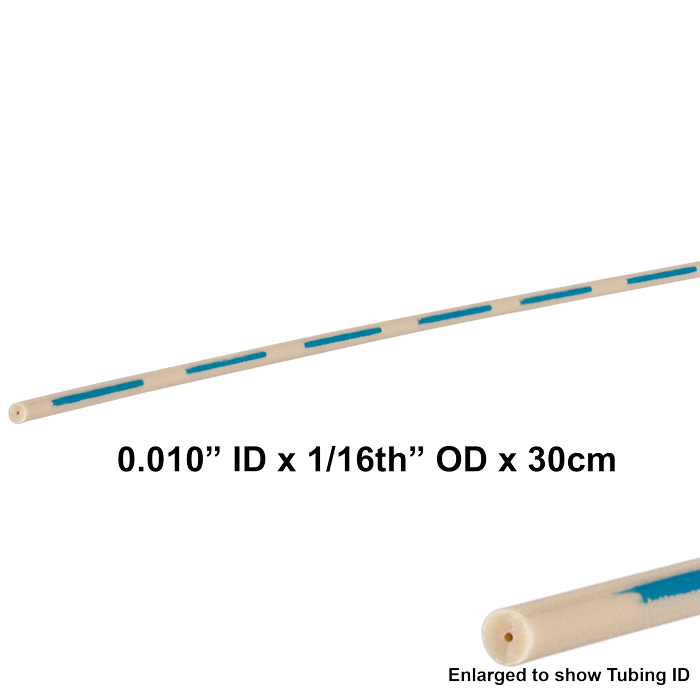

Tubing, PEEK, Pre-Cut, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, Ultra-T grade, blue intermittent stripes, 30 cm long (+/- 1 mm). ARE-Applied Research brand. 5 PK.
Additional Info:
Ultra‑T™ pre‑cut PEEK tubing is designed for HPLC laboratories requiring convenient, ready‑to‑use tubing lengths while minimizing the difficulty of manual tubing cutting.

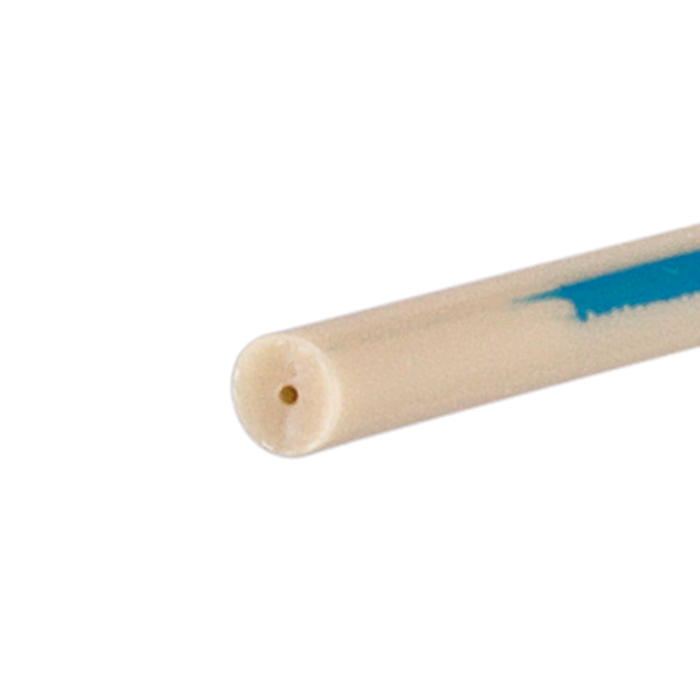

The 47305‑25‑30 tubing features a 0.010" (0.25 mm) ID and is manufactured from virgin PEEK material without processing additives. Blue intermittent stripes are applied only to the exterior tubing surface, while the internal flow path remains natural virgin PEEK to minimize potential color leachables.
Each tubing section is pre‑cut to 30 cm lengths (± 1 mm) for convenient installation in analytical HPLC and LC‑MS fluidic systems.
Key Benefits
Ultra‑T™ virgin PEEK tubing
Convenient pre‑cut tubing lengths
Natural internal flow path
Exterior blue stripe identification
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Reduces manual tubing cutting
Supplied in 5 pack configuration
Specifications
Product Type: Pre‑cut high‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: Ultra‑T™
Material: Virgin PEEK
Tubing ID: 0.010" (0.25 mm)
Tubing OD: 1/16" (1.6 mm)
Length: 30 cm (± 1 mm)
Wall Thickness: 0.675 mm
Tolerance: ± 0.025 mm
Color Code: Blue intermittent stripes
Pressure Rating: 5600 psi
Pack Size: 5 pack
Applications
Analytical HPLC
LC‑MS systems
Pre‑cut chromatography tubing replacement
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Internal flow path remains natural virgin PEEK
Exterior stripes assist tubing identification
Pre‑cut lengths help simplify installation
Compatible with standard 1/16" fluidic systems
