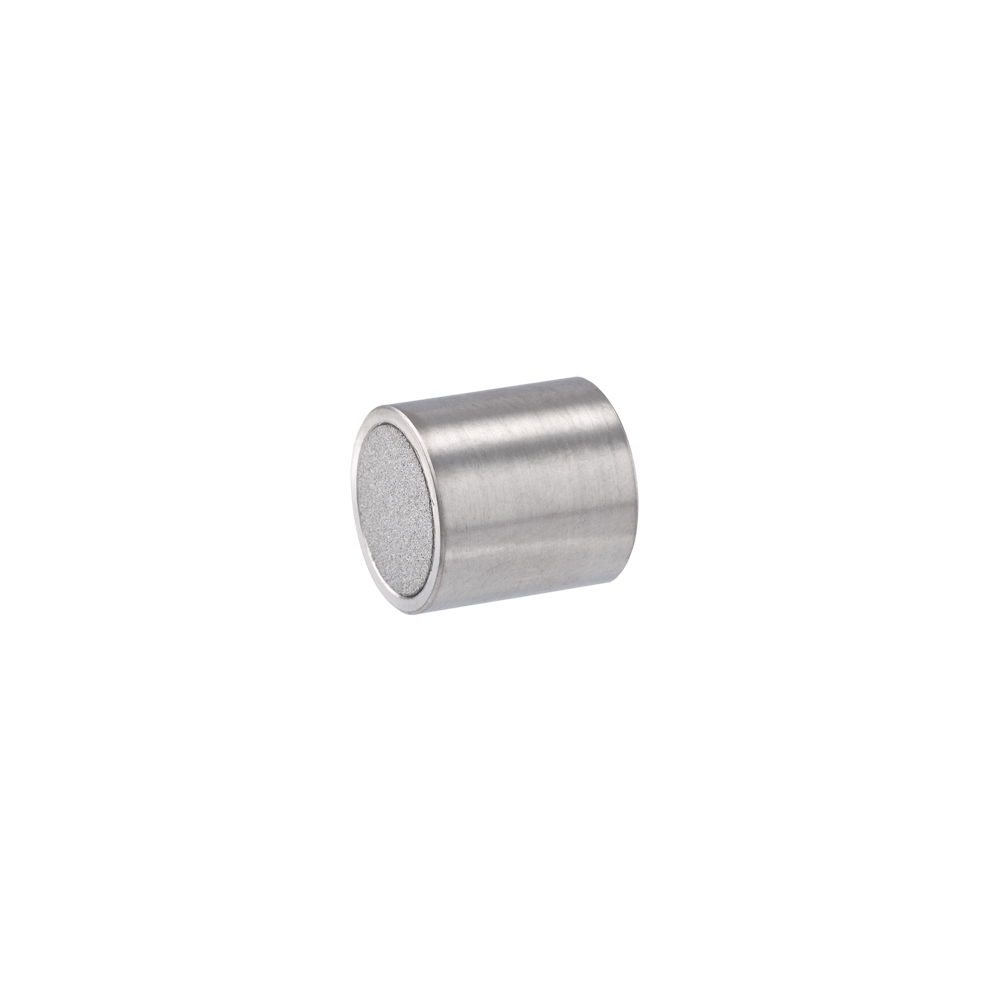

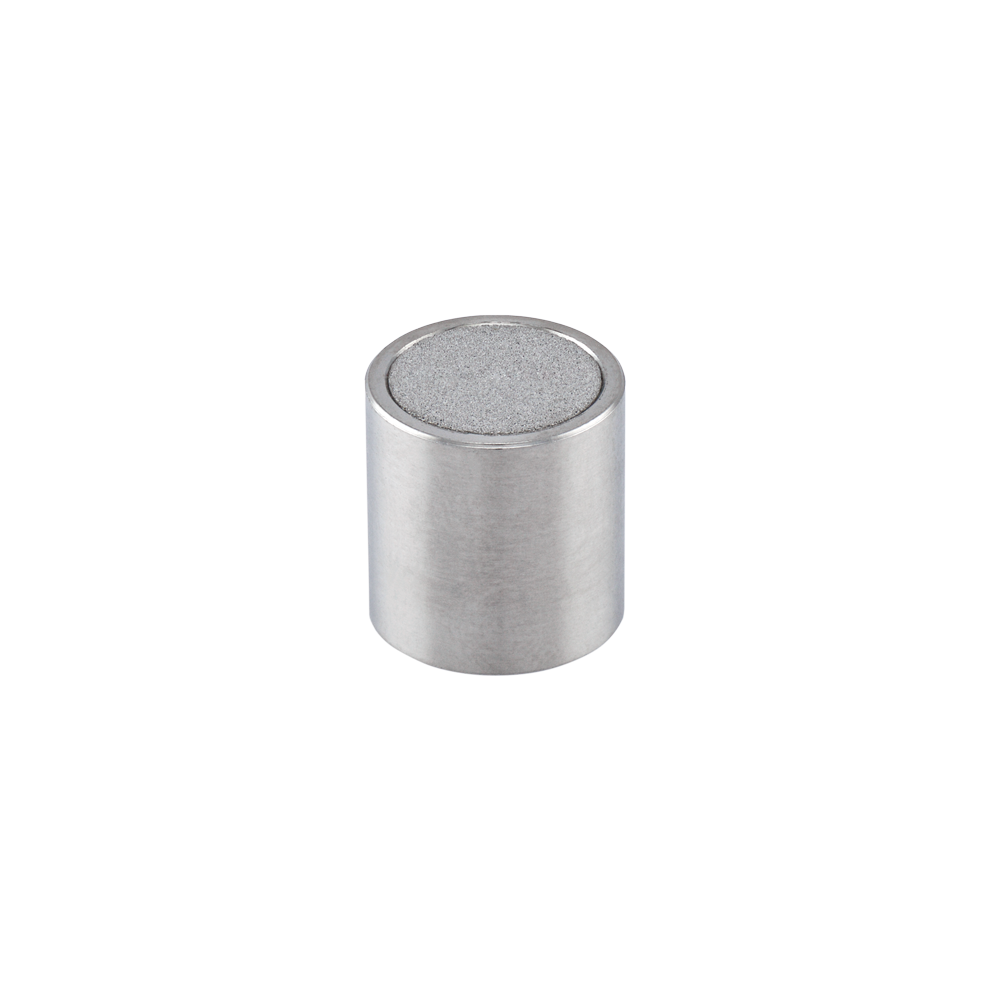

Semi Prep Guard Column Cartridge, RP PFP, 10um, 100A. 10mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Info:
68022-SP-PG1 Cogent RP PFP™ Guard Column Cartridge is designed to protect semi‑prep HPLC columns from particulates and strongly retained contaminants that can reduce column performance and lifespan. Packed with 10 µm Cogent RP PFP™ material, this guard cartridge matches the selectivity of the analytical and semi‑prep PFP columns it supports.
This column utilizes a fully double end‑capped surface bonded via a four‑carbon linker to a benzene ring substituted with five fluorine atoms, using high purity 100 Å silica. This chemistry provides consistent retention behavior and ensures compatibility with RP PFP analytical methods.
Each cartridge is packed in a durable stainless steel tube with stainless steel frits, providing strength and performance under semi‑prep and higher flow conditions.
10 mm ID × 10 mm Length – Semi‑Prep Column Protection
This guard column cartridge is optimized for use with 10 mm ID semi‑prep columns, offering effective protection without significantly impacting chromatographic performance.
Protects against particulates and strongly retained contaminants
Extends the life of semi‑prep columns
Maintains consistent chromatographic selectivity
✅ Recommended for all semi‑prep workflows using 10 mm ID RP PFP columns
Flow Rate & System Requirements (10 mm ID, 10 µm)
⚠️ Requires semi‑preparative or preparative HPLC system capability
Typical flow rate range: ~3.0 – 6.0 mL/min
Very low backpressure due to 10 µm particle size
Designed for high-flow semi‑prep applications
Compatible with preparative detectors and fraction collection systems
✅ Required Hardware: Use with a 10 mm ID guard column holder (see Guard Column Holder product page for compatibility and specifications)
Why Use RP PFP Guard Columns
Column Protection
Prevents contamination from particulates and sample matrix
Reduces irreversible adsorption on main column
Maintains Selectivity
Matches RP PFP column chemistry
Ensures consistent analytical results
Improves Workflow Efficiency
Reduces downtime and column replacement frequency
Extends usable column life
Cogent RP PFP™ Guard Cartridge Advantages
Matched Chemistry
Same selectivity as RP PFP columns
Durable Construction
Stainless steel body and frits for high flow operation
Low Backpressure (10 µm Particles)
Ideal for higher flow semi‑prep methods
Typical Applications
Semi‑prep HPLC workflows
Method development and scale‑up
Halogenated compound separations
Aromatic compound purification
Pharmaceutical preparative analysis
Important Usage Notes
Designed for use with 10 mm ID prep column holders
Packed and shipped in reversed‑phase solvents
Requires semi‑prep or preparative HPLC system
Replace guard cartridges regularly to maintain performance
Made‑to‑Order Columns & Pricing Information
This is a custom, made‑to‑order column.
Columns are manufactured specifically to order
Orders cannot be canceled once placed
Custom columns are non‑returnable
