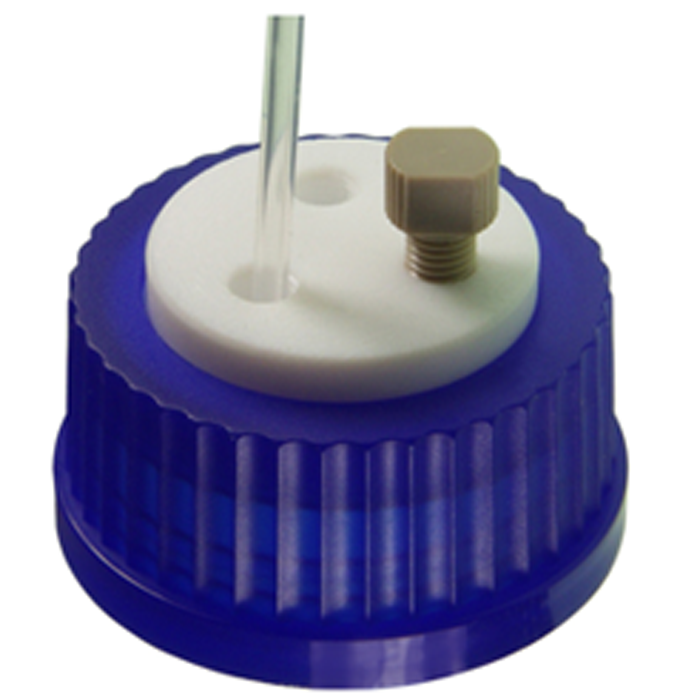

Cap, Mobile Phase Delivery System, GL45 threads, blue, PE, for HPLC reservoir bottles. A PTFE insert with 3 holes, PEEK plug and O-ring are included. ARE-Applied Research brand. 1 EA.
Additional Info:
58820-06 ARE‑Applied Research Mobile Phase Delivery Cap is a complete GL45 solvent delivery cap system designed to maintain mobile phase purity and system integrity in HPLC, UHPLC, and LC‑MS applications.
This cap assembly is commonly used in laboratories to help ensure compliance with Good Laboratory Practice (GLP) by preventing contamination of mobile phase solvents during use and storage.
The integrated PTFE insert with three holes, along with a PEEK plug and O‑ring, allows secure and flexible routing of solvent lines while maintaining a sealed environment.
Because the mobile phase only contacts medical‑grade PTFE, there is:
No contamination from plastics or liners
No leaching or extractables from cap materials
High purity solvent delivery
✅ Explore compatible plugs for this cap system
Contamination Control – GLP‑Focused Design
Sealed system minimizes exposure to air and contaminants
Prevents dust and particulates from entering the bottle
Reduces solvent degradation from atmospheric interaction
Helps maintain analytical consistency
✅ Supports GLP compliance and reliable analytical results
PTFE / PEEK Flow Path – High Purity Solvent Contact
PTFE insert ensures chemically inert contact surface
PEEK plug provides secure, chemically resistant sealing
Eliminates risk of contamination from common cap materials
✅ Ideal for sensitive analytical and LC‑MS workflows
3‑Hole Configuration – Flexible Tubing Integration
Three access ports for:
Solvent inlet lines
Degassing lines
Vent or additional tubing
Designed for use with low‑pressure tubing systems
Compatible with standard low‑pressure connectors (nuts)
✅ Enables multi‑line solvent delivery and system flexibility
GL45 Thread Compatibility
Standard GL45 threaded cap
Fits most HPLC and laboratory solvent bottles
Secure sealing for consistent system performance
✅ Designed for broad compatibility with reservoir bottles
Material Construction – Durable & Autoclavable
Cap material: Polyethylene (PE)
Insert: PTFE (inert, high purity)
Plug: PEEK (high chemical resistance)
Includes sealing O‑ring
Autoclavable complete assembly
Maximum operating temperature: ~140 °C
✅ Suitable for sterile workflows and repeated laboratory use
System Compatibility & Use
Commonly used with:
HPLC / UHPLC mobile phase systems
LC‑MS solvent delivery setups
Degassing systems and solvent lines
Mobile Phase Delivery Systems
Multi‑line solvent routing configurations
Important Usage Notes
Designed for low‑pressure tubing systems only
Ensure proper tubing fit for leak‑free operation
Tubing shown in images is not included
Inspect seals and components regularly for wear
Typical Applications
HPLC mobile phase delivery systems
LC‑MS solvent handling
Multi‑line solvent routing and degassing
Controlled analytical workflows
Integrated into original equipment manufacturer (OEM) product designs
