Catalog Number - 95296-350-1R

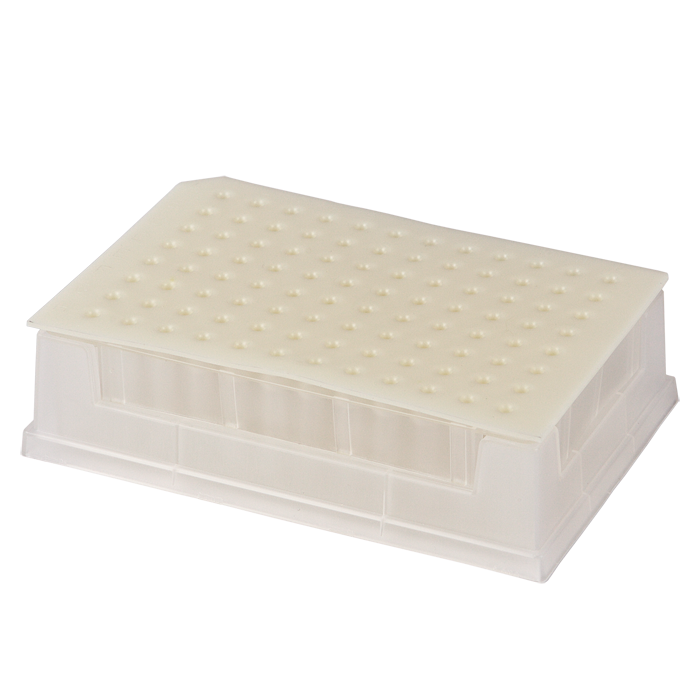

Improve efficiency and reliability in micro‑volume workflows with a complete U‑2D™ Micro‑Sample Management System designed for 96‑well format processing. This convenient set provides all components needed to organize, protect, and manage small volume samples during preparation and analysis. The rack with base and plug‑style sealing mat help maintain sample integrity while supporting high‑throughput laboratory operations.

95296-350-1R includes 96 precision inserts manufactured from First Hydrolytic, Class A, Type 33 borosilicate glass, offering excellent chemical resistance, low extractables, and reproducible performance. This version features a solvent‑resistant polymeric sealing mat, making it ideal for use with most HPLC‑compatible organic solvents. The durable mat resists degradation and ensures a reliable seal even when exposed to more aggressive solvent systems.

Each 350 µL insert can be easily removed from the rack and transferred into a standard 12 × 32 mm, 2 mL AQ™ autosampler vial for GC or HPLC analysis. This flexible workflow allows laboratories to seamlessly move between plate‑based preparation and vial‑based injection without unnecessary sample transfers, reducing sample loss and improving analytical efficiency.

Key Benefits

• Complete system simplifies micro‑sample handling and organization

• 96‑well format supports high‑throughput workflows

• 350 µL inserts ideal for low volume samples

• Type 33 borosilicate glass ensures purity and durability

• Solvent‑resistant sealing mat suitable for organic solvents

• Inserts easily transfer to autosampler vials

• Reduces sample handling steps and improves efficiency

Typical Applications

• LC‑MS and LC‑MS/MS sample preparation

• HPLC workflows using organic solvents

• GC sample preparation

• High‑throughput analytical laboratories

• Micro‑volume sample management

Kit Components

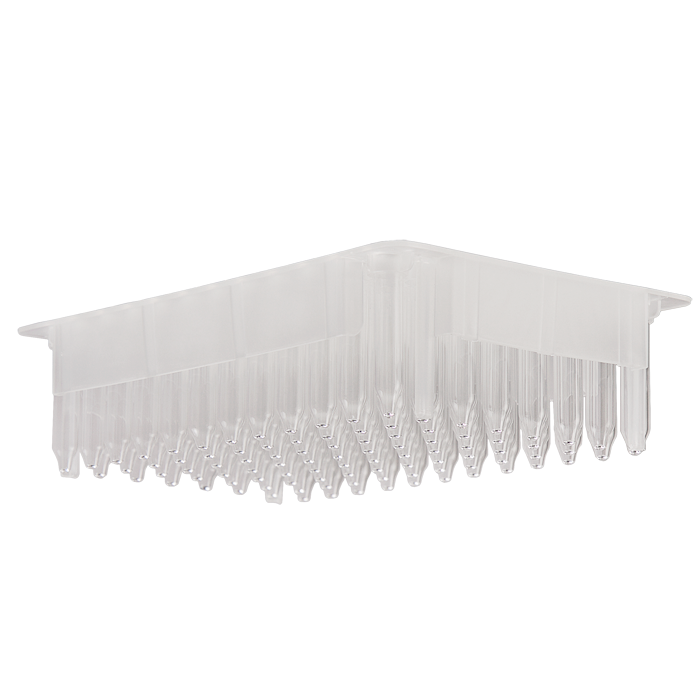

• 96 × 350 µL Glass Inserts (Type 33 borosilicate)

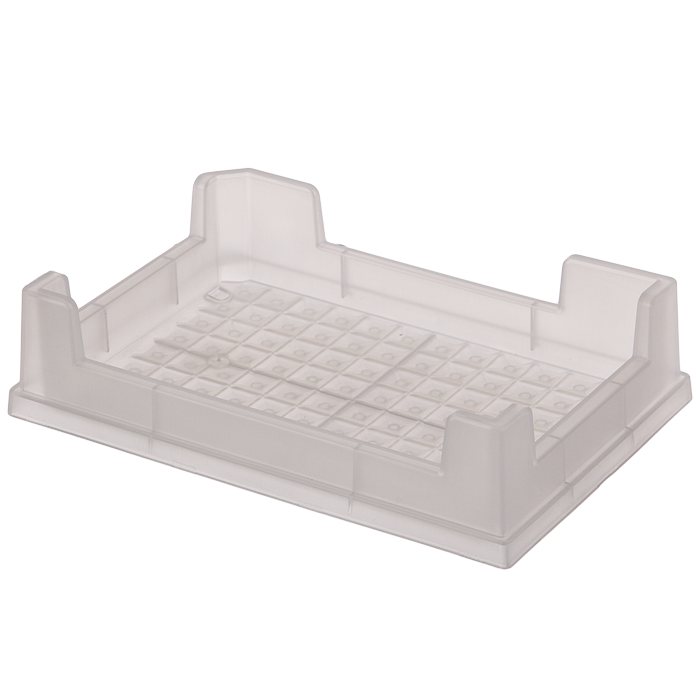

• 1 × 96‑position rack with base

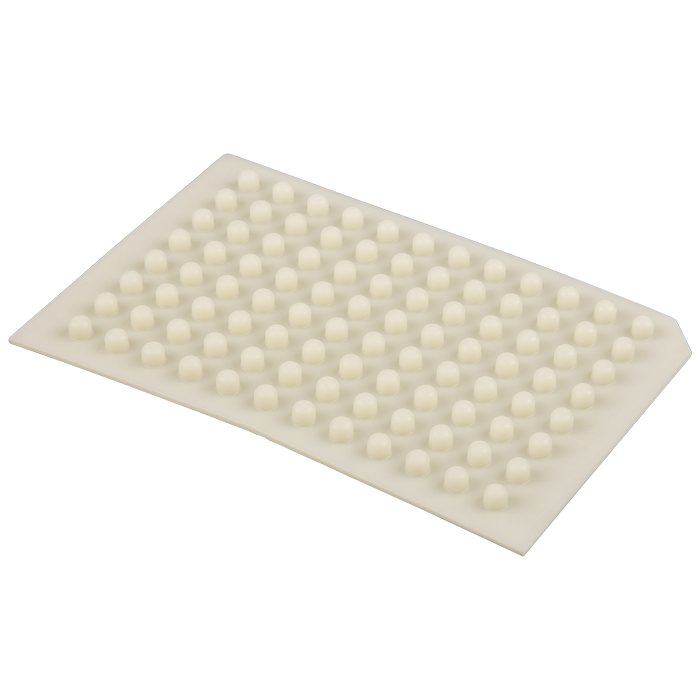

• 1 × Solvent‑resistant polymeric plug‑style sealing mat

Specifications

• Insert Volume: 350 µL

• Format: 96‑position plate configuration

• Glass Type: Type 33 borosilicate (1st hydrolytic, Class A)

• Sealing Mat: Solvent‑resistant polymeric material

• Compatibility: 12 × 32 mm, 2 mL autosampler vials

• Packaging: 1 complete system

Compatibility

• Designed for U‑2D™ micro‑sample workflows

• Inserts compatible with 2 mL (12 × 32 mm) autosampler vials

• Suitable for GC, HPLC, and LC‑MS applications

• Optimized for use with organic solvent systems

Performance and Design Notes

• Plate format increases throughput and organization

• Solvent‑resistant mat improves compatibility with aggressive solvents

• Removable inserts reduce transfer steps and sample loss

• Designed for flexible use between preparation and analysis

Important Notes

• Recommended for use with most HPLC‑compatible organic solvents

• Inserts can be transferred directly to autosampler vials

• Ideal for workflows requiring solvent compatibility and durability

  ---
