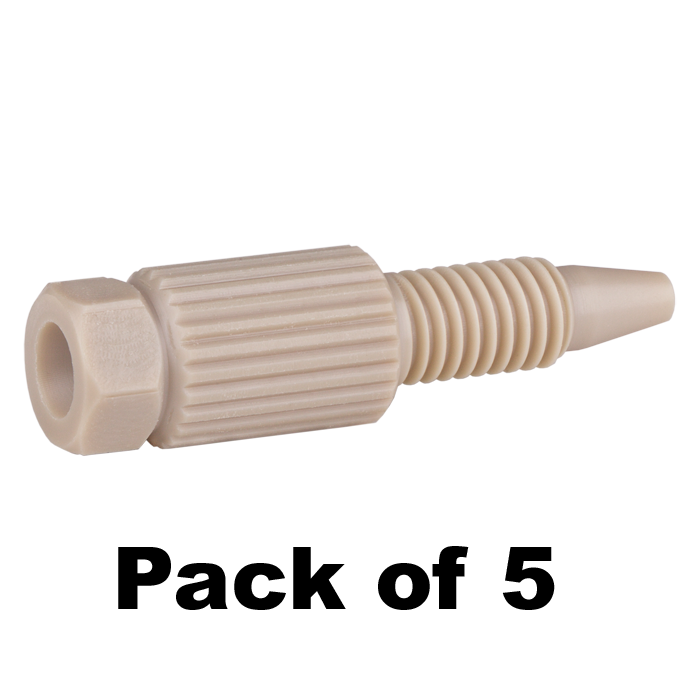

Tubing Connector Fittings, High Pressure, One Piece, 1/16, PEEK, Natural, Small, Combihead/Hex Head with 10-32 Screw Threads. Finger Tighten, ARE-Applied Research brand. 5/PK.
Additional Info:
The 47320‑25‑005 PEEK Tubing Connector Fittings (5/Pack) are high-pressure, one-piece fluidic connection components designed for connecting 1/16 inch OD tubing in HPLC systems. These fittings are compatible with both PEEK and stainless steel tubing and are widely used in high-pressure zones.
The combihead design combines a knurled head for finger tightening with a hex head for wrench tightening, allowing both convenience and controlled torque for secure, leak-free connections.
✅ Key Benefits
High Pressure Performance Designed for use in critical HPLC fluidic connections
Universal 1/16" Compatibility Works with both PEEK and stainless steel tubing
Combihead Design (Knurled + Hex) Enables both finger tightening and wrench-assisted tightening
Standard 10‑32 Threads Compatible with common HPLC system ports
5/Pack Configuration Ideal for routine maintenance and multiple connections
Performance & Design
Material: Natural PEEK
Excellent chemical resistance
Bioinert compatibility
Durable under high pressure
Head Design:
Knurled head (12 mm length) for easy finger tightening
6.3 mm (1/4") hex head for controlled wrench use
Connector Diameter: 7.3 mm
Engineered for:
Leak-free performance
Reliable high-pressure operation
Repeatable installation and removal
System Role & Integration
Connects 1/16" OD tubing to HPLC components
Used in:
Pump connections
Injector interfaces
Column inlet and outlet connections
Suitable for:
High-pressure HPLC flow paths
Bioinert and standard analytical systems
⚠️ Usage Notes
Finger tighten first, then apply wrench tightening if needed
Avoid overtightening to preserve threads and fitting life
Compatible with standard 10‑32 ports
Specifications
Product Type: Tubing Connector Fittings
Material: PEEK (Natural)
Tubing Size: 1/16 inch
Thread Type: 10‑32
Design: Combihead (Knurled + Hex)
Connector Diameter: 7.3 mm
Pressure Range: High pressure (HPLC)
Pack Size: 5 per pack
Brand: ARE‑Applied Research™
